377377247 BLUELINE PTO Shaft Series F21 Lz 1210mm Yoke Ø 25mm and 1 3/8" Z6
377377247 BLUELINE PTO Shaft Series F21 Lz 1210mm Yoke Ø 25mm and 1 3/8" Z6
iPhotos are indicative: the product may differ in some details. Refer to the specifications.
BluelineRef.

377377247 BLUELINE PTO Shaft Series F21 Lz 1210mm Yoke Ø 25mm and 1 3/8" Z6

BLUELINE F21 Series PTO Drive Shaft - L 1210mm (Code 377377247)

€145.00VAT incl.
Coupon -€2.90 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €142.10

Not sure it fits?Message us with your tractor model
WhatsApp
Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The BLUELINE F21 Series drive shaft (1210 mm) is a specialized transmission component. Unlike standard shafts, Profile A features a hub yoke with a 25 mm bore, clamping screw, and 8 mm keyway, specifically designed for fixed mounting on cylindrical driven shafts. Featuring the classic Lemon Profile, it provides reliable power delivery for implements requiring up to 16 HP at 540 rpm.

Technical Specifications

Part Number: 377377247

Series: F21 (Standard Version)

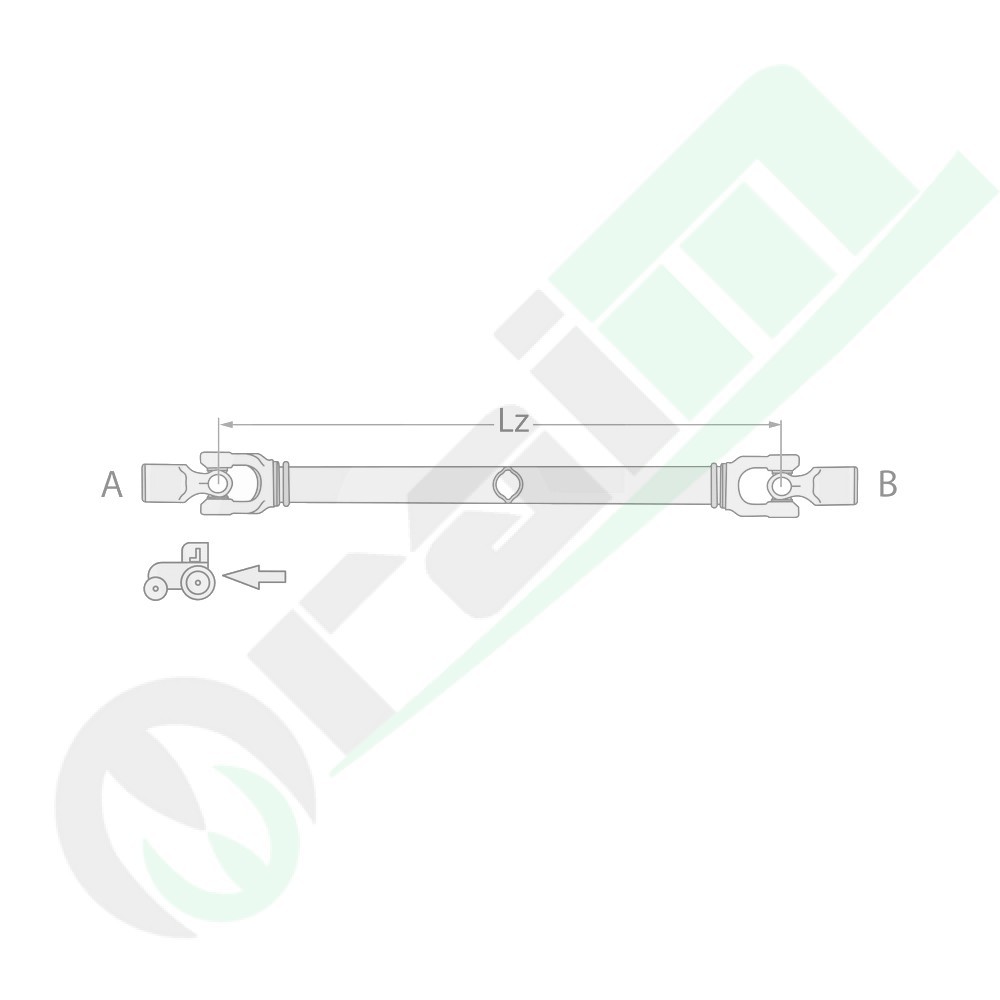

Total Length (Lz): 1210 mm

Profile A (Implement Side): Ø 25 mm, hub with clamping screw and 8 mm keyway

Profile B (Tractor Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 22 x 54.8 mm

Locking System: Push-button / Clamping bolt (G1/G2 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 16 HP (12 kW)

Power at 1000 rpm: Up to 24 HP (18 kW)

Nominal Torque (540 rpm): 210 Nm

Nominal Torque (1000 rpm): 170 Nm

Operating instructions are included. Always ensure the clamping bolt on the 25 mm hub is tightened to the correct torque to prevent shaft damage or slippage during operation.
