37751022934 BLUELINE PTO Drive Shaft Series F22 Lz 510mm for Tractors up to 27HP

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

BluelineRef.

37751022934 BLUELINE PTO Drive Shaft Series F22 Lz 510mm for Tractors up to 27HP

BLUELINE F22 Series PTO Drive Shaft - L 510mm (Code 37751022934)

€89.00VAT incl.

Coupon -€1.78 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €87.22

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The BLUELINE F22 Series drive shaft (510 mm) is an ultra-compact transmission solution designed for medium-power agricultural implements with a short connection point. Featuring reinforced 24 x 61 mm cross kits and a nominal torque of 350 Nm, it provides excellent durability in a space-saving package. The Lemon Profile ensures reliable operation for machinery such as orchard sprayers and compact flail mowers.

Technical Specifications

Part Number: 37751022934

Series: F22 (Standard Version)

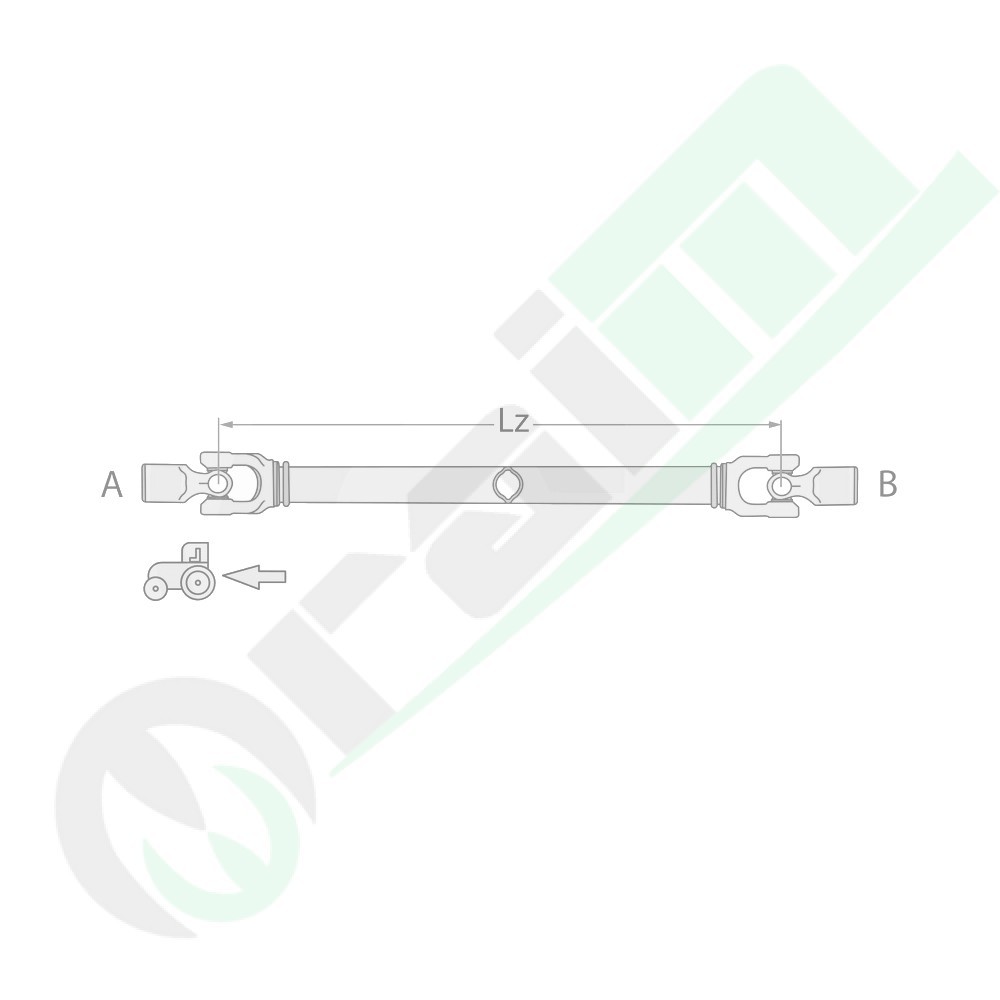

Total Length (Lz): 510 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 24 x 61 mm

Locking System: Push-button / Push-button (G3/G4 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 27 HP (20 kW)

Power at 1000 rpm: Up to 40 HP (30 kW)

Nominal Torque (540 rpm): 350 Nm

Nominal Torque (1000 rpm): 285 Nm

Operating instructions are included. For very short shafts, verify that there is enough telescopic travel to accommodate the implement's movement without bottoming out the tubes during operation.
