377377248 BLUELINE PTO Shaft Series F22 Lz 1210mm Yoke Ø 30mm and 1 3/8" Z6

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

BluelineRef.

377377248 BLUELINE PTO Shaft Series F22 Lz 1210mm Yoke Ø 30mm and 1 3/8" Z6

BLUELINE F22 Series PTO Drive Shaft - L 1210mm (Code 377377248)

€149.00VAT incl.

Coupon -€2.98 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €146.02

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The BLUELINE F22 Series drive shaft (1210 mm) is a specialized transmission component for medium-power agricultural machinery. Its standout feature is the hub yoke with a 30 mm bore (Profile A), equipped with a clamping screw and an 8 mm keyway for fixed mounting. With reinforced 24 x 61 mm cross kits and a nominal torque of 350 Nm, it provides reliable performance for implements requiring an extended connection reach.

Technical Specifications

Part Number: 377377248

Series: F22 (Standard Version)

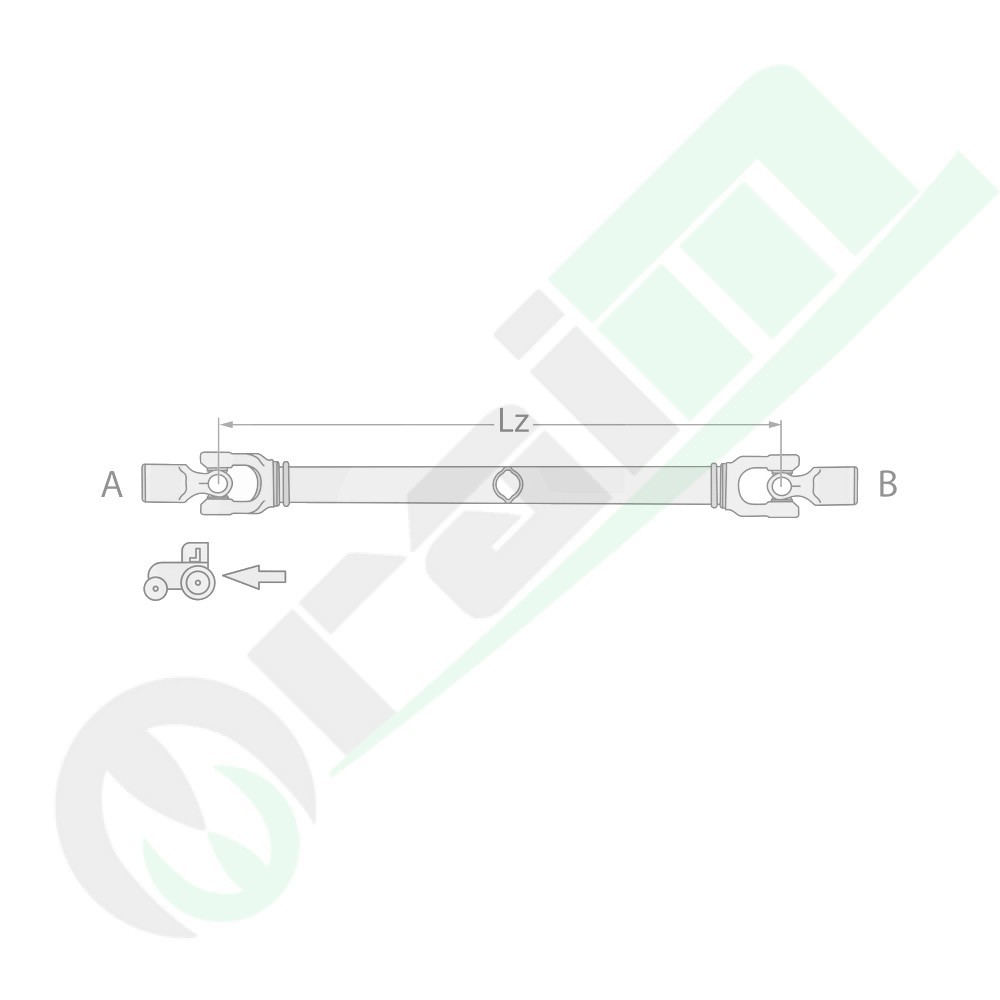

Total Length (Lz): 1210 mm

Profile A (Implement Side): Ø 30 mm, hub with clamping screw and 8 mm keyway

Profile B (Tractor Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 24 x 61 mm

Locking System: Push-button / Clamping bolt (G3/G4 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 27 HP (20 kW)

Power at 1000 rpm: Up to 40 HP (30 kW)

Nominal Torque (540 rpm): 350 Nm

Nominal Torque (1000 rpm): 285 Nm

Operating instructions are included. For the 30 mm hub connection, verify that the keyway is properly aligned and the clamping bolt is tightened to the manufacturer's torque specifications before operation.
