377101023934 BLUELINE PTO Drive Shaft Series F23 Lz 1010mm for Tractors up to 35HP

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

BluelineRef.

377101023934 BLUELINE PTO Drive Shaft Series F23 Lz 1010mm for Tractors up to 35HP

BLUELINE F23 Series PTO Drive Shaft - L 1010mm (Code 377101023934)

€135.00VAT incl.

Coupon -€2.70 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €132.30

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The BLUELINE F23 Series drive shaft (1010 mm) is a high-performance transmission component designed for demanding agricultural tasks. Featuring reinforced 27 x 74.6 mm universal joints and a nominal torque rating of 460 Nm, it provides reliable power transfer for medium-to-high capacity machinery requiring an extended reach. The Lemon Profile telescopic tubes ensure excellent torsional strength for implements such as professional flail mowers and large mist blowers.

Technical Specifications

Part Number: 377101023934

Series: F23 (Standard Version)

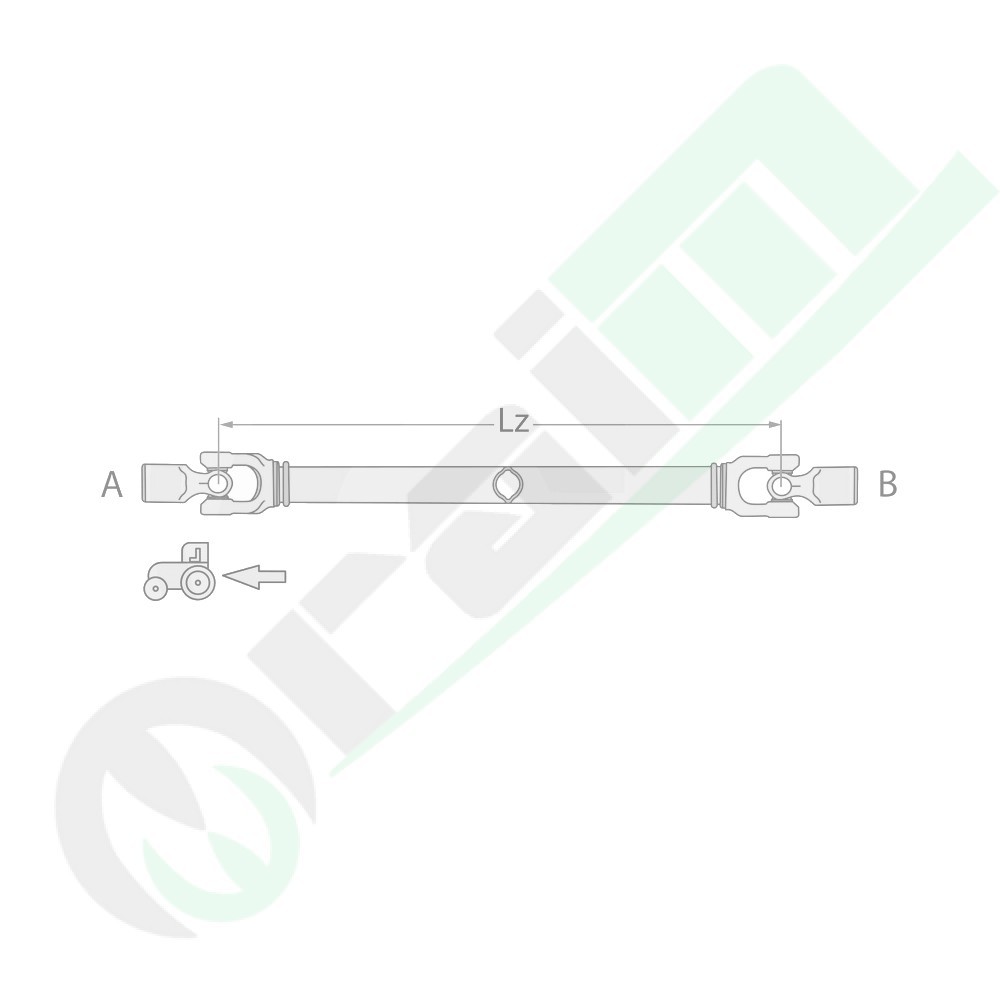

Total Length (Lz): 1010 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 27 x 74.6 mm

Locking System: Push-button / Push-button (G3/G4 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 35 HP (26 kW)

Power at 1000 rpm: Up to 53 HP (39 kW)

Nominal Torque (540 rpm): 460 Nm

Nominal Torque (1000 rpm): 370 Nm

Operating instructions are included. For 1-meter shafts, always ensure proper telescopic tube overlap and secure the safety chains to rigid mounting points to prevent accidental disconnection or excessive vibration under high torque.
