3770121024956 BLUELINE PTO Drive Shaft Series F24 Lz 1210mm for Tractors up to 53HP

BLUELINE F24 Series PTO Drive Shaft - L 1210mm (Code 3770121024956)

€179.90VAT incl.

Coupon -€3.60 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €176.30

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The BLUELINE F24 Series drive shaft (1210 mm) is a professional-grade transmission component built for high-power agricultural implements. Featuring heavy-duty 32 x 76 mm universal joints and G5/G6 coupling, it is designed to handle a nominal torque of 690 Nm. The Lemon Profile telescopic tubes provide superior strength for high-torque applications such as heavy rotary harrows, large flail mowers, and diet feeders.

Technical Specifications

Part Number: 3770121024956

Series: F24 (Standard Version)

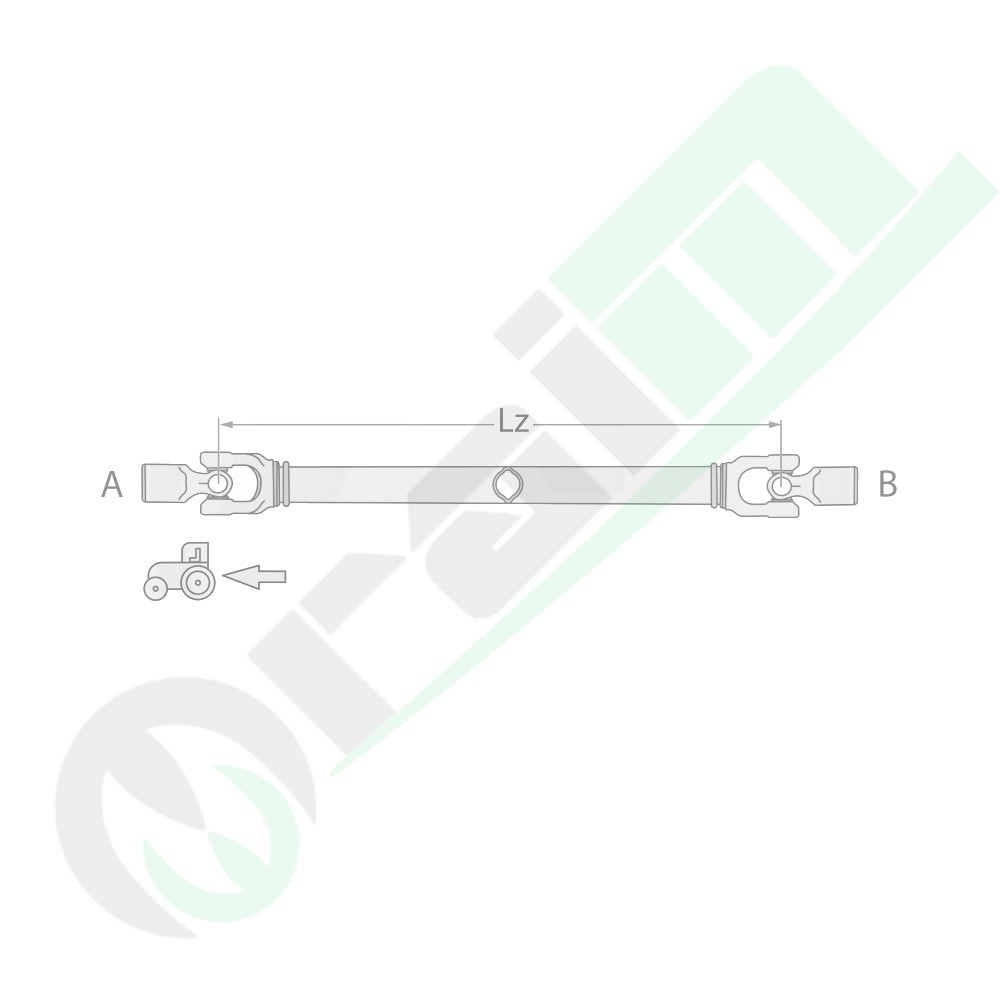

Total Length (Lz): 1210 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 32 x 76 mm

Locking System: Push-button / Push-button (G5/G6 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 53 HP (39 kW)

Power at 1000 rpm: Up to 83 HP (61 kW)

Nominal Torque (540 rpm): 690 Nm

Nominal Torque (1000 rpm): 580 Nm

Operating instructions are included. For high-torque F24 shafts, always ensure proper telescopic overlap and that the safety chains are secured to rigid mounting points to prevent disconnection or accidents under heavy load.
