377056024956 BLUELINE PTO Drive Shaft Series F24 Lz 560mm for Tractors up to 53HP

BLUELINE F24 Series PTO Drive Shaft - L 560mm (Code 377056024956)

€185.00VAT incl.
Coupon -€3.70 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €181.30

Not sure it fits?Message us with your tractor model
WhatsApp
Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The BLUELINE F24 Series drive shaft (560 mm) is an ultra-compact, high-power transmission component. Engineered for high-load agricultural implements, it features robust 32 x 76 mm universal joints and G5/G6 coupling. Delivering a nominal torque of 690 Nm, the Lemon Profile tubes ensure structural integrity for equipment like heavy-duty compact rotary tillers and forestry mulchers where space is limited.

Technical Specifications

Part Number: 377056024956

Series: F24 (Standard Version)

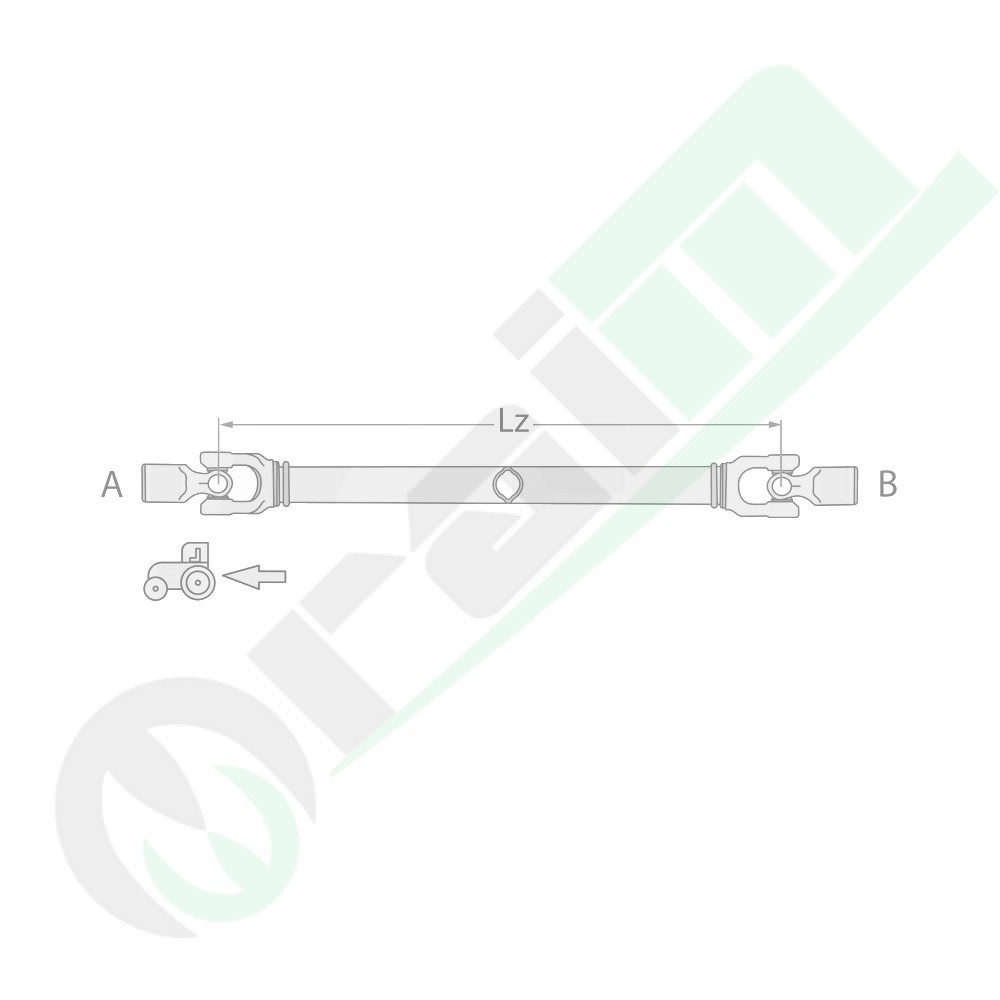

Total Length (Lz): 560 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 32 x 76 mm

Locking System: Push-button / Push-button (G5/G6 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 53 HP (39 kW)

Power at 1000 rpm: Up to 83 HP (61 kW)

Nominal Torque (540 rpm): 690 Nm

Nominal Torque (1000 rpm): 580 Nm

Operating instructions are included. For F24 series shafts, regular greasing of the 32 mm cross kits is mandatory to maintain high-torque performance and durability.
