377101024956 BLUELINE PTO Drive Shaft Series F24 Lz 1010mm for Tractors up to 53HP

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

BluelineRef.

377101024956 BLUELINE PTO Drive Shaft Series F24 Lz 1010mm for Tractors up to 53HP

BLUELINE F24 Series PTO Drive Shaft - L 1010mm (Code 377101024956)

€155.00VAT incl.

Coupon -€3.10 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €151.90

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The BLUELINE F24 Series drive shaft (1010 mm) is a professional-grade transmission component engineered for heavy-duty agricultural operations. Featuring robust 32 x 76 mm universal joints and G5/G6 coupling, it is built to sustain a nominal torque of 690 Nm. The Lemon Profile telescopic tubes provide high torsional rigidity over a one-meter reach, making it ideal for heavy rotary harrows, large-scale manure spreaders, and industrial-sized chippers.

Technical Specifications

Part Number: 377101024956

Series: F24 (Standard Version)

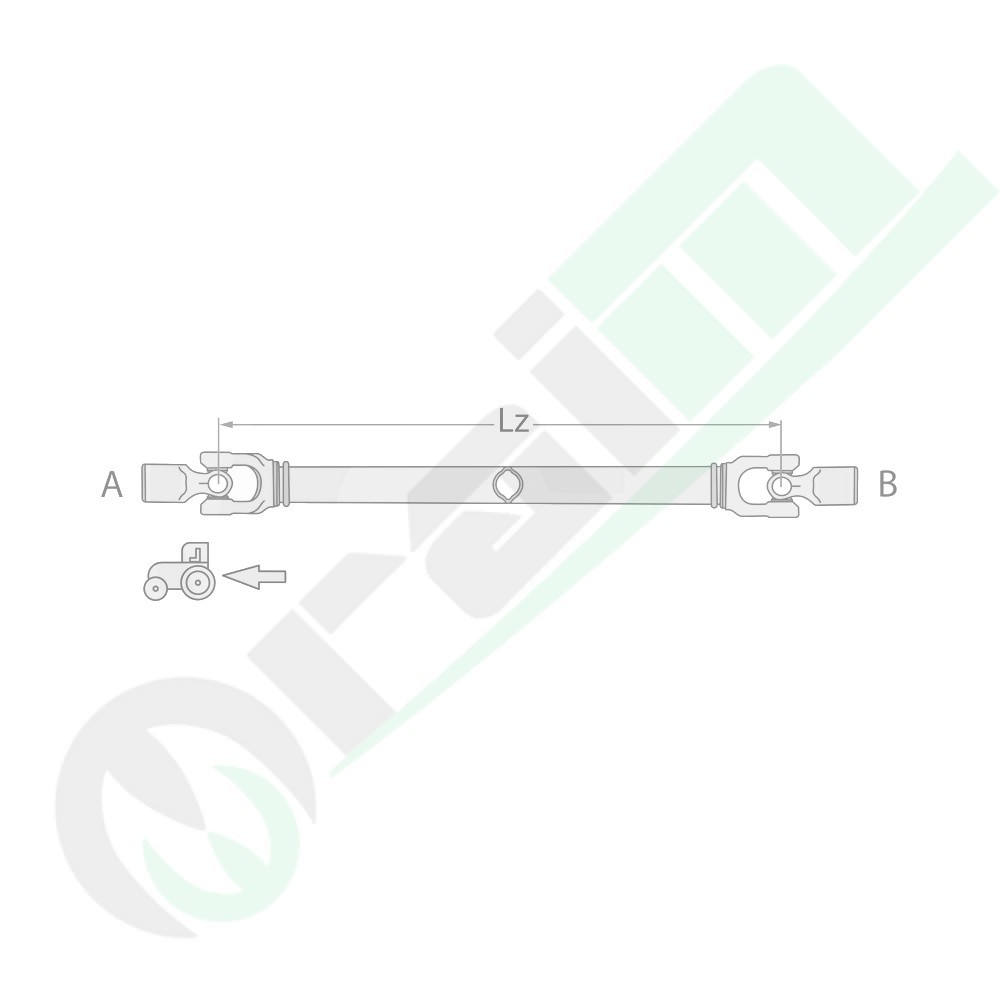

Total Length (Lz): 1010 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 32 x 76 mm

Locking System: Push-button / Push-button (G5/G6 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 53 HP (39 kW)

Power at 1000 rpm: Up to 83 HP (61 kW)

Nominal Torque (540 rpm): 690 Nm

Nominal Torque (1000 rpm): 580 Nm

Operating instructions are included. For high-torque 1010 mm shafts, always verify proper telescopic overlap and that safety chains are secured to prevent the guard from spinning, ensuring safe and efficient power delivery under heavy load.
