377377430 BLUELINE PTO Drive Shaft Series F25 Lz 560mm for Tractors up to 90HP

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

BluelineRef.

377377430 BLUELINE PTO Drive Shaft Series F25 Lz 560mm for Tractors up to 90HP

BLUELINE F25 Series PTO Drive Shaft - L 560mm (Code 377377430)

€259.90VAT incl.

Coupon -€5.20 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €254.70

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The BLUELINE F25 Series drive shaft (560 mm) is a high-performance transmission component engineered for heavy-duty industrial agricultural implements. Featuring the advanced Star Profile for maximum surface contact and robust 36 x 89 mm universal joints, it is built to sustain a nominal torque of 1165 Nm. This compact model is the professional's choice for forestry mulchers, heavy-duty rotary tillers, and any machinery requiring high power delivery from 100+ HP tractors in a short-coupled configuration.

Technical Specifications

Part Number: 377377430

Series: F25 (Standard Version)

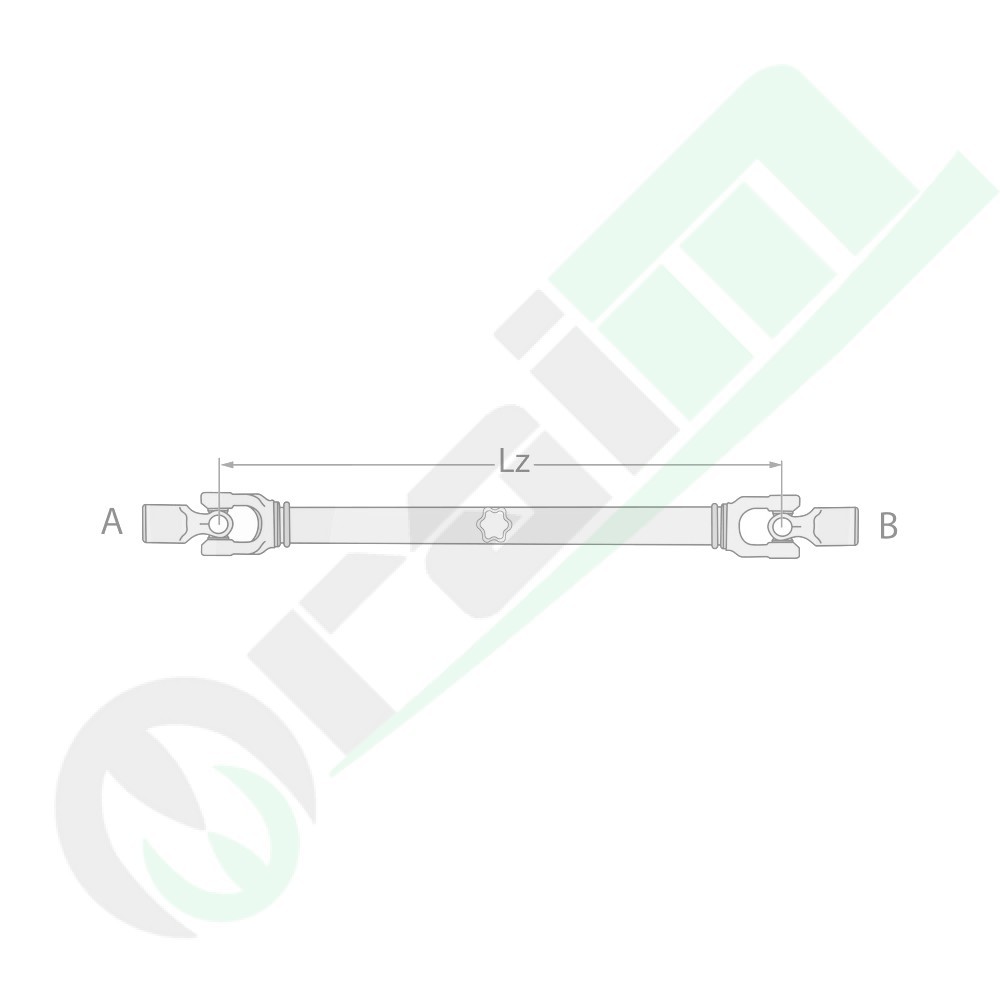

Total Length (Lz): 560 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 36 x 89 mm

Locking System: Push-button / Push-button (G7/G8 Coupling)

Tube Profile: Star Profile

Performance Data

Power at 540 rpm: Up to 90 HP (66 kW)

Power at 1000 rpm: Up to 140 HP (102 kW)

Nominal Torque (540 rpm): 1165 Nm

Nominal Torque (1000 rpm): 970 Nm

Operating instructions are included. For F25 series shafts, the high torque levels necessitate frequent greasing of the 36 mm cross kits and careful inspection of the safety guards to ensure operator safety and component longevity.
