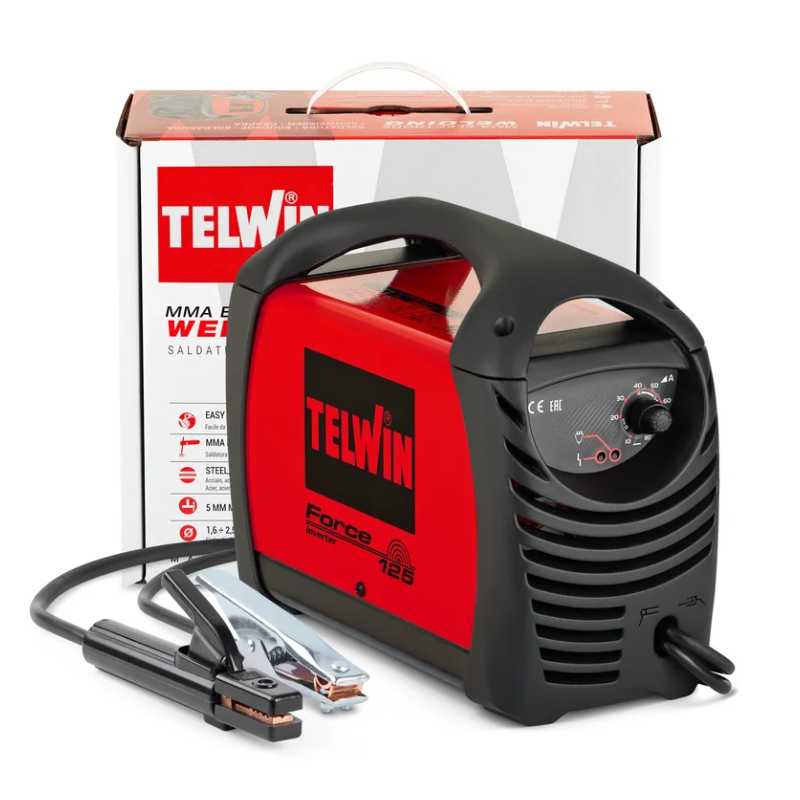

Telwin FORCE 125 MMA Inverter Welder – 230V

Telwin FORCE 125 MMA Inverter Welding Machine – 230V

Product code

815872

Certification

✅ Compliant with the EN60974-1 standard for MMA welding in direct current (DC)

Main features

✔ MMA electrode inverter welding machine in direct current (DC)

✔ Wide current adjustment range: 10 - 80 A

✔ High stability of the welding current even with variations in the mains voltage

✔ Arc Force, Hot Start, Anti-Stick devices for continuous and uninterrupted welding

✔ Thermostatic, overvoltage, undervoltage, overcurrent protection

✔ Complete with accessories for MMA welding and cardboard case

Description

• Single-phase power supply 230 V, 50 / 60 Hz

• Easy to transport thanks to the compact and lightweight design

• IP21 protection rating, resistance to dust and humidity

• Also works with motor generators (tolerance +/- 15%)

• Supported electrodes: 1.6 - 2.5 mm (DC)

Safety and protection

? Thermostatic protection system against overheating

? Protection against overvoltage, undervoltage and overcurrent

? IP21 protection degree against dust and humidity

Technologies and materials

✔ 82% efficiency for optimum efficiency

✔ Power factor (cosφ) of 0.6 for stable and precise welding

✔ Rutile, basic, stainless steel, cast iron electrodes supported

Sectors of use

? Professional workshops and maintenance applications

? Welding work for repairs and artisanal production

? Light industrial applications

Mains voltage

230V (single phase)

Frequency

50 / 60 Hz

DC current regulation range

10 - 80 A

Max. DC current EN60974-1

80 A @ 5%

Max. no-load voltage

72 V

Max. absorbed current

15 A

Max. absorbed power

2.3 kW

Minimum motor generator power

3 kW

Efficiency

82 %

Power factor (cosφ)

0.6

Ø supported electrodes

1.6 - 2.5 mm

Protection degree

IP21

Dimensions

32 x 37 x 14.5 cm

Weight

3.10 kg
