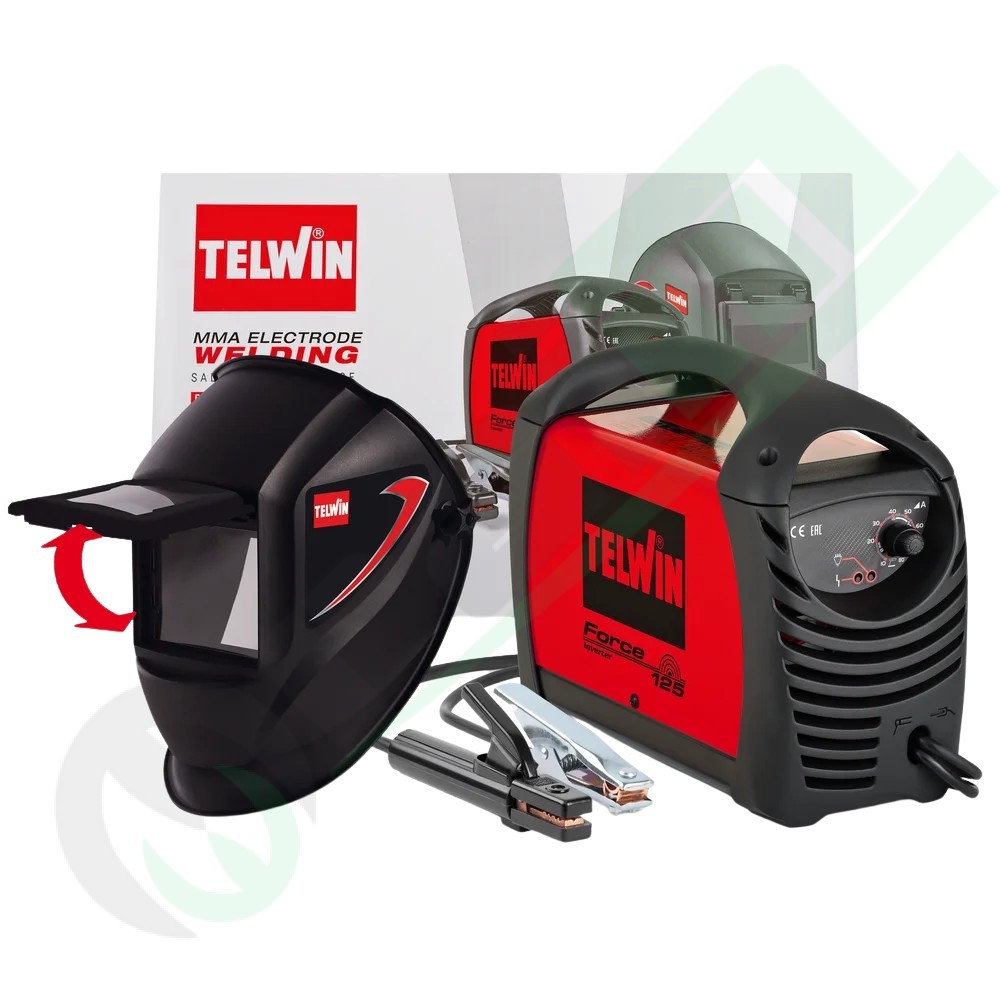

Telwin FORCE 125 + Mask - Inverter MMA Stick Electrode Welder (DC) 80A

The **Telwin FORCE 125 + Mask** is an 80 A DC inverter stick electrode (MMA) welding machine, perfect for hobbyists and light-duty jobs requiring maximum convenience. This package is ready-to-use, including standard accessories and a **passive helmet/mask**. Inverter technology ensures high arc stability, low consumption, and compatibility with 3 kW motogenerators. It is lightweight, compact, and handles electrodes up to 2.5 mm.

Key Features

• Included Accessories: Complete with all welding accessories and a **passive helmet/mask** for immediate protection.
• Welding Type: MMA Stick Electrode in Direct Current (DC), 10 - 80 A.
• Usable Electrodes: Handles rutile, basic, stainless steel, cast iron, etc., electrodes with diameters from 1.6 mm to **2.5 mm**.
• Advanced Arc Control: Integrated **Arc Force, Hot Start, and Anti-Stick** devices for easy striking and stable welding.
• Portability: Extremely lightweight and compact design for easy transport.
• Generator Compatibility: Suitable for use with a motogenerator (minimum power required: 3 kW).
• Protection: Features thermostatic, overvoltage, undervoltage, and overcurrent protection.

Technical Specifications

• CODE: 815861
• Single-Phase Mains Voltage: 230 V
• Mains Frequency: 50 / 60 Hz
• DC Current Regulation Range: 10 - 80 A
• Max Current DC EN60974-1: 80 A @ 5%
• Duty Cycle (Use at 20°C): 50% @ 80A
• Max No-Load Voltage: 72 V
• Max Absorbed Power: 2.3 kW
• Minimum Motogenerator Power: 3 kW
• Electrode Diameter in DC: 1.6 - 2.5 mm
• Fuse: 10 A
• Protection Grade: IP21
• Dimensions (LxWxH): 30 x 12.5 x 22.5 cm (11.8 x 4.9 x 8.9 inches)
