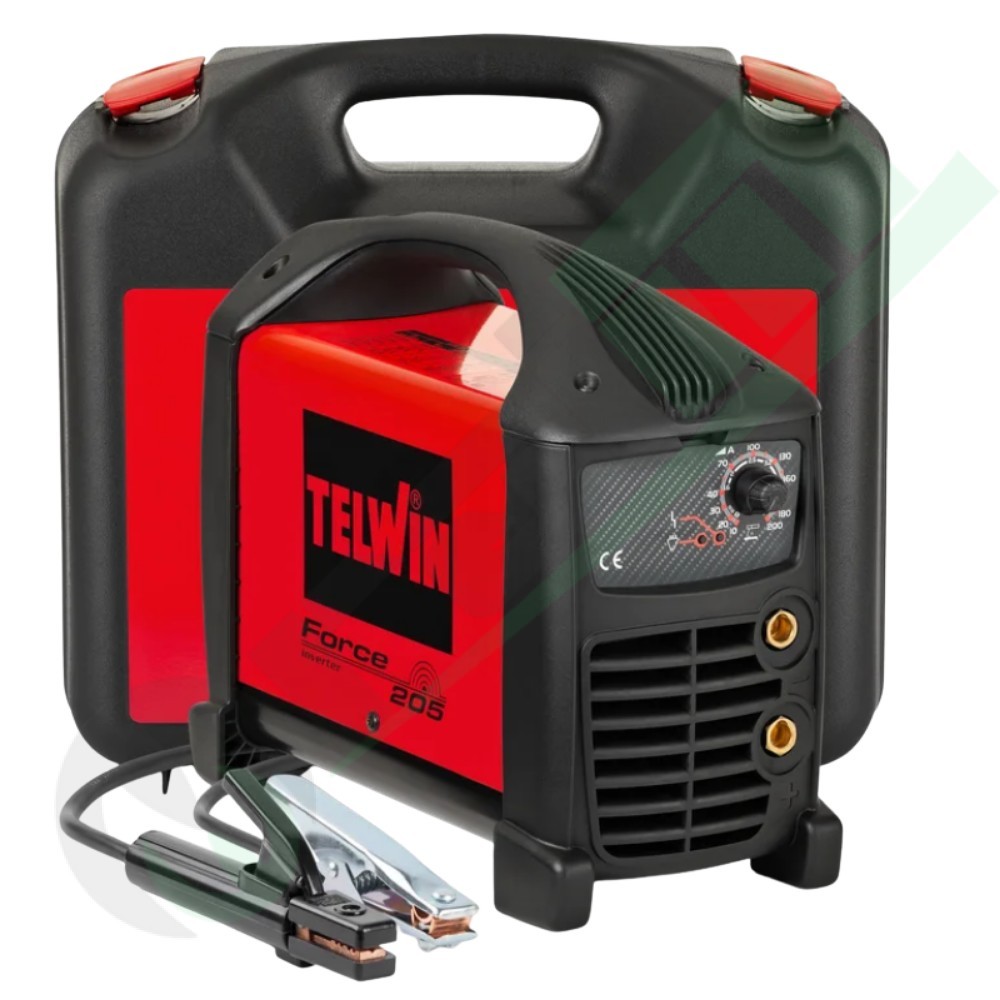

Telwin FORCE 205 + Case - Inverter MMA Stick Electrode Welder (DC) 200A

The **Telwin FORCE 205** is the top model in the series, a direct current (DC) inverter stick electrode (MMA) welding machine delivering up to **200 A**. It's the ideal choice for professionals requiring maximum power and high duty cycles (95% at 180A) with electrodes up to **4 mm**. Its lightweight build, low-consumption inverter technology, and arc stability make it a reliable tool for any application. It is supplied with accessories and a practical **plastic carrying case**.

Key Features

• Welding Type: MMA Stick Electrode in Direct Current (DC).
• Maximum Power: Current regulation range up to **200 A**.
• Usable Electrodes: Handles rutile, basic, stainless steel, cast iron, etc., electrodes with diameters from 1.6 mm up to **4 mm**.
• Advanced Arc Control: Integrated Arc Force, Hot Start, and Anti-Stick devices for easy striking and effective sticking prevention.
• Motogenerator Compatibility: Suitable for use with a motogenerator (230V +/- 15% voltage stability required), minimum power: 8 kW.
• Stability and Protection: High welding current stability; features thermostatic, overvoltage, undervoltage, and overcurrent protection.
• Protection Rating: Higher protection degree of **IP23**, suitable for outdoor use.

Technical Specifications

• CODE: 816238
• Single-Phase Mains Voltage: 230 V
• Mains Frequency: 50 / 60 Hz
• DC Current Regulation Range: 10 - 200 A
• Max Current DC EN60974-1: 180 A @ 20%
• Duty Cycle (Use at 20°C): 95% @ 180A
• Max No-Load Voltage: 82 V
• Max Absorbed Power: 5.6 kW
• Minimum Motogenerator Power: 8 kW
• Electrode Diameter in DC: 1.6 - 4 mm
• Fuse: 16 A
• Protection Grade: IP23
• Dimensions (LxWxH): 32.5 x 42.5 x 17.5 cm (12.8 x 16.7 x 6.9 inches)
