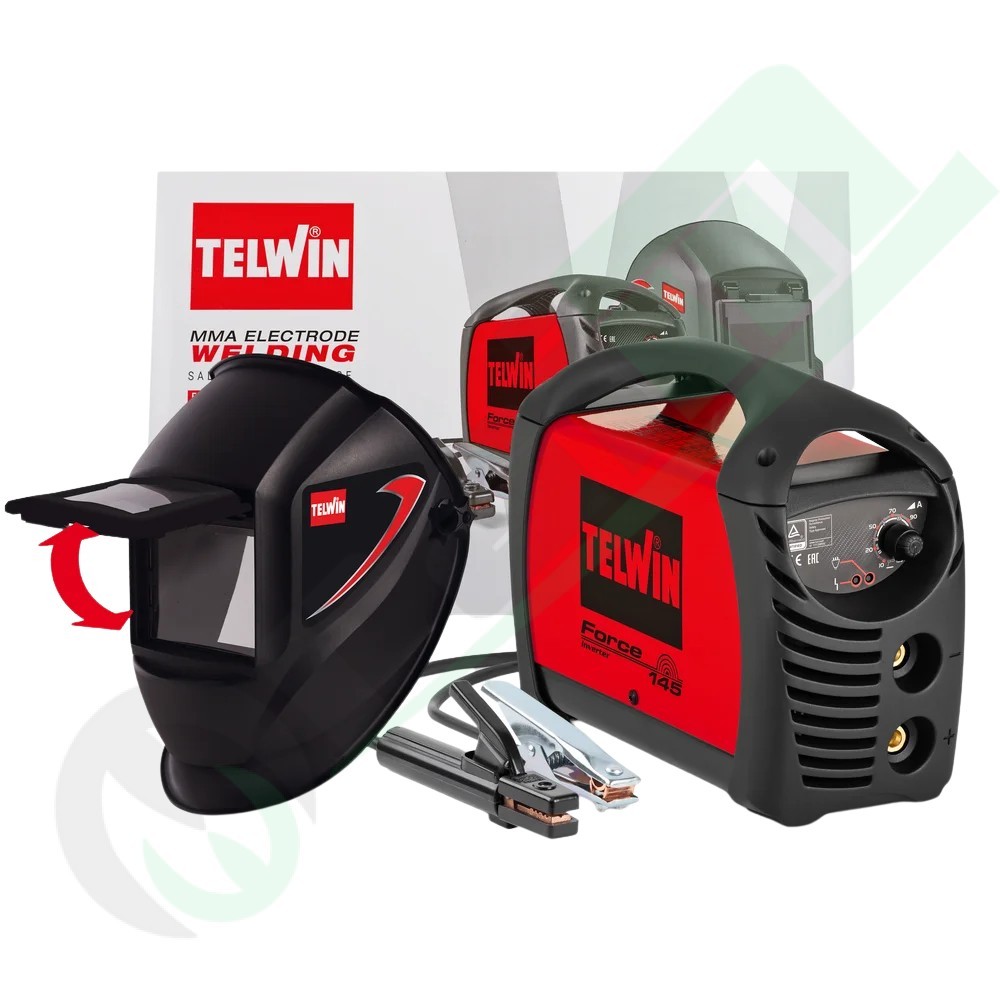

Telwin FORCE 145 + Auto-Darkening Mask - Inverter MMA Stick Electrode Welder (DC) 130A

The **Telwin FORCE 145** is a 130 A DC inverter stick electrode (MMA) welding machine, enhanced by the inclusion of an **auto-darkening welding helmet**. This combination is ideal for welders who require greater power (electrodes up to 3.2 mm) and maximum visual safety. Inverter technology ensures high arc stability and generator compatibility, while the professional auto-darkening mask protects the operator with an ultra-fast darkening speed of 0.4ms.

Key Kit Features

• Professional Auto-Darkening Helmet: Includes a helmet with fast darkening (0.4ms), 2 sensors, DIN11 shade, and certified optical class 1/1/1/2.
• Helmet Versatility: Ideal not only for MMA but also for wire (MIG/MAG) and TIG welding (currents >5A).
• Welder Power: MMA Stick Electrode in Direct Current (DC), 10 - 130 A.
• Usable Electrodes: Handles rutile, basic, stainless steel, cast iron, etc., electrodes with diameters from 1.6 mm to **3.2 mm**.
• Advanced Arc Control: Integrated **Arc Force, Hot Start, and Anti-Stick** devices.
• Generator Compatibility: Compatible with motogenerators (minimum power required: 5 kW).
• Portability: Lightweight and compact design for easy transport.

Technical Specifications (Welder Unit)

• CODE: 815862
• Single-Phase Mains Voltage: 230 V
• Mains Frequency: 50 / 60 Hz
• DC Current Regulation Range: 10 - 130 A
• Max Current DC EN60974-1: 125 A @ 7%
• Duty Cycle (Use at 20°C): 60% @ 125A
• Max No-Load Voltage: 72 V
• Max Absorbed Power: 3.5 kW
• Minimum Motogenerator Power: 5 kW
• Electrode Diameter in DC: 1.6 - 3.2 mm
• Protection Grade: IP21
• Dimensions (LxWxH): 30 x 12.5 x 22.5 cm (11.8 x 4.9 x 8.9 inches)
