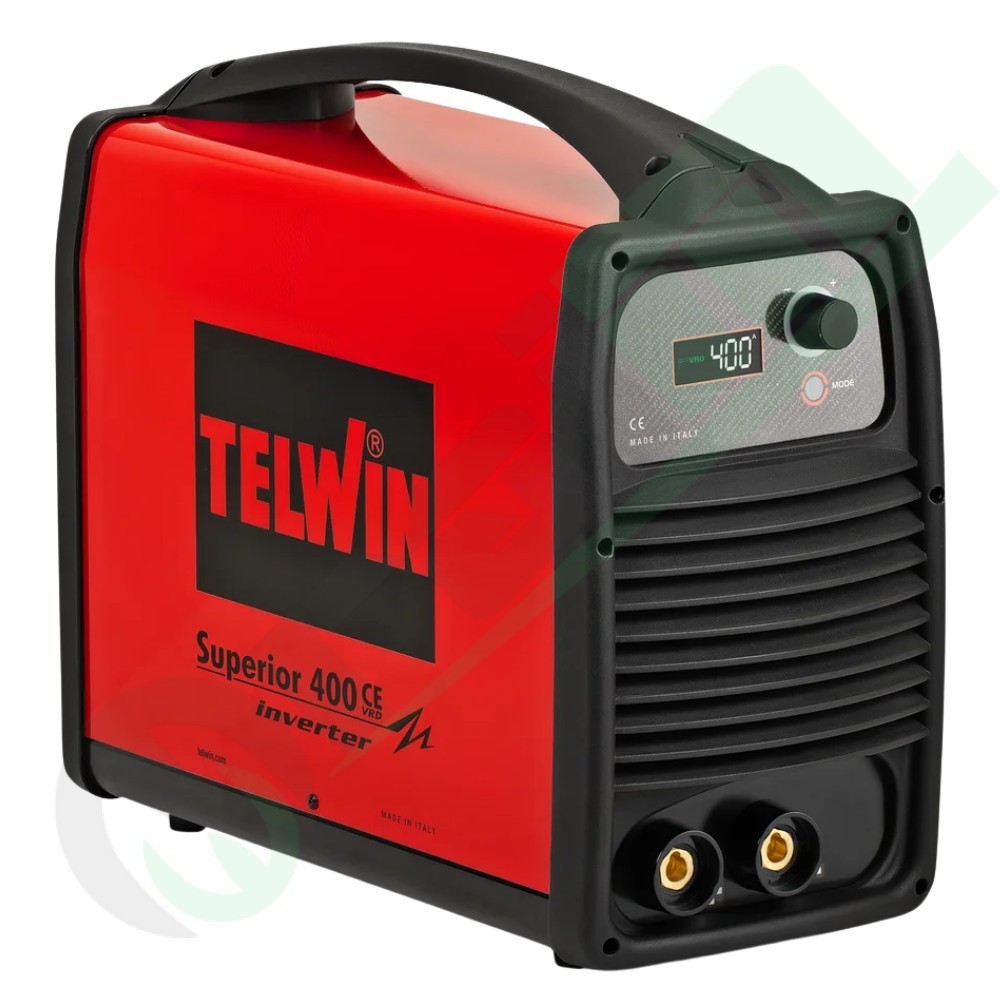

Telwin SUPERIOR 400 CE VRD - Multi-Process Inverter Welder 400A

The **Telwin SUPERIOR 400 CE VRD** is an industrial-grade multi-process inverter welding machine with a maximum output of **400 A**. Ideal for heavy-duty applications, it supports MMA stick electrode, TIG-LIFT in direct current (DC), and the **Gouging** function (with carbon electrodes). It is specifically engineered for use with **cellulosic electrodes** and handles diameters up to **8 mm**. The system includes the **VRD (Voltage Reduction Device)** safety feature, **MMA PULSE** mode, and a clear **LCD display** for parameter visualization.

Multi-Process and Safety Features

• Processes: MMA (Stick Electrode), DC TIG-LIFT (Scratch Start), and **Gouging** (with carbon electrodes).
• Safety: Equipped with the **VRD (Voltage Reduction Device)** for maximum safety in damp environments.
• MMA Mode: Features both direct current (DC) and **Pulsed DC (MMA PULSE)** operation for enhanced control.
• Electrode Capability: Excellent for **cellulosic electrodes**; handles rutile, basic, stainless steel, cast iron, and aluminum up to **8 mm**.
• Advanced Control: Automatic adjustment of Arc Force and Hot Start; Anti-stick protection.
• Design: Robust and compact (IP23). Dedicated tunnel ventilation system protects electronic components from dirt and dust.

Technical Specifications

• CODE: 816156
• Three-Phase Mains Voltage: 230 V / 400 V
• Mains Frequency: 50 / 60 Hz
• DC Current Regulation Range: 30 - 320 A (230V) / 30 - 400 A (400V)
• Max Current DC EN60974-1: 300 A @ 40% (230V) / 400 A @ 40% (400V)
• Max No-Load Voltage: 100 V / 100 V
• Max Absorbed Power: 11.4 kW (230V) / 16.6 kW (400V)
• Fuse: 25 A (230V) / 20 A (400V)
• Electrode Diameter in DC: 1.6 - 8 mm
• Protection Grade: IP23
• Dimensions (LxWxH): 53 x 24 x 45 cm (20.9 x 9.4 x 17.7 inches)

Note: Values relate to the power supply voltage. The first value is for 230V, the second for 400V.
