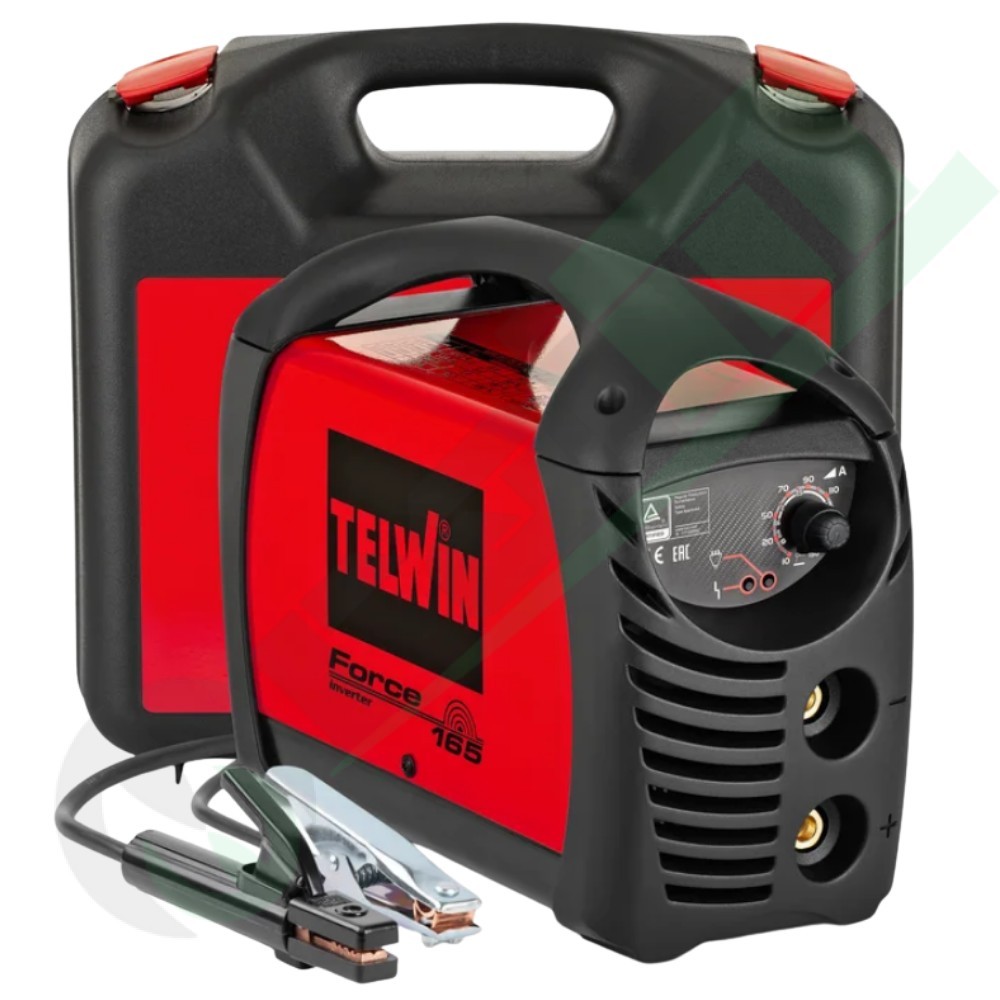

Telwin FORCE 165 + Case - Inverter MMA Stick Electrode Welder (DC) 150A

The **Telwin FORCE 165** is a powerful 150 A direct current (DC) inverter stick electrode (MMA) welding machine, ideal for more demanding and professional welding jobs. Thanks to inverter technology, it ensures high arc stability, low consumption, and the ability to weld with electrodes up to **4 mm**. Extremely lightweight and compact, it is supplied with all accessories and a durable **plastic carrying case** for easy transport and storage.

Key Features

• Welding Type: MMA Stick Electrode in Direct Current (DC).
• Usable Electrodes: Handles rutile, basic, stainless steel, cast iron, etc., electrodes with diameters from 1.6 mm up to 4 mm.
• Advanced Arc Control: Integrated Arc Force, Hot Start, and Anti-Stick devices for excellent performance and ease of use.
• Portability: Compact and lightweight design. A durable plastic carrying case is included.
• Motogenerator Compatibility: Suitable for use with a motogenerator (230V +/- 15% voltage stability required), minimum power: 6 kW.
• Stability and Protection: High welding current stability; features thermostatic, overvoltage, undervoltage, and overcurrent protection.

Technical Specifications

• CODE: 815857
• Single-Phase Mains Voltage: 230 V
• Mains Frequency: 50 / 60 Hz
• DC Current Regulation Range: 10 - 150 A
• Max Current DC EN60974-1: 140 A @ 7%
• Duty Cycle (Use at 20°C): 60% @ 150A
• Max No-Load Voltage: 72 V
• Max Absorbed Power: 4.1 kW
• Minimum Motogenerator Power: 6 kW
• Electrode Diameter in DC: 1.6 - 4 mm
• Fuse: 16 A
• Protection Grade: IP21
• Dimensions (LxWxH): 38 x 42 x 17 cm (15 x 16.5 x 6.7 inches)
