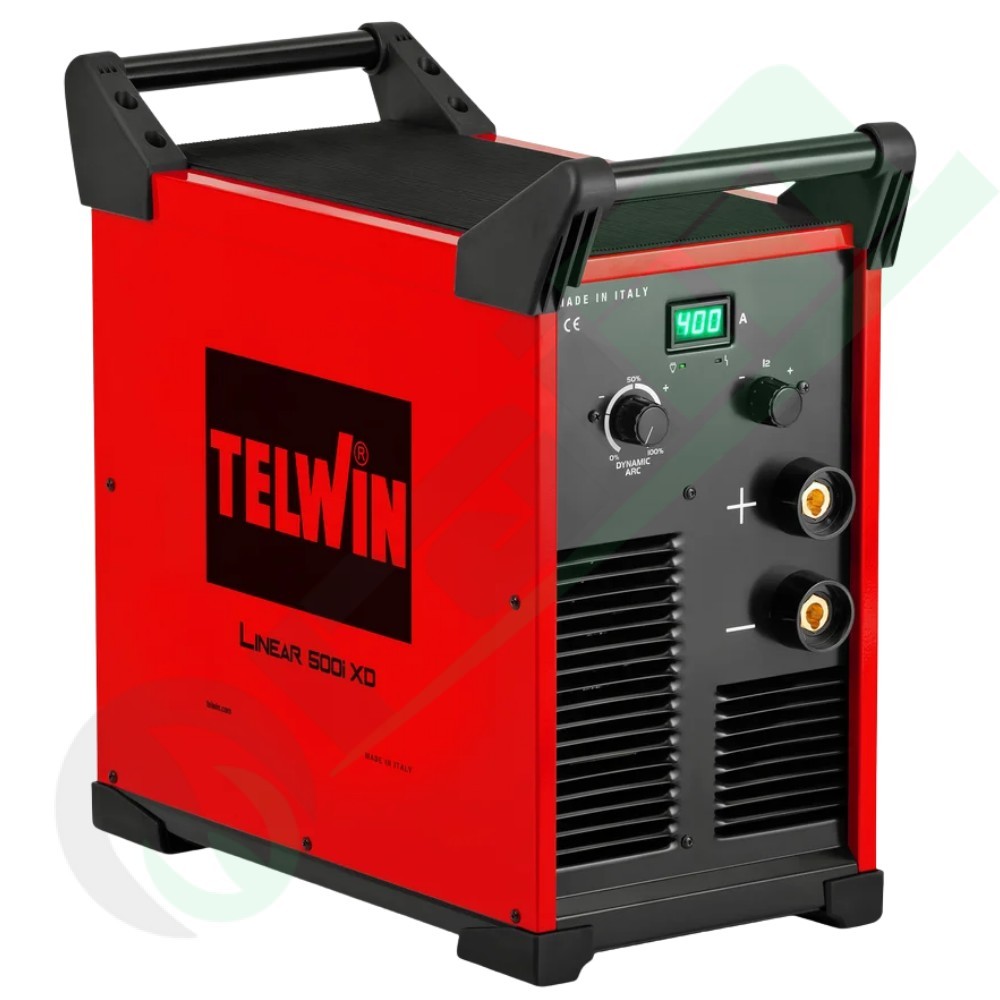

Telwin LINEAR 500i XD - Inverter MMA Stick Electrode Welder (DC) 400A

The **Telwin LINEAR 500i XD** is an ultra-high-power DC inverter stick electrode (MMA) welding machine, ideal for industrial work and heavy-duty cycles. The **XD (eXtra Duty)** designation ensures a high Duty Cycle (400 A at 60%), supporting continuous use with electrodes up to **6 mm**. Featuring dual three-phase voltage (230V/400V), a digital display, and synergic settings, it is extremely versatile and is also prepared for **Gouging** applications.

Key Features

• Maximum Power: 400 A (at 400 V), ideal for continuous duty cycles (eXtra Duty).
• Dual Voltage: Operation on three-phase 230 V or 400 V mains supply.
• Usable Electrodes: Handles rutile, basic, stainless steel, cast iron, etc., electrodes with diameters from 1.6 mm up to **6 mm**.
• Smart Control: **Synergic** regulation of Arc Force and Hot Start based on the electrode type, along with the Anti-stick device.
• Display: Digital display shows the set welding current.
• Environmental Resistance: Tunnel ventilation system (dirt/dust resistant) preserves electronic components for increased durability. Robust, shock, and dust resistant (IP23).
• Additional Function: Prepared for **Gouging**.

Technical Specifications

• CODE: 816185
• Three-Phase Mains Voltage: 230 V / 400 V
• Mains Frequency: 50 / 60 Hz
• DC Current Regulation Range: 20 - 320 A (230V) / 20 - 400 A (400V)
• Max Current DC EN60974-1 (60%): 300 A (230V) / 400 A (400V)
• Max No-Load Voltage: 93 V (230V) / 67 V (400V)
• Max Absorbed Power: 11.8 kW (230V) / 16.6 kW (400V)
• Minimum Motogenerator Power: 17 kW (230V) / 25 kW (400V)
• Electrode Diameter in DC: 1.6 - 6 mm
• Efficiency: 90 %
• Protection Grade: IP23
• Dimensions (LxWxH): 54.6 x 27.4 x 50 cm (21.5 x 10.8 x 19.7 inches)

Note: Values relate to the power supply voltage. The first value is for 230V, the second for 400V.
