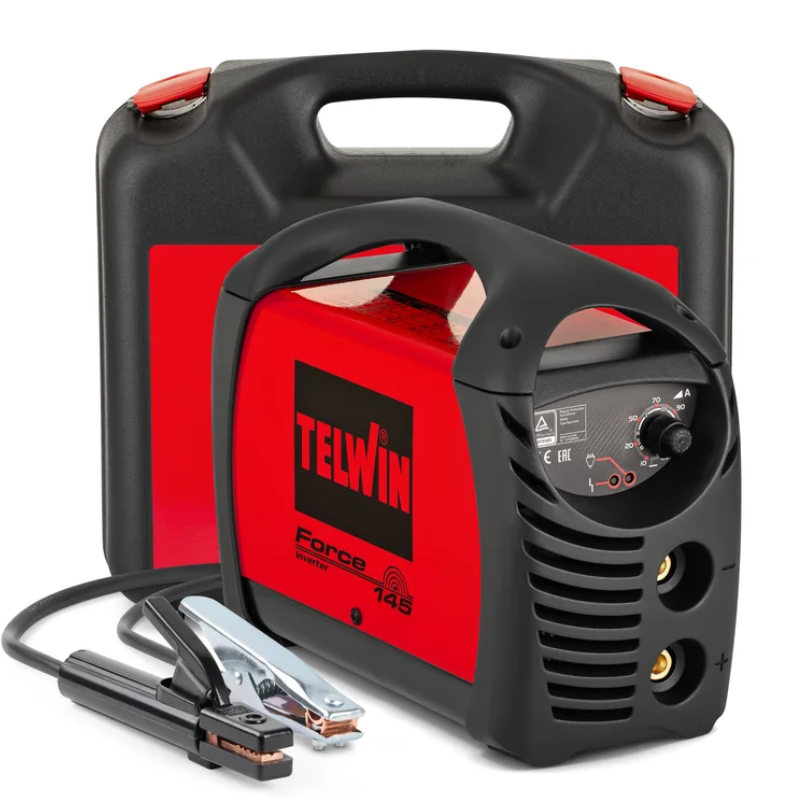

Telwin FORCE 145 MMA Inverter Welder – 230V with Plastic Case

Telwin FORCE 145 MMA Inverter Welding Machine – 230V with Plastic Case

Product code

815856

Certification

✅ Compliant with the EN60974-1 standard for MMA welding in direct current (DC)

Main features

✔ MMA electrode inverter welding machine in direct current (DC)

✔ Wide current adjustment range: 10 - 130 A

✔ High stability of the welding current with variations in mains voltage

✔ Arc Force, Hot Start and Anti-Stick devices for reliable and safe performance

✔ Integrated protections: thermostatic, overvoltage, undervoltage, overcurrent

✔ Compatible with motor generators (tolerance ±15%)

✔ Supplied complete with accessories for MMA welding and rigid plastic case

Safety and protection

? Protection system against overheating and instability of the mains electrical

? IP21 protection rating against dust and light splashes of water

? Protected components for working in semi-industrial environments

Technologies and materials

✔ 82% efficiency for greater energy efficiency

✔ Power factor (cosφ) of 0.6 for consumption optimization

✔ Supports different types of electrodes: rutile, basic, stainless steel, cast iron

Sectors of use

? Workshops, maintenance systems, light carpentry

? Industrial applications and professional DIY

? Use on construction sites with generators

Mains voltage

230V (single phase)

Frequency

50 / 60 Hz

DC current regulation range

10 - 130 A

Max. DC current EN60974-1

125 A @ 7%

%USE (use at 20°C)

60% @ 125 A

Max. no-load voltage

72 V

Max. absorbed current

27 A

Max. absorbed power

3.5 kW

Minimum motor generator power

5 kW

Efficiency

82 %

Power factor (cosφ)

0.6

Ø supported electrodes

1.6 - 3.2 mm

Protection degree

IP21

Dimensions

38 x 42 x 17 cm

Weight

5.2 kg
