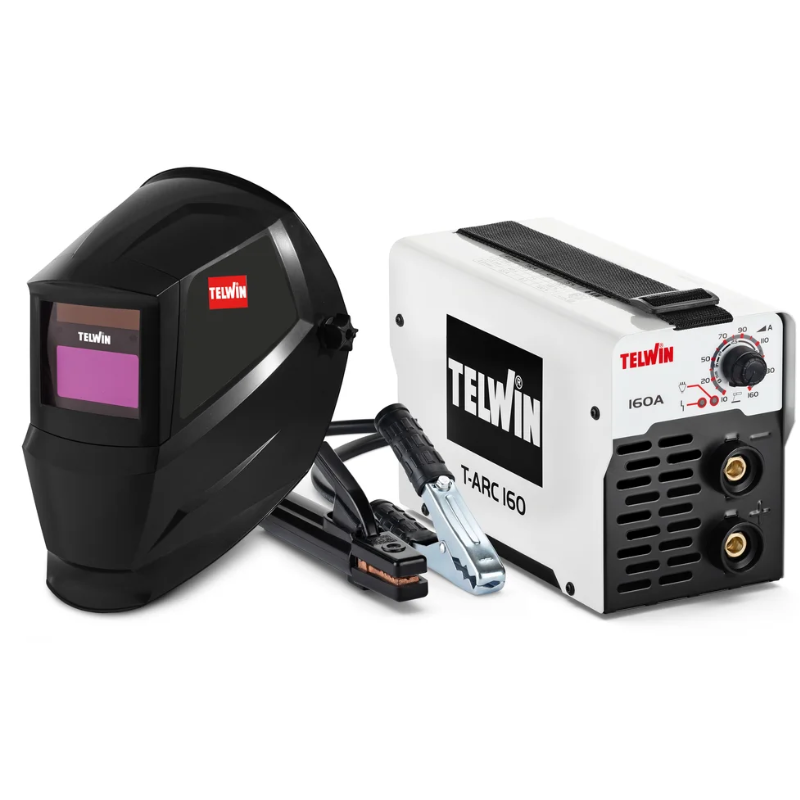

Telwin T-ARC 160 Inverter Welder + Mask – 160 A | 230 V

Telwin T-ARC 160 Inverter Welding Machine + Mask – 160 A | 230 V

Product code

816163

Certification

✅ Compliant with the EN60974-1 standard for MMA electrode welding in direct current (DC)

Main features

✔ Compact and lightweight inverter MMA electrode welding machine in direct current

✔ Compatible with rutile, basic, stainless steel, cast iron electrodes, etc.

✔ High stability of the welding current even in the presence of variations in the supply voltage

✔ Equipped with advanced devices: arc force, hot start and anti-stick

✔ Includes mask and welding accessories

Description

• Single-phase power supply 230 V – 50/60 Hz

• Current adjustment range: 10 - 160 A in DC

• Designed for professional welding, it offers stable performance even in variable mains conditions

• Works with motor generators (tolerance +/- 15%)

• Protection against overvoltage, undervoltage, overcurrent and overheating

Safety and protection

? IP21 protection rating for dry environments

? Advanced protection systems to ensure safe and long-lasting use

? Ideal combination with protective mask for additional safety during welding operations

Technologies and materials

✔ 82% efficiency for optimised energy use

✔ Power factor (cosφ) of 0.6

✔ Compact and resistant structure with dimensions of 28 x 12.5 x 18 cm

Areas of use

? Workshops and maintenance work

? Industrial and agricultural applications

? Hobbyists and professionals in the welding field

Mains voltage

230 V (single phase)

Frequency

50 / 60 Hz

DC current regulation range

10 - 160 A

Use at 20°C (Duty Cycle)

75% @ 160 A

Max DC current EN60974-1

140 A @ 20%

Current at 35% DC

105 A

Typical continuous current

70 A

Max no-load voltage

72 V

Max absorbed current

31 A

Absorbed current at 60%

14 A

Absorbed power max

4.5 kW

Power consumption at 60%

2 kW

Minimum generator power

6 kW

Efficiency

82 %

Power factor (cosφ)

0.6

Ø electrodes supported

1.6 - 4 mm

Dimensions

28 x 12.5 x 18 cm

Weight

4.480 kg
