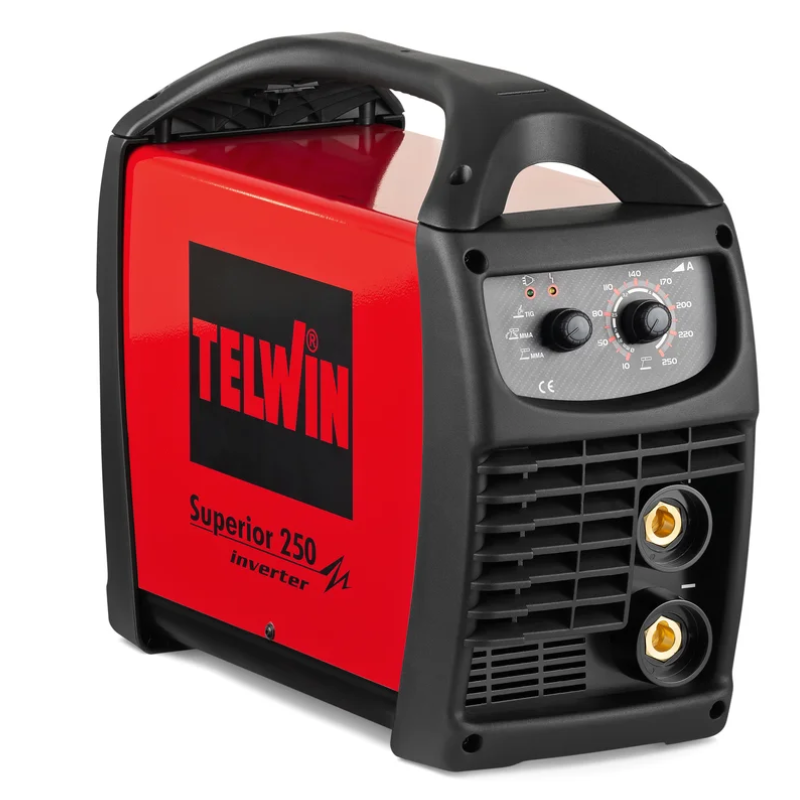

Telwin SUPERIOR 250 MMA-TIG Three-Phase Inverter Welding Machine – DC Current Up to 250A

Telwin SUPERIOR 250 MMA-TIG Three-phase Inverter Welding Machine – DC current up to 250A

Product code

816039

Certification

✅ Compliant with the EN60974-1 standard for MMA and TIG DC welding with scratch striking

Main features

✔ MMA and TIG DC electrode inverter welding machine with scratch striking

✔ Compatible with rutile, basic, stainless steel, cast iron electrodes up to Ø 5 mm

✔ Compact size and low weight

✔ High current stability even with variable supply voltages

✔ Instant control of welding drop transfer

✔ Equipped with devices: arc-force, hot start, anti-stick

✔ Ideal for industrial applications, shipyards and professional workshops

✔ Compatible with motor generators (±15%)

Safety and protection

? Protections integrated: thermostatic, overvoltage, undervoltage, overcurrent

? Degree of protection IP23 against dust and splashes of water

Technologies and materials

✔ High efficiency at 87%

✔ Power factor (cosφ) 0.8

✔ Continuous regulation of DC current up to 250 A

✔ Reliable operation even in harsh conditions

Sectors of use

? Metal constructions, heavy carpentry, industrial maintenance

? Mechanical workshops, plant engineering, construction site work

Mains voltage

400 V (three-phase)

Frequency

50 / 60 Hz

DC current regulation range

10 - 250 A

Max. DC current EN60974-1

220 A @ 25%

Current 35% DC

160 A

Average current in DC

130 A

Voltage at max vacuum

85 V

Max absorbed current

12 A

Absorbed current at 60%

6.8 A

Max absorbed power

8.2 kW

Absorbed power at 60%

4 kW

Minimum motor generator power

12 kW

Efficiency

87 %

Power factor (cosφ)

0.8

Ø supported electrodes

1.6 - 5 mm

Protection degree

IP23

Dimensions

43 x 17 x 34 cm

Weight

8.4 kg
