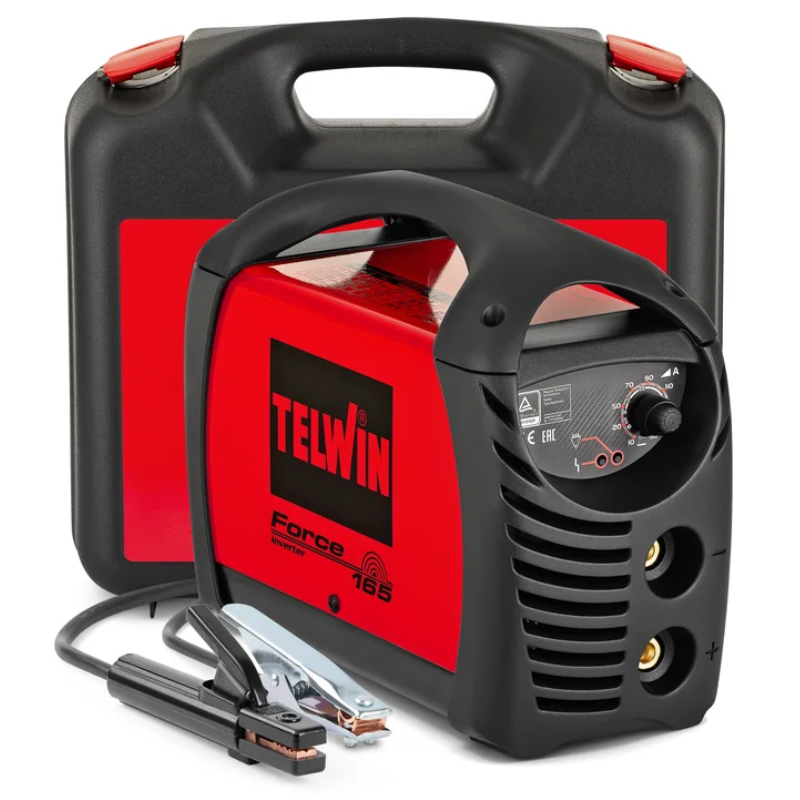

Telwin FORCE 165 MMA Inverter Welding Machine – 230V with Plastic Case
Product code
815857
Certification
✅ Compliant with the EN60974-1 standard for MMA welding in direct current (DC)
Main features
✔ MMA electrode inverter welding machine in direct current (DC)
✔ Current adjustment range: 10 - 150 A
✔ Compact, lightweight and easy to transport
✔ High current stability even with variations in mains voltage
✔ Integrated devices: Arc Force, Hot Start, Anti-Stick
✔ Protections: thermostatic, overvoltage, undervoltage, overcurrent
✔ Compatible with motor generators (±15%)
✔ Complete with MMA welding accessories and plastic case
Safety and protection
? Protection against overloads and voltage fluctuations
? Grade IP21 protection: protection from solid bodies and vertical splashes
? Protected electronics for long life even in harsh environments
Technologies and materials
✔ 82% efficiency for greater efficiency
✔ Power factor (cosφ) 0.6 to reduce energy waste
✔ Can be used with electrodes: rutile, basic, stainless steel, cast iron, etc.
Areas of use
? Maintenance, carpentry, workshops, construction sites
? Excellent for semi-professional and professional uses
? Also ideal for use with generator
Mains voltage
230V (single phase)
Frequency
50 / 60 Hz
DC current regulation range
10 - 150 A
%USE (use at 20°C)
60% @ 150 A
Max DC current EN60974-1
140 A @ 7%
Max no-load voltage
72 V
Max absorbed current
31 A
Max absorbed power
4.1 kW
Minimum generator power
6 kW
Efficiency
82 %
Power factor (cosφ)
0.6
Ø supported electrodes
1.6 - 4 mm
Degree of protection
IP21
Dimensions
38 x 42 x 17 cm
Weight
5.5 kg
