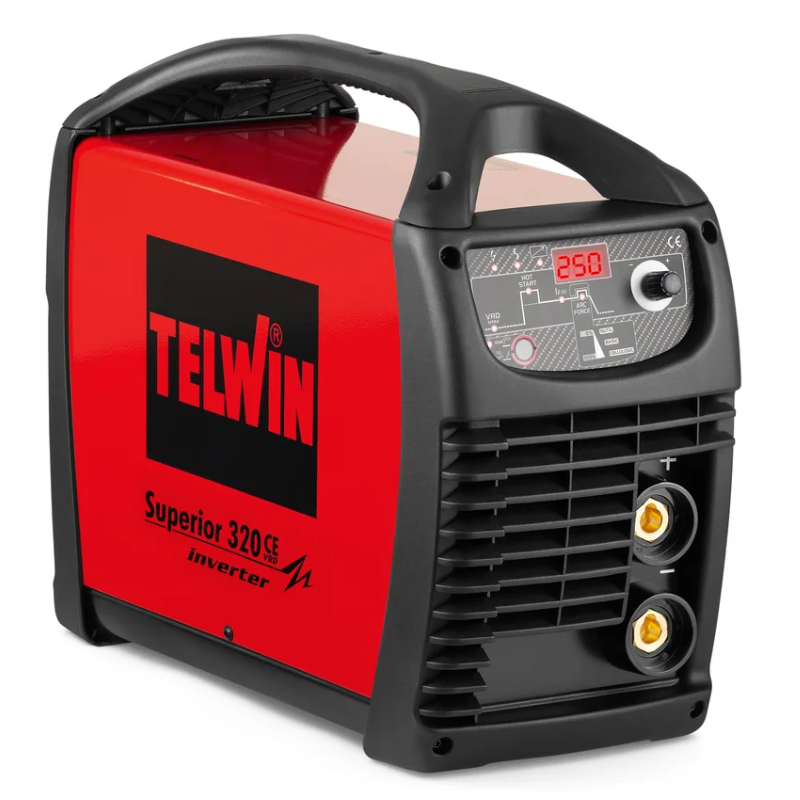

Telwin SUPERIOR 320 CE VRD MMA-TIG DC Three-Phase Inverter Welding Machine – Current up to 270A with Microprocessor Control
Product code
816036
Certification
✅ Compliant with the EN60974-1 standard for MMA and TIG-LIFT welding with microprocessor control
Main features
✔ MMA and TIG DC electrode inverter welding machine with LIFT ignition
✔ Supports cellulosic, aluminum, rutile, basic, stainless steel and cast iron electrodes up to Ø 6 mm
✔ Remote control provision
✔ Compact, lightweight and easily transportable
✔ High current stability even with unstable power supplies
✔ Advanced control of welding drop transfer
✔ Arc force and hot start adjustment based on the type of electrode
✔ Anti-stick and VRD devices (for safety in humid environments)
✔ Compatible with motor generators (±15%)
Safety and protection
? Integrated protections: thermostatic, overvoltage, undervoltage, overcurrent
? IP23 protection rating for use in harsh environments
Technologies and materials
✔ Microprocessor control for constant and reliable performance
✔ High efficiency at 90%
✔ Power factor (cosφ) 0.9
✔ Wide current regulation range (up to 270 A)
Sectors of use
? Construction sites, heavy carpentry, industrial processes and professional welding
? Ideal for heavy-duty uses, humid environments and work at heights or difficult to reach
Mains voltage
230 / 400 V (three-phase)
Frequency
50 / 60 Hz
DC current regulation range
10 - 250 / 10 - 270 A
Max DC current EN60974-1
220 A @ 42% / 270 A @ 35%
Current 35% DC
220 / 270 A
Average DC current
185 / 205 A
Max no-load voltage
60 / 63 V
Max absorbed current
19 / 14.4 A
Absorbed current at 60%
15 / 10 A
Max absorbed power
7 / 9 kW
Absorbed power at 60%
6 / 6.5 kW
Efficiency
90 %
Power factor (cosφ)
0.9
Ø supported electrodes
1.6 - 6 mm
Protection degree
IP23
Dimensions
47 x 19 x 35 cm
Weight
10.2 kg
