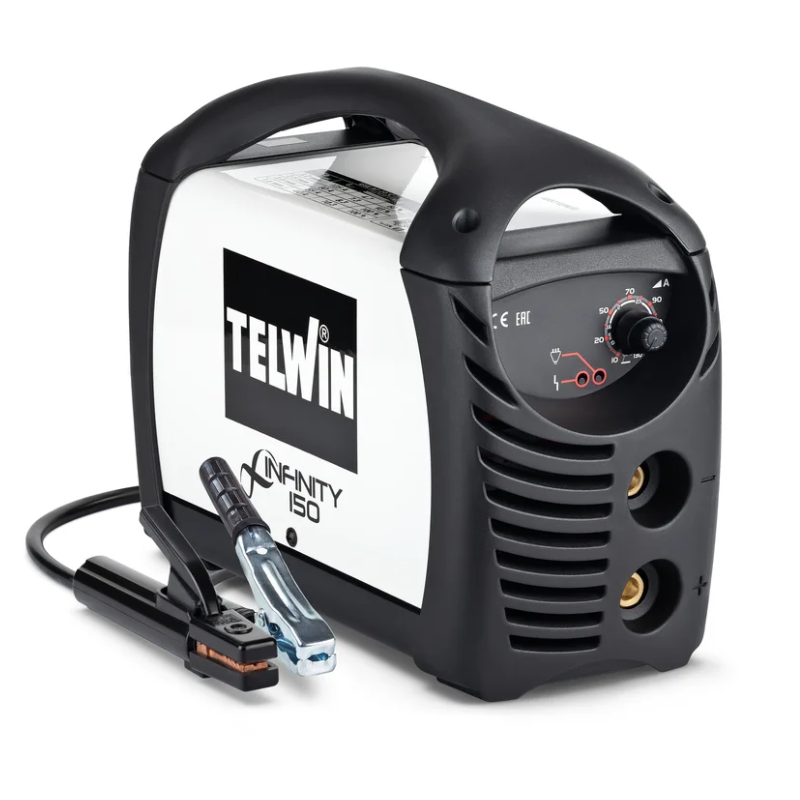

Telwin INFINITY 150 Inverter Welding Machine – 130 A | 230 V

Telwin INFINITY 150 Inverter Welding Machine – 130 A | 230 V

Product code

816079

Certification

✅ Compliant with the EN60974-1 standard for MMA electrode welding in direct current (DC)

Main features

✔ Compact and lightweight inverter MMA electrode welding machine in direct current

✔ Compatible with rutile, basic, stainless steel, cast iron electrodes, etc.

✔ High stability of the welding current even in the event of variations in the mains voltage

✔ Equipped with arc force, hot start and anti-stick devices

✔ Complete with accessories for MMA welding and cardboard case

Description

• Single-phase power supply 230 V – 50/60 Hz

• Current adjustment range: 10 - 130 A in DC

• Designed for medium intensity welding, ideal for professional and artisanal applications

• Works with motor generators (tolerance +/- 15%)

• Protection against overvoltage, undervoltage, overcurrent and overheating

Safety and protection

? IP21 protection rating for dry environments

? Complete protection system to ensure safe and long-lasting use

? Accessories and case included for safe and organised transport

Technologies and materials

✔ 82% efficiency for optimal use of energy

✔ Power factor (cosφ) of 0.6

✔ Compact construction with dimensions of 32 x 37 x 14.5 cm

Areas of use

? Workshops and maintenance work

? Hobbyists and craftsmen

? Professional and light welding applications

Mains voltage

230 V (single phase)

Frequency

50 / 60 Hz

DC current regulation range

10 - 130 A

Use at 20°C (Duty Cycle)

60% @ 125 A

Max. DC current EN60974-1

125 A @ 7%

Max. no-load voltage

72 V

Max. absorbed current

27 A

Max. absorbed power

3.5 kW

Minimum motor generator power

5 kW

Efficiency

82 %

Power factor (cosφ)

0.6

Ø electrodes supported

1.6 - 3.2 mm

Protection rating

IP21

Dimensions

32 x 37 x 14.5 cm

Weight

3.54 kg
