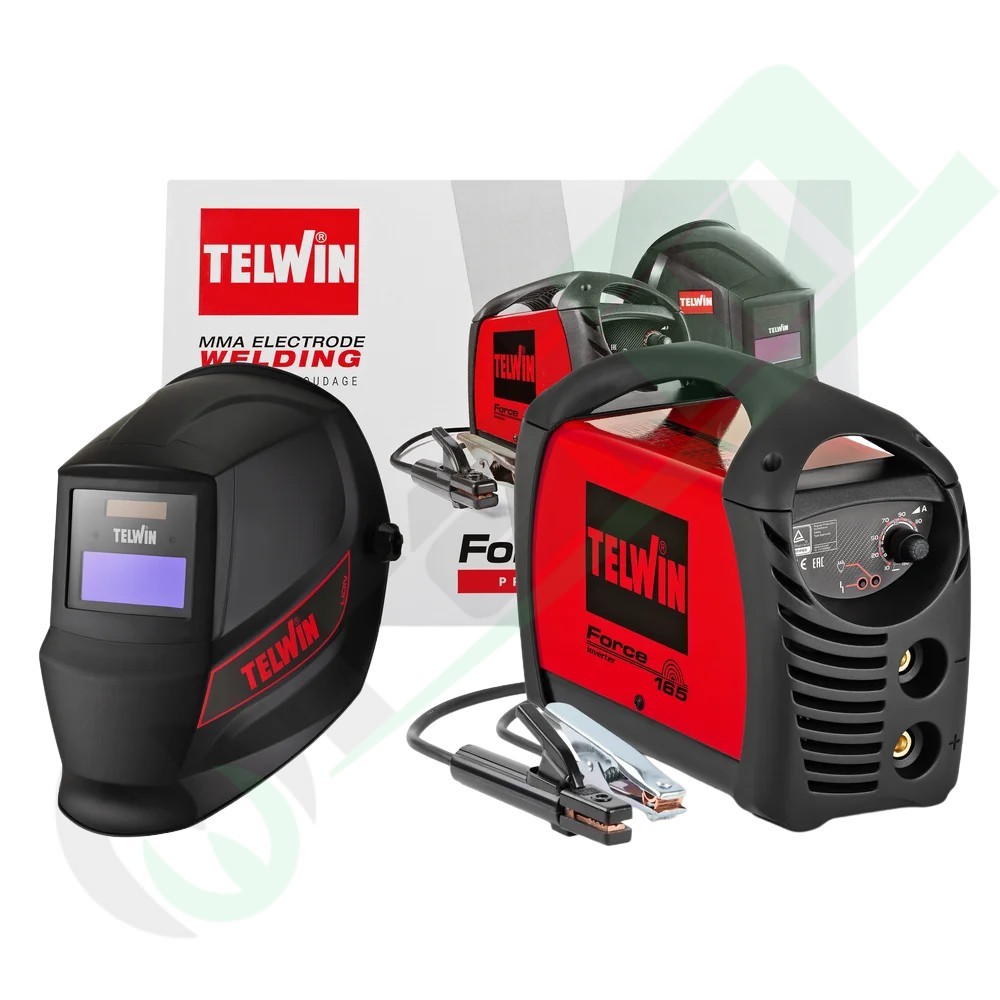

Telwin FORCE 165 + Automatic Mask - Inverter MMA Stick Electrode Welder (DC) 150A

The **Telwin FORCE 165 + Automatic Mask** is a powerful 150 A DC inverter stick electrode (MMA) welding machine, ideal for demanding professionals and skilled welders. This kit combines the capability to weld with electrodes up to **4 mm** with the safety and convenience of an **auto-darkening welding helmet**. The inverter technology ensures high arc stability, low consumption, and full compatibility with 6 kW motogenerators.

Key Kit Features

• Professional Auto-Darkening Helmet: Includes a mask with ultra-fast darkening (0.4ms), 2 sensors, DIN11 shade, and certified optical class 1/1/1/2.
• Helmet Versatility: Perfect for MMA, wire welding (MIG/MAG), and TIG welding (currents >5A).
• Welder Power: MMA Stick Electrode in Direct Current (DC), 10 - 150 A.
• Usable Electrodes: Handles rutile, basic, stainless steel, cast iron, etc., electrodes with diameters from 1.6 mm up to **4 mm**.
• Advanced Arc Control: Integrated **Arc Force, Hot Start, and Anti-Stick** devices.
• Generator Compatibility: Compatible with motogenerators (minimum power required: 6 kW).
• Portability: Lightweight and compact design for easy transport.

Technical Specifications (Welder Unit)

• CODE: 815863
• Single-Phase Mains Voltage: 230 V
• Mains Frequency: 50 / 60 Hz
• DC Current Regulation Range: 10 - 150 A
• Max Current DC EN60974-1: 140 A @ 7%
• Duty Cycle (Use at 20°C): 60% @ 150A
• Max No-Load Voltage: 72 V
• Max Absorbed Power: 4.1 kW
• Minimum Motogenerator Power: 6 kW
• Electrode Diameter in DC: 1.6 - 4 mm
• Protection Grade: IP21
• Dimensions (LxWxH): 30 x 12.5 x 22.5 cm (11.8 x 4.9 x 8.9 inches)
