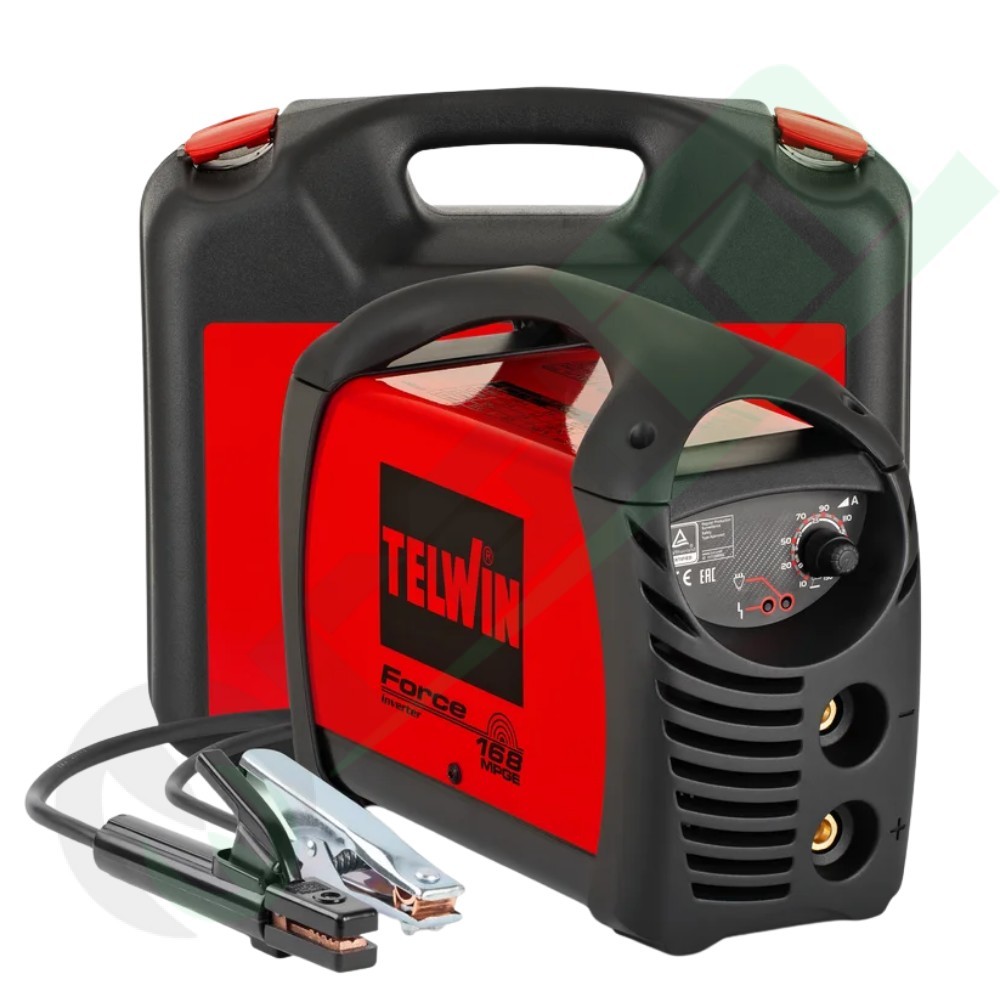

Telwin FORCE 168 MPGE + Case - Inverter MMA Stick Electrode Welder (DC) 150A

The **Telwin FORCE 168 MPGE** is a 150 A DC inverter stick electrode (MMA) welding machine, uniquely engineered for flawless operation with **motogenerators** and on power lines prone to voltage instability. The proprietary **MPGE (Multi Protection for Generator)** system makes it extremely resilient against current fluctuations. Compact, lightweight, and supplied with a plastic carrying case and accessories, this welder is the ideal choice for professional welding on site or in challenging power environments, handling electrodes up to **4 mm**.

Key Features

• MPGE Technology: Ideal for use with generator sets or unstable voltage sources due to integrated multi-protection.
• Welding Type: MMA Stick Electrode in Direct Current (DC), 10 - 150 A.
• Usable Electrodes: Handles rutile, basic, stainless steel, cast iron, etc., electrodes with diameters from 1.6 mm up to 4 mm.
• Advanced Arc Control: Integrated Arc Force, Hot Start, and Anti-Stick devices for excellent striking and stability.
• Portability: Compact and lightweight design. A durable plastic carrying case is included.
• Protection: Features thermostatic, overvoltage, undervoltage, and overcurrent protection.
• Generator Compatibility: Suitable for use with a motogenerator (minimum power required: 6 kW).

Technical Specifications

• CODE: 816211
• Single-Phase Mains Voltage: 230 V
• Mains Frequency: 50 / 60 Hz
• DC Current Regulation Range: 10 - 150 A
• Max Current DC EN60974-1: 140 A @ 7%
• Duty Cycle (Use at 20°C): 60% @ 150A
• Max No-Load Voltage: 72 V
• Max Absorbed Power: 4.1 kW
• Minimum Motogenerator Power: 6 kW
• Electrode Diameter in DC: 1.6 - 4 mm
• Fuse: 16 A
• Protection Grade: IP21
• Dimensions (LxWxH): 38 x 42 x 17 cm (15 x 16.5 x 6.7 inches)
