Right Curved Rotary Tiller Blade 40x6 mm for Barbieri Giaguaro FB1600 AR EL - 56927

star star star star star_border
Aftermarket
56927

Right-hand curved rotary tiller blade part number 56927 (flat plate 40x6 mm, hole center distance 76 mm, hole diameter 10.5 mm, dimensions 75x200x20 mm) for soil preparation. High-strength wear replacement part specifically designed to fit Barbieri rotary cultivators model Giaguaro FB1600 AR/EL.

Hurry! only 25 items left in stock.
€4.50
Tax included
COUPON
- € 0,09
Final price: € 4,41
Quantity

The minimum purchase order quantity for the product is 5.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

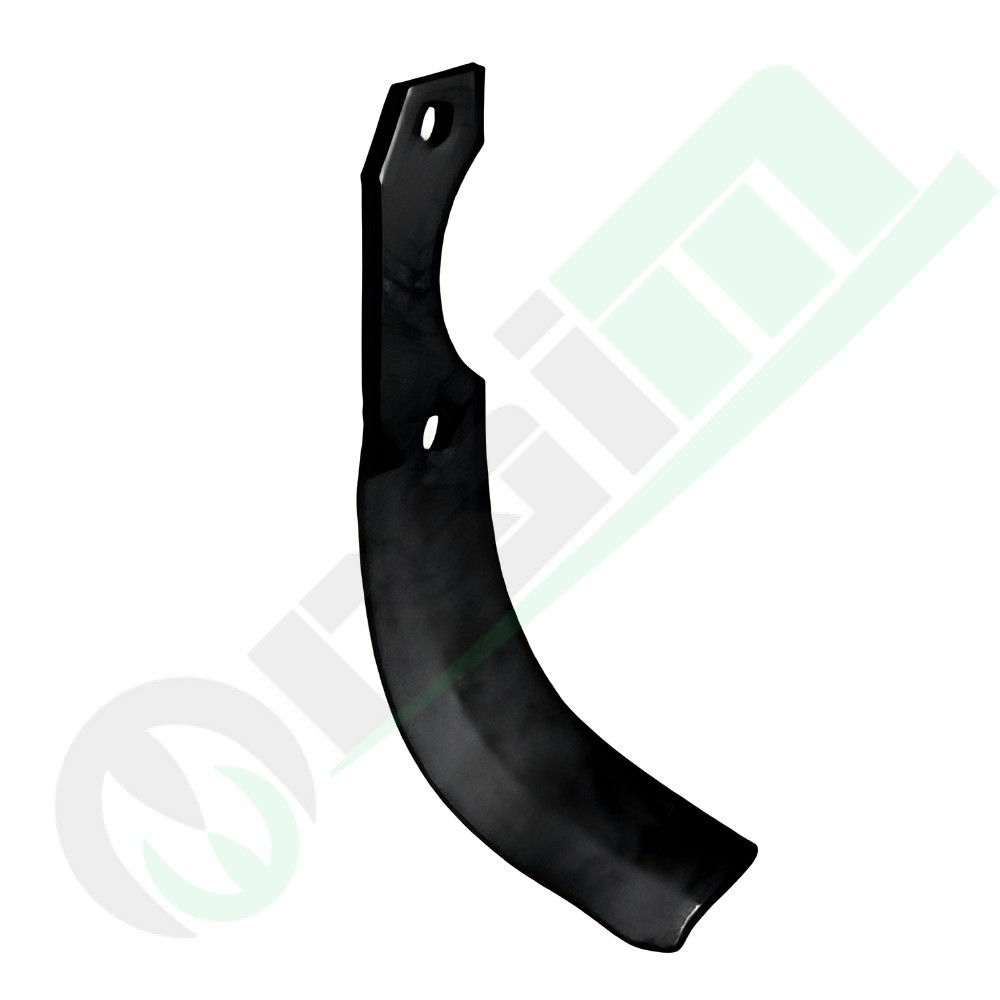

Right Curved Rotary Tiller Blade for Barbieri - Part Number: 56927

The Right Curved Rotary Tiller Blade (part number 56927, flat steel profile 40 × 6 mm, hole diameter Ø 10.5 mm with 76 mm center-to-center distance, dimensions X = 75 mm, Y = 200 mm, Z = 20 mm) is an abrasion- and impact-resistant ground-engaging tine. Engineered for uniform soil pulverization and stable operating depth, it is adaptable to Barbieri agricultural equipment, specifically for Giaguaro FB1600 AR/EL rotary tillers and cultivators.
Key Features & Benefits
  • Hardened & Tempered Spring Steel: Hot-forged from high-grade alloy steel and heat-treated to ensure maximum wear life, protecting against premature dulling and bending under stony conditions.
  • Engineered Curved Profile: The right-hand curved geometry (featuring a 75 mm reach and 20 mm lateral displacement) facilitates effortless ground penetration, optimal soil turning, and reduced engine drag.
  • Accurate 76 mm Hole Spacing: Dual 10.5 mm mounting holes engineered to match factory Barbieri Giaguaro FB1600 rotor holders for a vibration-free, stable fitment.
  • Thorough Soil Cultivation: Ensures complete residue incorporation, optimal aeration, and fine seedbed tilth across horticulture and market gardening.

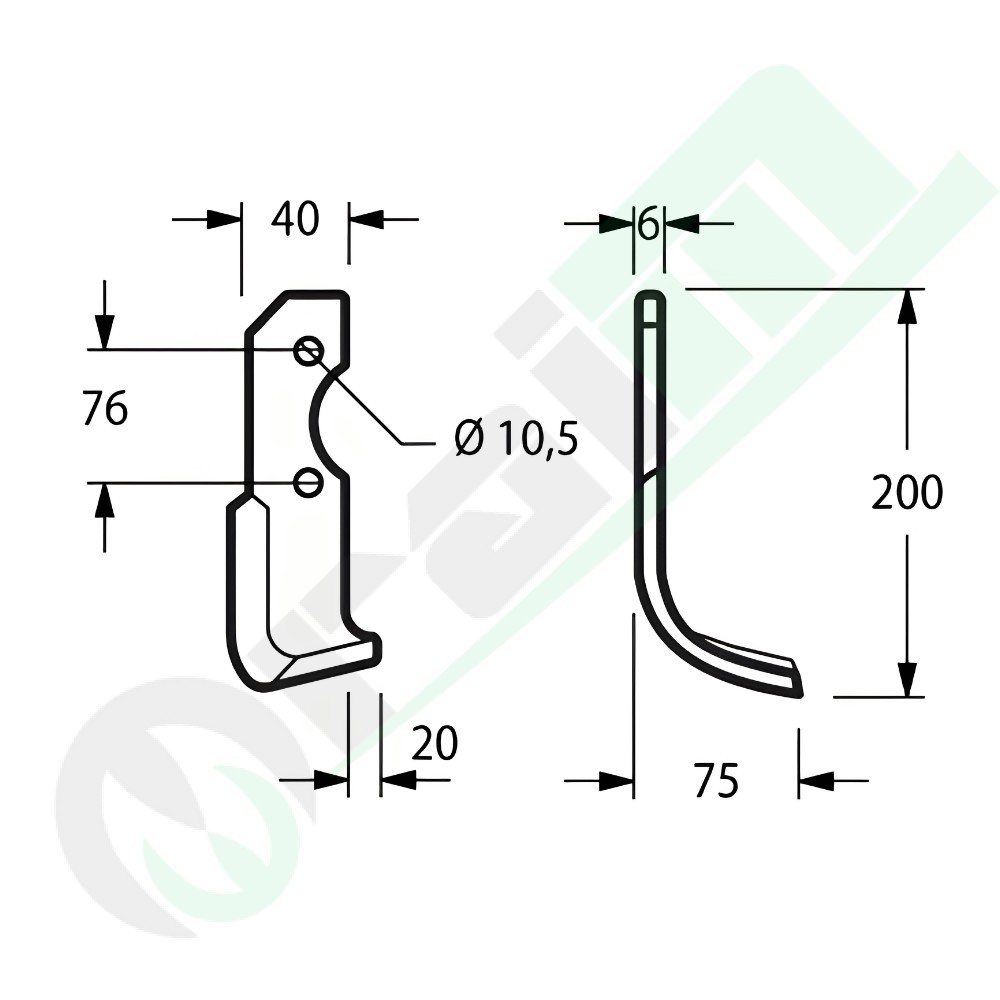

Technical Specifications
Product Code 56927
Component Type Rotary tiller blade / Cultivator tine
Shape & Direction Curved – Right Hand (RH)
Flat Stock Section (Width × Thickness) 40 × 6 mm
Length X (Horizontal Working Reach) 75 mm
Length Y (Vertical Height) 200 mm
Length Z (Offset Depth) 20 mm
Mounting Hole Diameter Ø 10.5 mm (designed for M10 hardware)
Hole Center-to-Center Distance 76 mm
Application Table & Compatible Implements
Equipment Manufacturer Machine Category Compatible Models
Barbieri Rotary Tiller / Power Cultivator Giaguaro FB1600 AR/EL
Installation Technical Note: Assemble using grade 8.8 or higher fasteners coupled with self-locking nuts. Re-check the torque on all mounting bolts after the initial hour of operation to prevent looseness caused by soil shock loads.
