Left Curved Blade 40x6 Barbieri Giaguaro FB1600 56928 | Raim Store

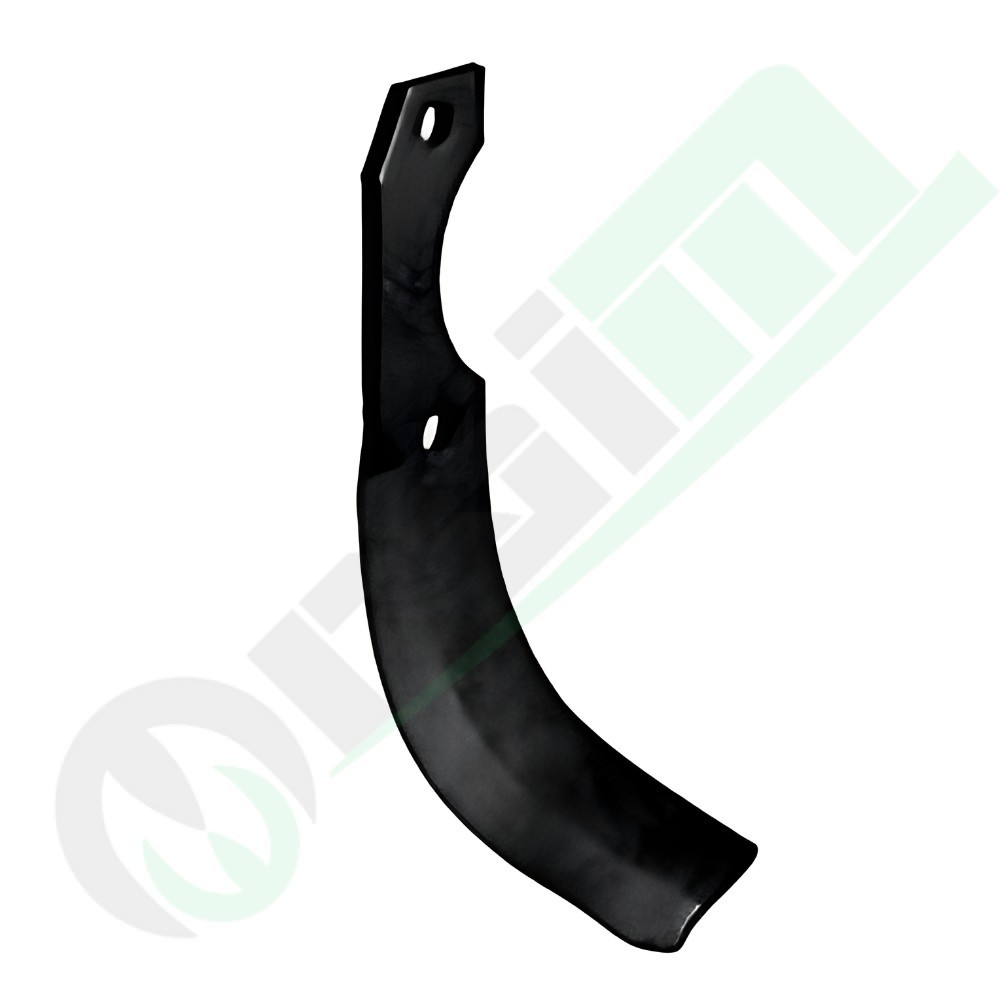

Left Curved Rotary Tiller Blade 40x6 mm for Barbieri Giaguaro FB1600 AR EL - 56928

star star star star star_border
Aftermarket
56928

Left-hand curved rotary tiller blade part number 56928 (flat plate 40x6 mm, hole center distance 76 mm, hole diameter 10.5 mm, dimensions 75x200x20 mm) for soil preparation. High-strength wear replacement part specifically designed to fit Barbieri rotary cultivators model Giaguaro FB1600 AR/EL.

Hurry! only 30 items left in stock.
€4.50
Tax included
COUPON
- € 0,09
Final price: € 4,41
Quantity

The minimum purchase order quantity for the product is 5.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Left Curved Rotary Tiller Blade for Barbieri - Part Number: 56928

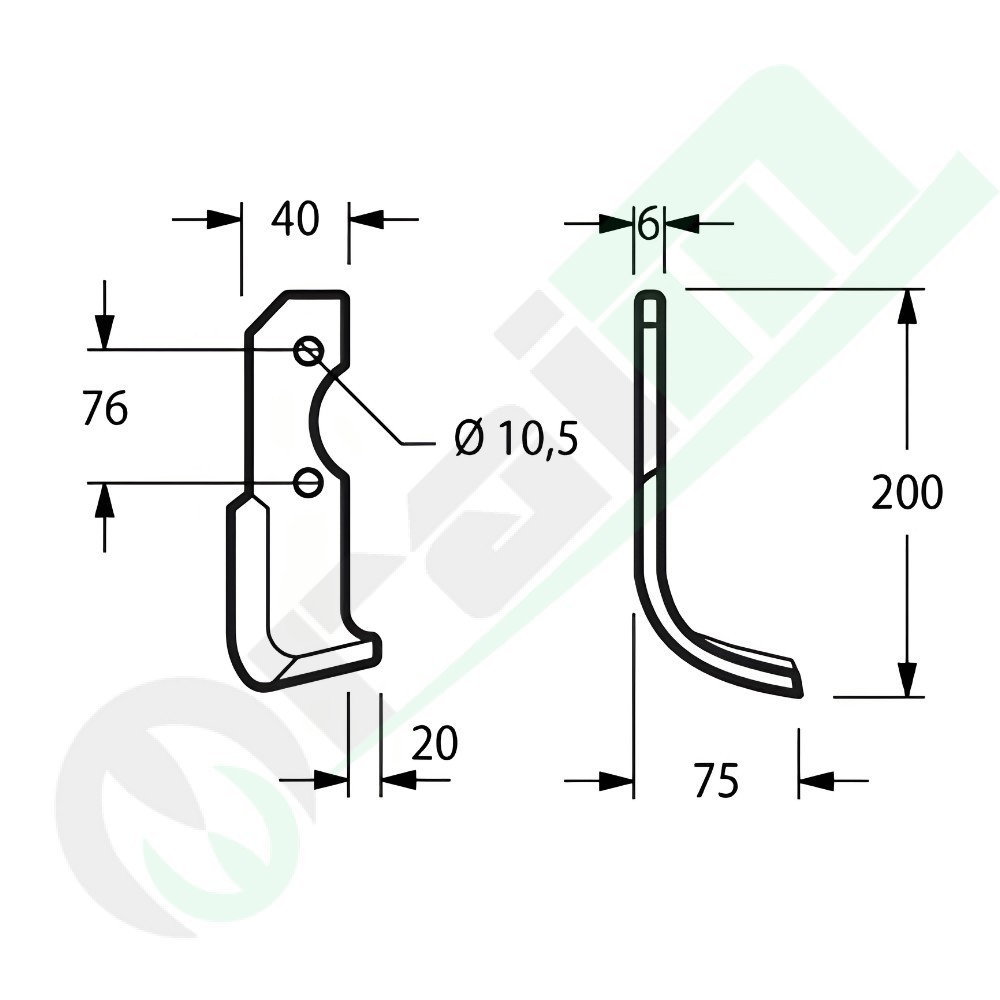

The Left Curved Rotary Tiller Blade (part number 56928, flat steel profile 40 × 6 mm, hole diameter Ø 10.5 mm with 76 mm center-to-center distance, dimensions X = 75 mm, Y = 200 mm, Z = 20 mm) is an abrasion- and impact-resistant ground-engaging tine. Designed with a left-hand curvature to counterbalance the rotor cutting pattern in tandem with the matching right-hand blade, it is adaptable to Barbieri agricultural equipment, specifically for Giaguaro FB1600 AR/EL rotary tillers and cultivators.
Key Features & Benefits
  • Hardened & Tempered Spring Steel: Hot-forged from high-grade alloy steel and heat-treated for maximum surface hardness and core toughness, preventing premature wear and bending in heavy or stony soil.
  • Engineered Left Curved Profile: The left-hand curved geometry (75 mm reach and 20 mm lateral displacement) facilitates smooth soil penetration, clean soil inversion, and lower power requirements from the engine.
  • Accurate 76 mm Hole Spacing: Twin 10.5 mm mounting holes manufactured to fit Barbieri Giaguaro FB1600 rotor holders for a tight, vibration-resistant fitment.
  • Uniform Soil Pulverization: Promotes optimal seedbed preparation, deep aeration, and effective incorporation of organic matter across horticulture and smallholdings.
Technical Specifications
Product Code 56928
Component Type Rotary tiller blade / Cultivator tine
Shape & Direction Curved – Left Hand (LH)
Flat Stock Section (Width × Thickness) 40 × 6 mm
Length X (Horizontal Working Reach) 75 mm
Length Y (Vertical Height) 200 mm
Length Z (Offset Depth) 20 mm
Mounting Hole Diameter Ø 10.5 mm (suited for M10 hardware)
Hole Center-to-Center Distance 76 mm
Matching Opposite Blade Part number 56927 (Right Hand)
Application Table & Compatible Implements
Equipment Manufacturer Machine Category Compatible Models
Barbieri Rotary Tiller / Power Cultivator Giaguaro FB1600 AR/EL
Installation Technical Note: Assemble using grade 8.8 or higher fasteners coupled with self-locking nuts. Re-check the torque on all mounting bolts after the initial hour of operation to prevent looseness caused by soil shock loads.
