Left Curved Blade 40x6 Barbieri Condor Arco 56936 | Raim Store

Left Curved Rotary Tiller Blade 40x6 mm for Barbieri RL C1 Condor Arco - 56936

star star star star star_border
Aftermarket
56936

Left-hand curved rotary tiller blade part number 56936 (flat plate 40x6 mm, hole center distance 76 mm, hole diameter 10.5 mm, dimensions 65x220 mm) for soil cultivation. High-wear resistant steel component engineered to fit Barbieri rotary tillers and walking tractors models RL C1, Condor, and Arco.

Hurry! only 20 items left in stock.
€4.90
Tax included
COUPON
- € 0,10
Final price: € 4,80
Quantity

The minimum purchase order quantity for the product is 5.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Left Curved Rotary Tiller Blade for Barbieri - Part Number: 56936

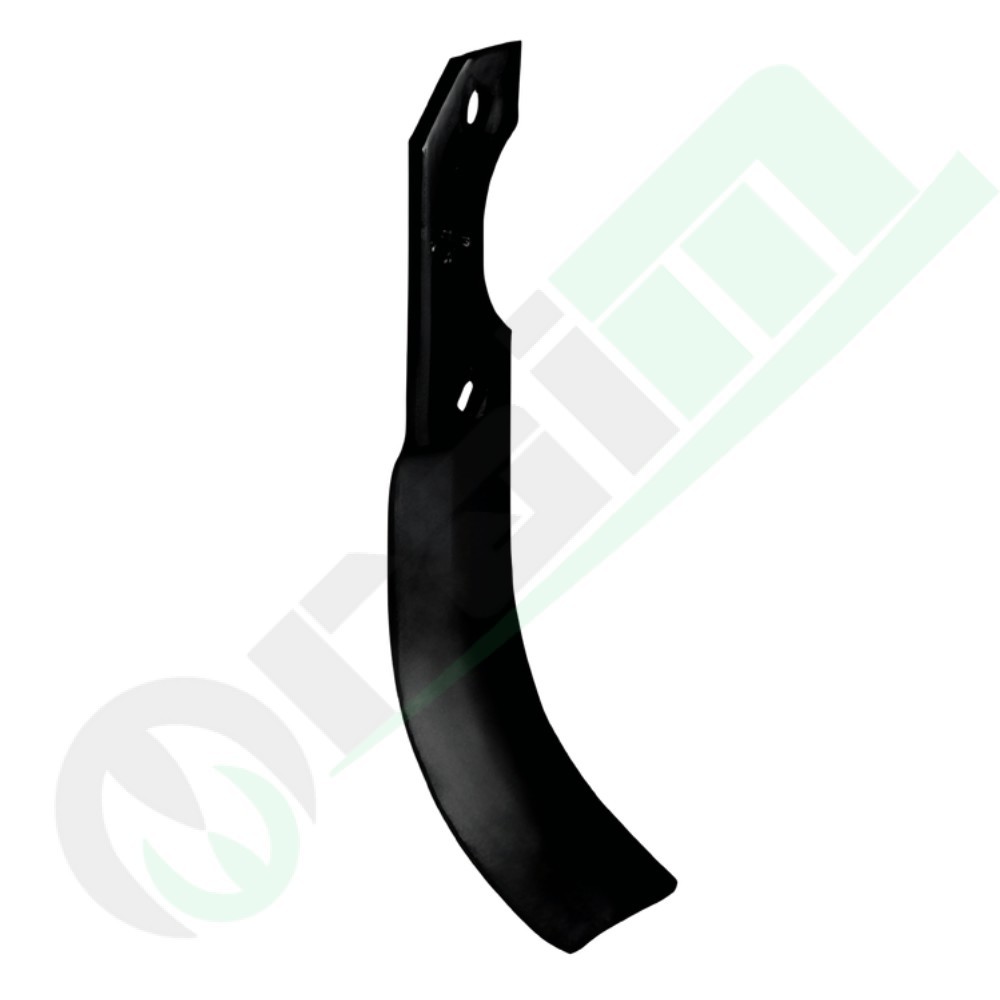

The Left Curved Rotary Tiller Blade (part number 56936, flat steel section 40 × 6 mm, mounting holes Ø 10.5 mm with 76 mm center-to-center spacing, operating dimensions X = 65 mm, Y = 220 mm) is an abrasion- and impact-resistant ground engaging tine. Engineered with a left-hand curve to counterbalance rotor forces when paired with the matching right-hand blade, it is adaptable to Barbieri rotary tillers and power cultivators, specifically for RL, C1, Condor, and Arco models.
Key Features & Benefits
  • Heat-Treated Forged Spring Steel: Formed from 40×6 mm flat alloy steel and through-hardened to preserve cutting edge geometry and prevent deformation or chipping in rocky conditions.
  • Engineered Left Curved Profile: Helical left-hand geometry (Y = 220 mm, X = 65 mm) promotes progressive ground penetration and thorough soil inversion while minimizing power demand and fuel consumption.
  • Accurate 76 mm Hole Spacing: Twin 10.5 mm mounting holes are machined to match factory Barbieri rotor holders, providing a rigid, play-free seat.
  • Superior Soil Tilth: Ensures thorough seedbed pulverization, efficient weed incorporation, and uniform mixing of organic amendments in vegetable gardens, greenhouses, and smallholdings.

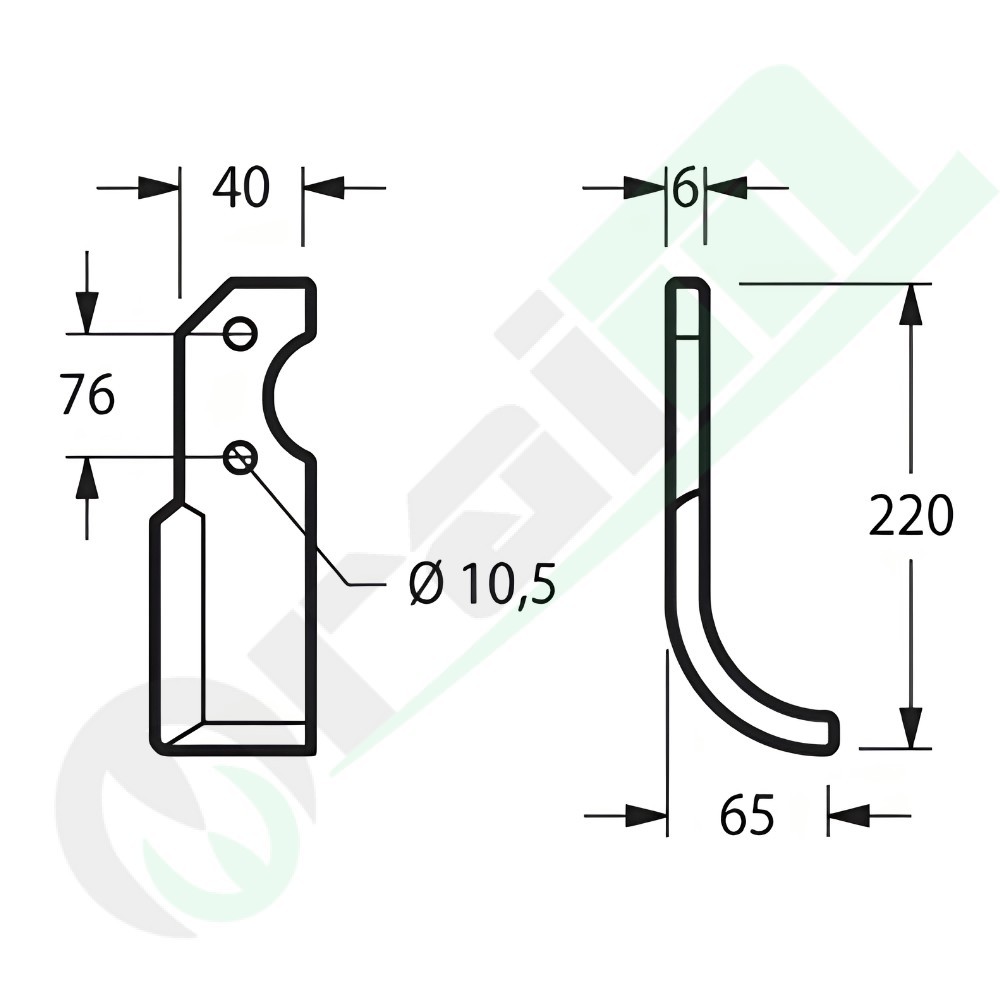

Technical Specifications
Product Code 56936
Component Type Rotary tiller blade / Cultivator tine
Shape & Direction Curved – Left Hand (LH)
Flat Stock Section (Width × Thickness) 40 × 6 mm
Length X (Horizontal Working Reach) 65 mm
Length Y (Vertical Height) 220 mm
Mounting Hole Diameter Ø 10.5 mm (suited for M10 hardware)
Hole Center-to-Center Distance 76 mm
Matching Opposite Blade Part number 56935 (Right Hand)
Application Table & Compatible Implements
Equipment Manufacturer Equipment Category Compatible Models
Barbieri Rotary Tiller / Power Cultivator RL, C1, Condor, Arco
Installation Technical Note: Assemble using grade 8.8 or higher fasteners with lock nuts. Ensure the rotor holder matches the 76 mm hole spacing and verify fastener tightness after the initial hour of operation.
