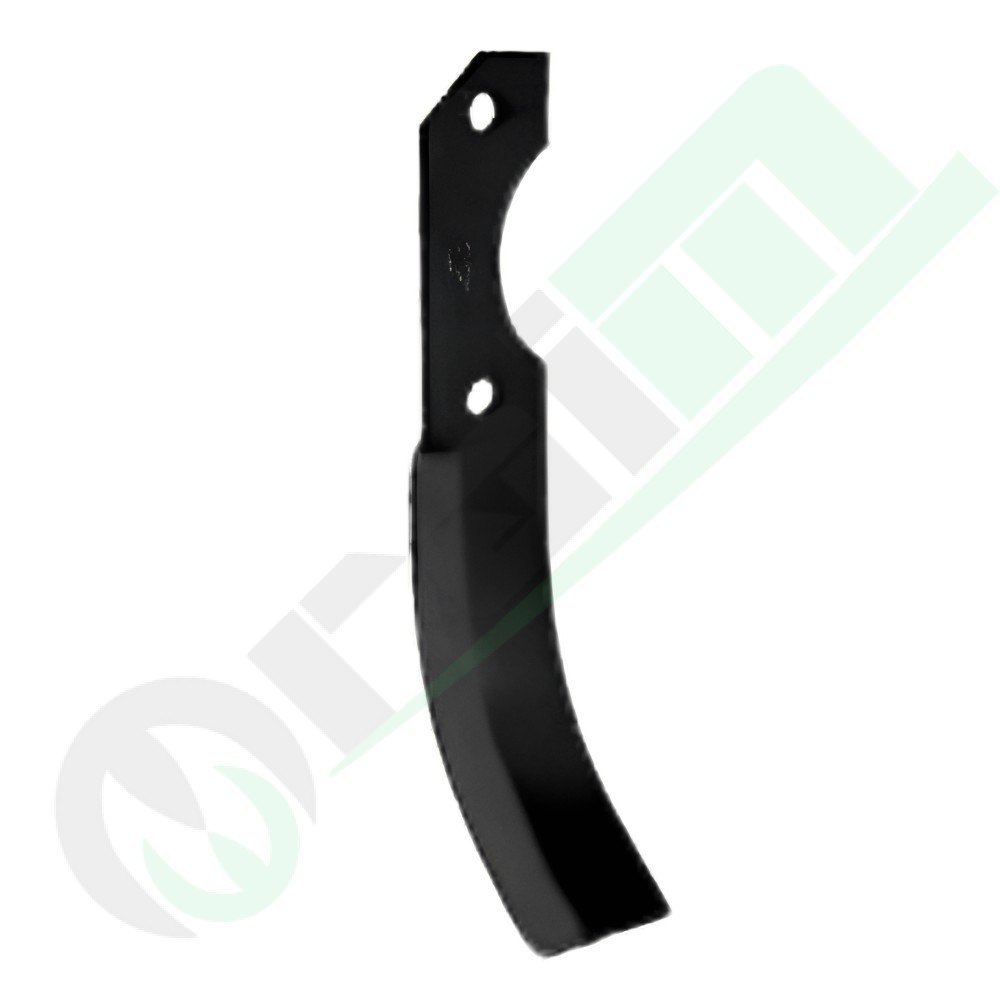

Right Curved Rotary Tiller Blade 35x5 mm for Barbieri RL A3 Airone Arco - 56939

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

Right Curved Rotary Tiller Blade 35x5 mm for Barbieri RL A3 Airone Arco - 56939

Right-hand curved rotary tiller blade part number 56939 (flat plate 35x5 mm, hole center distance 68 mm, hole diameter 9 mm, dimensions 60x195 mm) for soil preparation and cultivation. High-durability wear replacement part engineered to fit Barbieri rotary tillers and walking tractors models RL A3, Airone, and Arco.

Forged & Heat-Treated Boron Steel
Right Curved Helical Profile
Precision 9 mm Mounting Holes (68 mm Spacing)

€4.99VAT incl.

Coupon -€0.10 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €4.89

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Key features

Forged & Heat-Treated Boron SteelManufactured from 35×5 mm high-grade alloy spring steel and hardened to optimize cutting edge retention and prevent fractures or bending during impact with buried stones.

Right Curved Helical ProfileThe curved geometry (Y = 195 mm, X = 60 mm) promotes progressive ground entry and clean soil inversion while reducing engine load and fuel consumption.

Precision 9 mm Mounting Holes (68 mm Spacing)Dual 9 mm bolt holes are accurately machined to align with original Barbieri rotor flanges, ensuring a rigid, play-free seat.

Uniform Tilth PreparationDelivers thorough seedbed pulverization, efficient weed incorporation, and uniform mixing of organic matter in vegetable gardens and greenhouse plots.

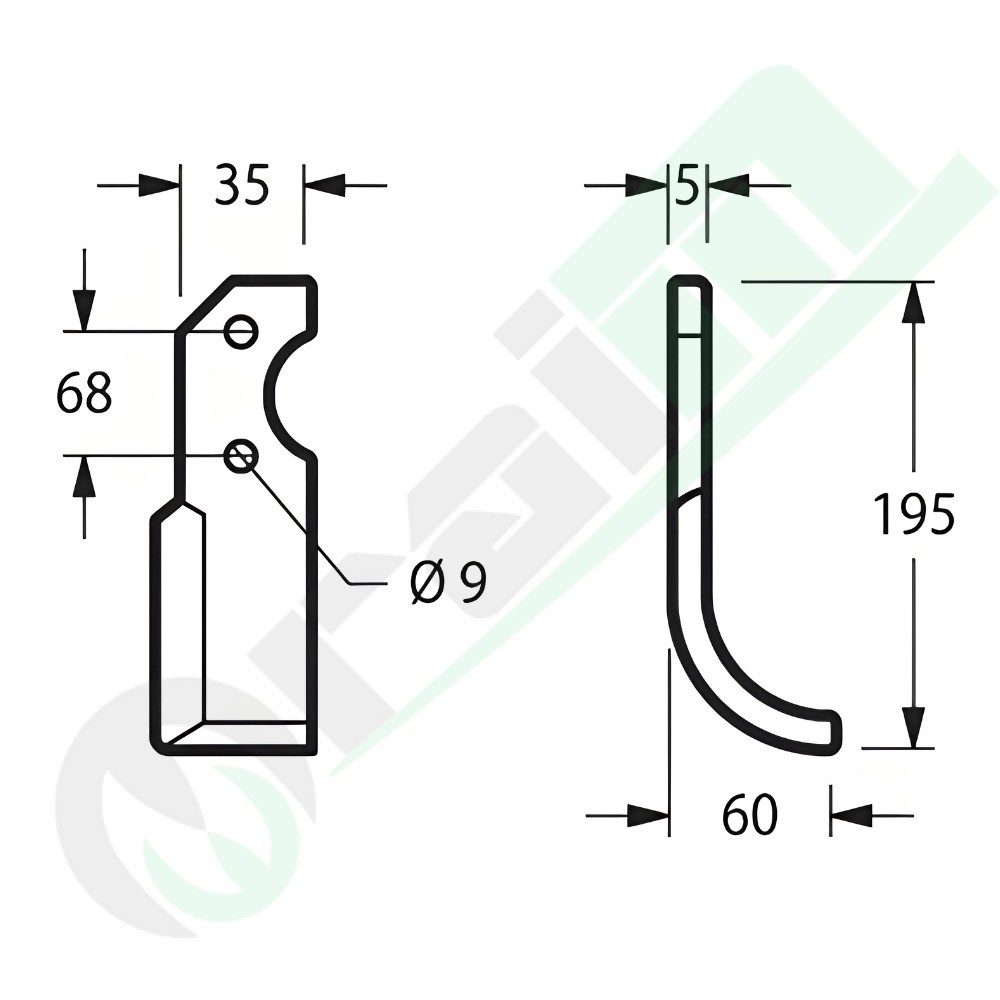

Specifications

Product Code	56939
Component Type	Rotary tiller blade / Cultivator tine
Shape & Direction	Curved – Right Hand (RH)
Flat Stock Section (Width × Thickness)	35 × 5 mm
Length X (Horizontal Working Reach)	60 mm
Length Y (Vertical Height)	195 mm
Mounting Hole Diameter	Ø 9 mm
Hole Center-to-Center Distance	68 mm
