Left Curved Blade 50x6 Barbieri Zebra S1500 56942 | Raim Store

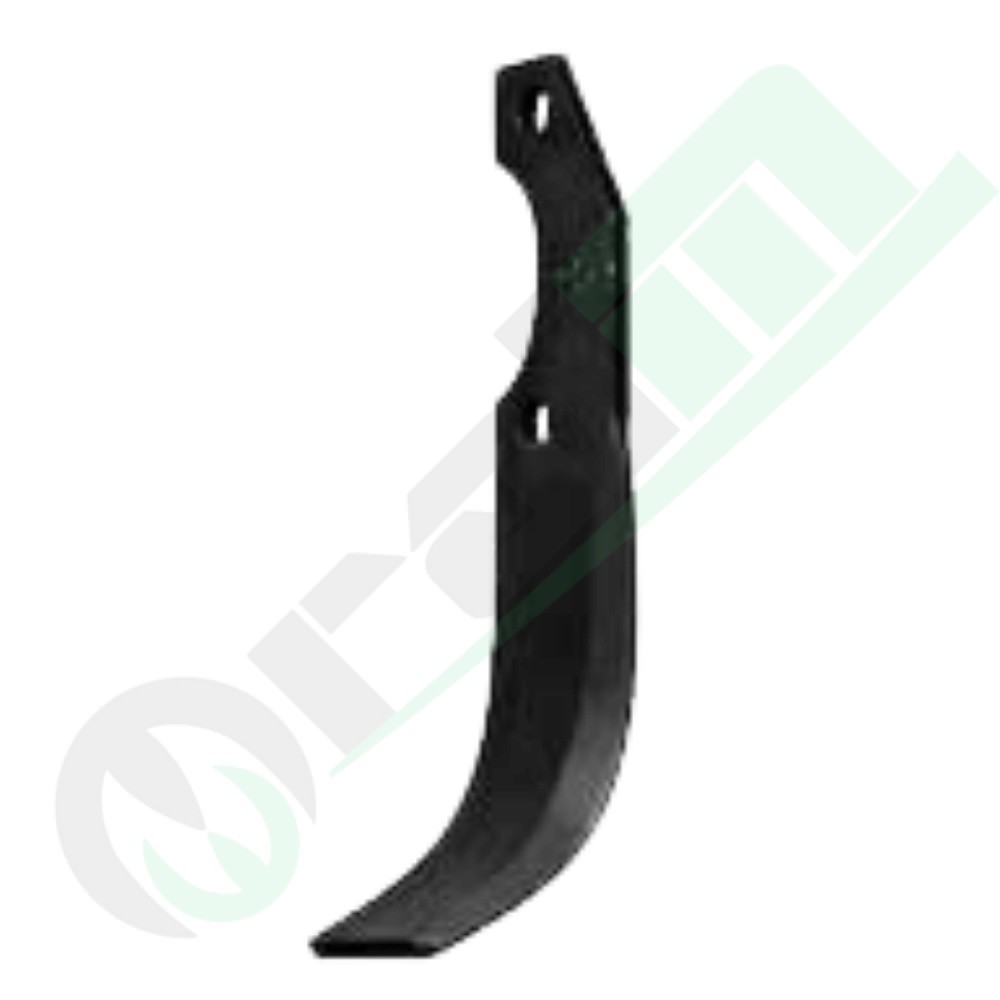

Left Curved Rotary Tiller Blade 50x6 mm for Barbieri RL F1 S.1500 Zebra Arco - 56942

star star star star star_border
Aftermarket
56942

Left-hand curved rotary tiller blade part number 56942 (flat plate 50x6 mm, hole center distance 76 mm, hole diameter 10.5 mm, dimensions 65x223 mm) for agricultural tillage. High-durability wear-resistant component engineered to fit Barbieri rotary tillers and cultivators models RL F1, S.1500, Zebra, and Arco.

Hurry! only 15 items left in stock.
€4.60
Tax included
COUPON
- € 0,09
Final price: € 4,51
Quantity

The minimum purchase order quantity for the product is 5.

Media disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Left Curved Rotary Cultivator Tine for Barbieri - Part Number: 56942

The Left Curved Rotary Cultivator Tine (part number 56942, heavy-duty flat section 50 × 6 mm, hole diameter Ø 10.5 mm with 76 mm center-to-center distance, working dimensions X = 65 mm, Y = 223 mm) is an abrasion- and shock-resistant soil cultivation wear part. Designed with a left-hand curvature to counterbalance rotor forces in conjunction with the matching right-hand blade, it is adaptable to Barbieri walk-behind tillers and cultivators, specifically for RL, F1, S.1500, Zebra, and Arco models.
Key Features & Benefits
  • Heavy-Duty Heat-Treated Boron Steel: Forged from a robust 50×6 mm alloy steel bar stock and tempered for high surface hardness and core toughness, preventing deformation and breakage in rocky conditions.
  • Optimized Left Curved Profile: The left-hand curved geometry (Y = 223 mm, X = 65 mm) facilitates smooth ground penetration and thorough soil inversion while minimizing power demand and fuel consumption.
  • Accurate 76 mm Hole Spacing: Twin 10.5 mm mounting holes match factory Barbieri tine holders, providing a rigid, play-free seat on the rotor shaft.
  • Superior Soil Conditioning: Delivers thorough seedbed pulverization, effective aeration, and uniform mixing of organic amendments in vegetable beds and orchards.

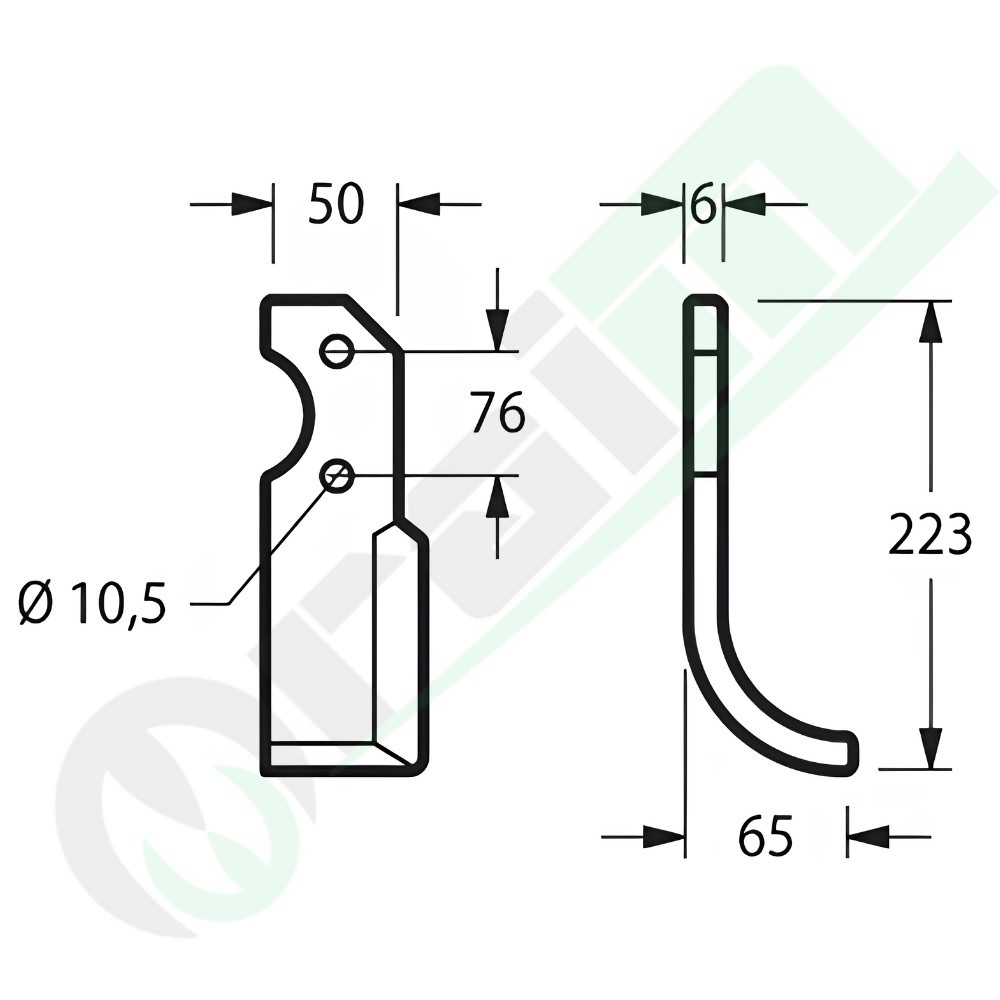

Technical Specifications
Product Code 56942
Component Type Rotary tiller blade / Cultivator tine
Shape & Direction Curved – Left Hand (LH)
Flat Stock Section (Width × Thickness) 50 × 6 mm
Length X (Horizontal Working Reach) 65 mm
Length Y (Vertical Height) 223 mm
Mounting Hole Diameter Ø 10.5 mm (suited for M10 hardware)
Hole Center-to-Center Distance 76 mm
Matching Opposite Blade Part number 56941 (Right Hand)
Application Table & Compatible Implements
Equipment Manufacturer Machine Category Compatible Models
Barbieri Rotary Tillers / Walk-Behind Cultivators RL, F1, S.1500, Zebra, Arco
Installation Technical Note: Assemble using grade 8.8 or 10.9 high-tensile hardware equipped with lock nuts or lock washers. Verify that the flange hole pattern matches the 76 mm center distance, and retighten all bolts after the initial hour of operation.
: 56942
Hurry! only 15 items left in stock.

Specific References

MPN
56941

Fast and safe shipping: each order is carefully packaged to ensure that the product arrives intact and in perfect condition.

We work with reliable couriers to offer an efficient, traceable and punctual service.

You will receive a link to follow the shipment at every stage, until delivery.

We use quality protective materials and, where possible, eco-friendly packaging.

Our priority is that your purchase arrives without surprises, ready to use.
