Right Curved Blade 35x5 Barbieri RL A1 Airone 56937 | Raim Store

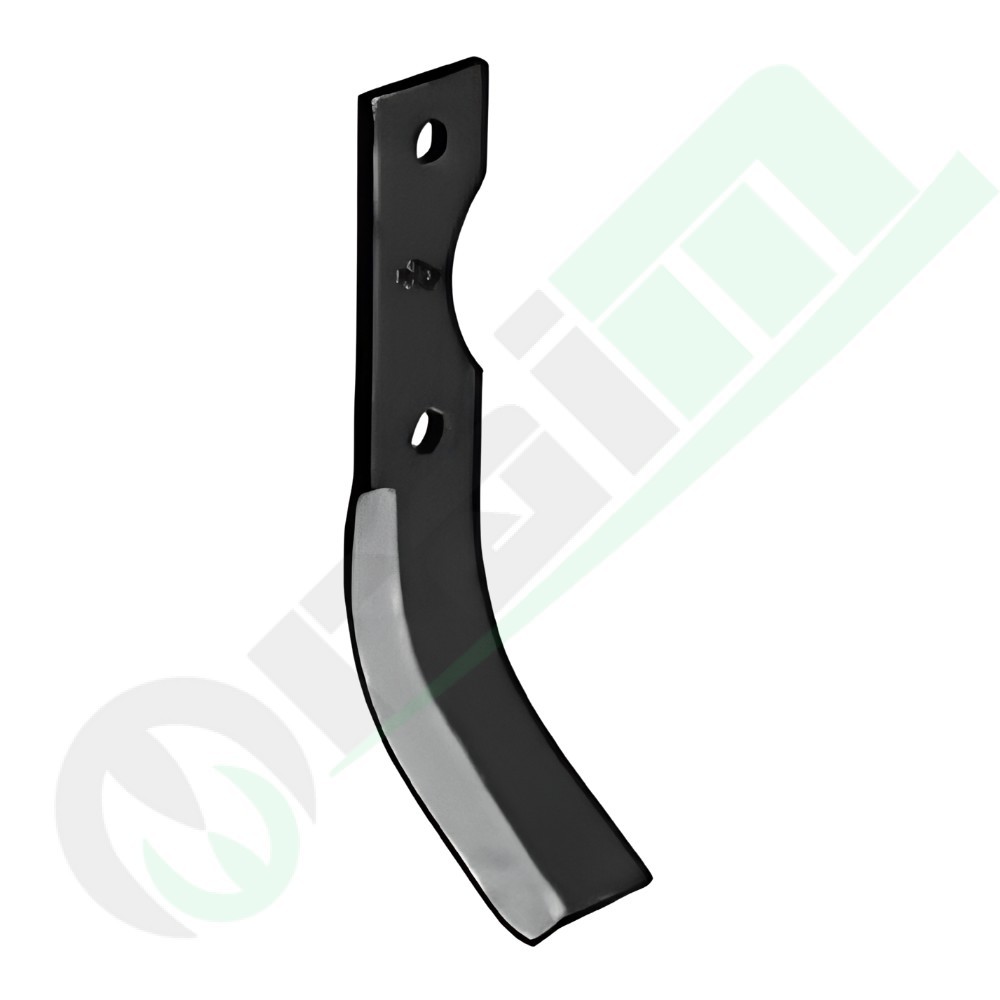

Right Curved Rotary Tiller Blade 35x5 mm for Barbieri RL A1 Airone Ghepard Arco - 56937

star star star star star_border
Aftermarket
56937

Right-hand curved rotary tiller blade part number 56937 (flat plate 35x5 mm, hole center distance 68 mm, hole diameter 9 mm, dimensions 62x182 mm) for soil cultivation. Engineered from wear-resistant steel for reliable field performance, perfectly suitable for Barbieri rotary tillers and walking tractors models RL A1, Airone, Ghepard, and Arco.

Hurry! only 25 items left in stock.
€3.50
Tax included
COUPON
- € 0,07
Final price: € 3,43
Quantity

The minimum purchase order quantity for the product is 5.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Right Curved Rotary Cultivator Tine for Barbieri - Part Number: 56937

The Right Curved Rotary Cultivator Tine (part number 56937, flat steel section 35 × 5 mm, mounting hole diameter Ø 9 mm with 68 mm center-to-center distance, working dimensions X = 62 mm, Y = 182 mm) is an abrasion- and impact-resistant soil cultivation wear part designed for compact tillers. Engineered for smooth ground penetration and efficient soil pulverization, it is adaptable to Barbieri walk-behind tillers and cultivators, specifically for RL A1, Airone, Ghepard, and Arco models.
Key Features & Benefits
  • Forged & Heat-Treated Alloy Steel: Fabricated from 35×5 mm high-tensile spring steel and through-hardened to maximize cutting edge life and resist stone impacts and abrasive wear.
  • Compact Right Curved Profile: The curved geometry (Y = 182 mm, X = 62 mm) facilitates clean ground penetration and optimal soil inversion, minimizing engine drag on light to medium tillers.
  • Precision 9 mm Mounting Holes (68 mm Spacing): Dual 9 mm mounting holes are machined to match factory Barbieri tine holders, ensuring rigid, play-free mounting on the rotor shaft.
  • Ideal Soil Preparation: Delivers thorough seedbed pulverization, efficient weed incorporation, and uniform mixing of organic amendments in vegetable gardens, greenhouses, and smallholdings.

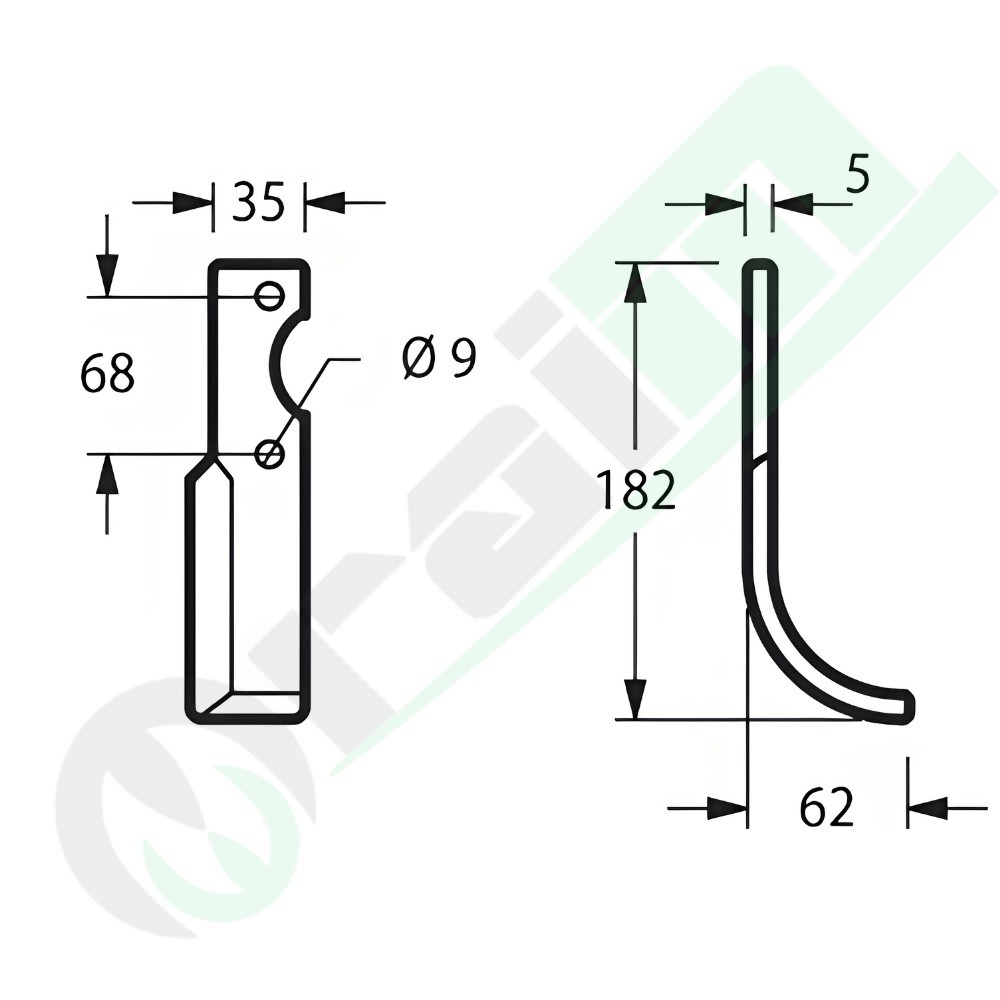

Technical Specifications
Product Code 56937
Component Type Rotary tiller blade / Cultivator tine
Shape & Direction Curved – Right Hand (RH)
Flat Stock Section (Width × Thickness) 35 × 5 mm
Length X (Horizontal Working Reach) 62 mm
Length Y (Vertical Height) 182 mm
Mounting Hole Diameter Ø 9 mm
Hole Center-to-Center Distance 68 mm
Application Table & Compatible Implements
Equipment Manufacturer Equipment Category Compatible Models
Barbieri Rotary Tiller / Power Cultivator RL A1, Airone, Ghepard, Arco
Installation Technical Note: Assemble using high-tensile hardware with lock nuts or spring washers suited for 9 mm holes. Verify that the flange matches the 68 mm center distance and check fastener tightness after the initial hour of field operation.
: 56937
Hurry! only 25 items left in stock.

Specific References

MPN
56937

Fast and safe shipping: each order is carefully packaged to ensure that the product arrives intact and in perfect condition.

We work with reliable couriers to offer an efficient, traceable and punctual service.

You will receive a link to follow the shipment at every stage, until delivery.

We use quality protective materials and, where possible, eco-friendly packaging.

Our priority is that your purchase arrives without surprises, ready to use.
