Right Curved Blade 50x6 Barbieri Zebra S1500 56941 | Raim Store

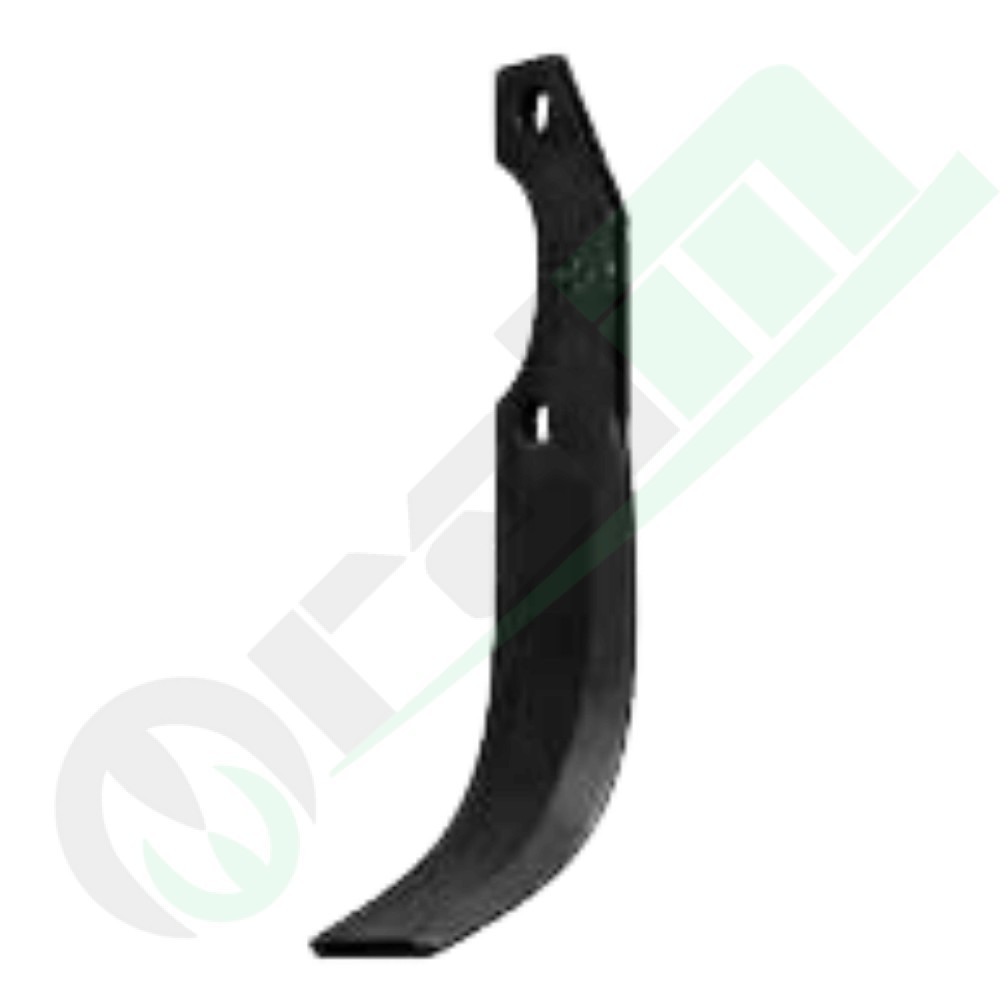

Right Curved Rotary Tiller Blade 50x6 mm for Barbieri RL F1 S.1500 Zebra Arco - 56941

star star star star star_border
Aftermarket
56941

Right-hand curved rotary tiller blade part number 56941 (flat plate 50x6 mm, hole center distance 76 mm, hole diameter 10.5 mm, dimensions 65x223 mm) for agricultural tillage. High-durability wear-resistant component engineered to fit Barbieri rotary tillers and cultivators models RL F1, S.1500, Zebra, and Arco.

Hurry! only 15 items left in stock.
€4.60
Tax included
COUPON
- € 0,09
Final price: € 4,51
Quantity

The minimum purchase order quantity for the product is 5.

Media disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Right Curved Rotary Cultivator Tine for Barbieri - Part Number: 56941

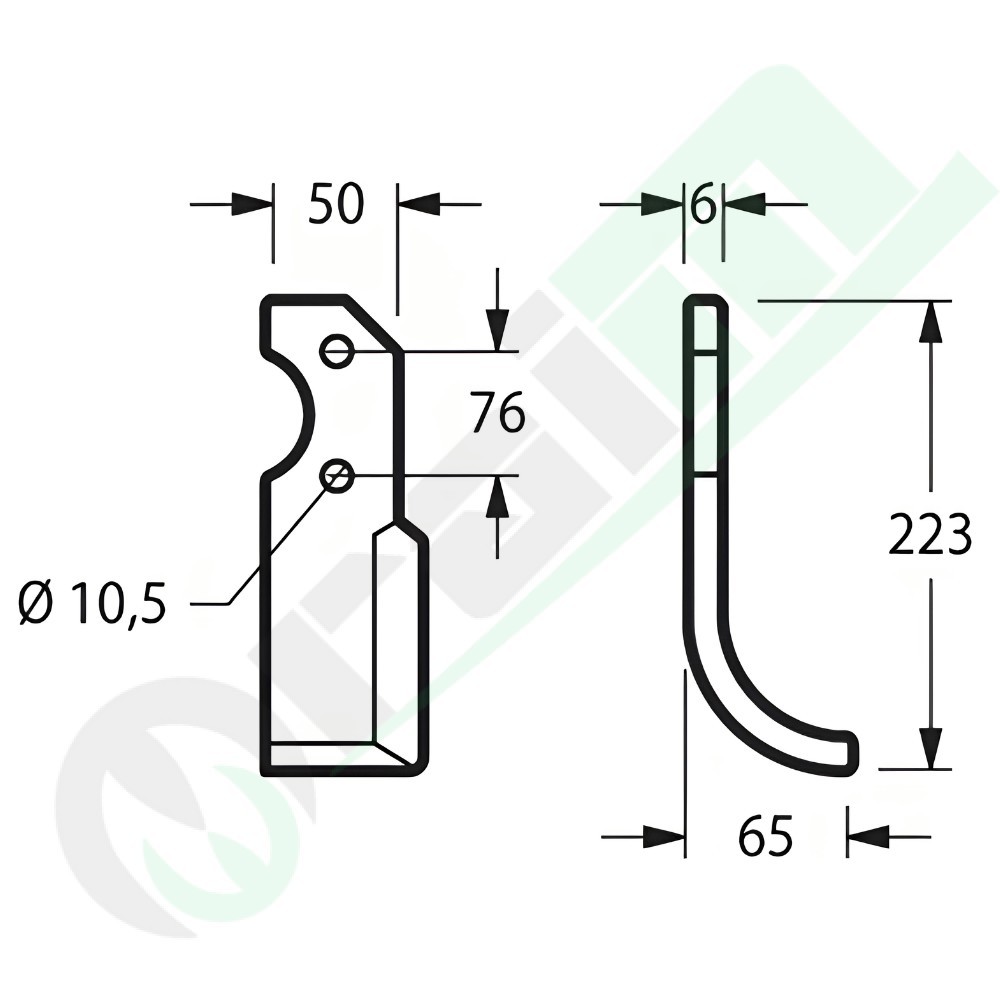

The Right Curved Rotary Cultivator Tine (part number 56941, heavy-duty flat section 50 × 6 mm, hole diameter Ø 10.5 mm with 76 mm center-to-center distance, working dimensions X = 65 mm, Y = 223 mm) is an abrasion- and impact-resistant soil cultivation wear part. Engineered for deep tilling and efficient ground turnover, it is adaptable to Barbieri walk-behind tillers and cultivators, specifically for RL, F1, S.1500, Zebra, and Arco models.
Key Features & Benefits
  • Heavy-Duty Heat-Treated Boron Steel: Forged from a robust 50×6 mm alloy steel bar stock and tempered for superior wear life and shock resistance, preventing breakage and premature blunting in rocky soils.
  • Optimized Right Curved Geometry: The helical right-hand curvature (Y = 223 mm, X = 65 mm) promotes effortless ground entry and thorough soil inversion, minimizing engine strain and fuel consumption.
  • Accurate 76 mm Hole Spacing: Twin 10.5 mm mounting holes are precisely spaced to fit factory Barbieri tine holders, ensuring rigid, play-free seating on the rotor.
  • Superior Soil Conditioning: Delivers thorough seedbed pulverization, efficient weed incorporation, and uniform mixing of organic amendments in vegetable beds and orchards.
Technical Specifications
Product Code 56941
Component Type Rotary tiller blade / Cultivator tine
Shape & Direction Curved – Right Hand (RH)
Flat Stock Section (Width × Thickness) 50 × 6 mm
Length X (Horizontal Working Reach) 65 mm
Length Y (Vertical Height) 223 mm
Mounting Hole Diameter Ø 10.5 mm (suited for M10 hardware)
Hole Center-to-Center Distance 76 mm
Application Table & Compatible Implements
Equipment Manufacturer Machine Category Compatible Models
Barbieri Rotary Tillers / Walk-Behind Cultivators RL, F1, S.1500, Zebra, Arco
Installation Technical Note: Assemble using grade 8.8 or 10.9 high-tensile hardware equipped with lock nuts or lock washers. Verify that the flange hole pattern matches the 76 mm center distance, and retighten all bolts after the initial hour of operation.
: 56941
Hurry! only 15 items left in stock.

Specific References

MPN
56941
