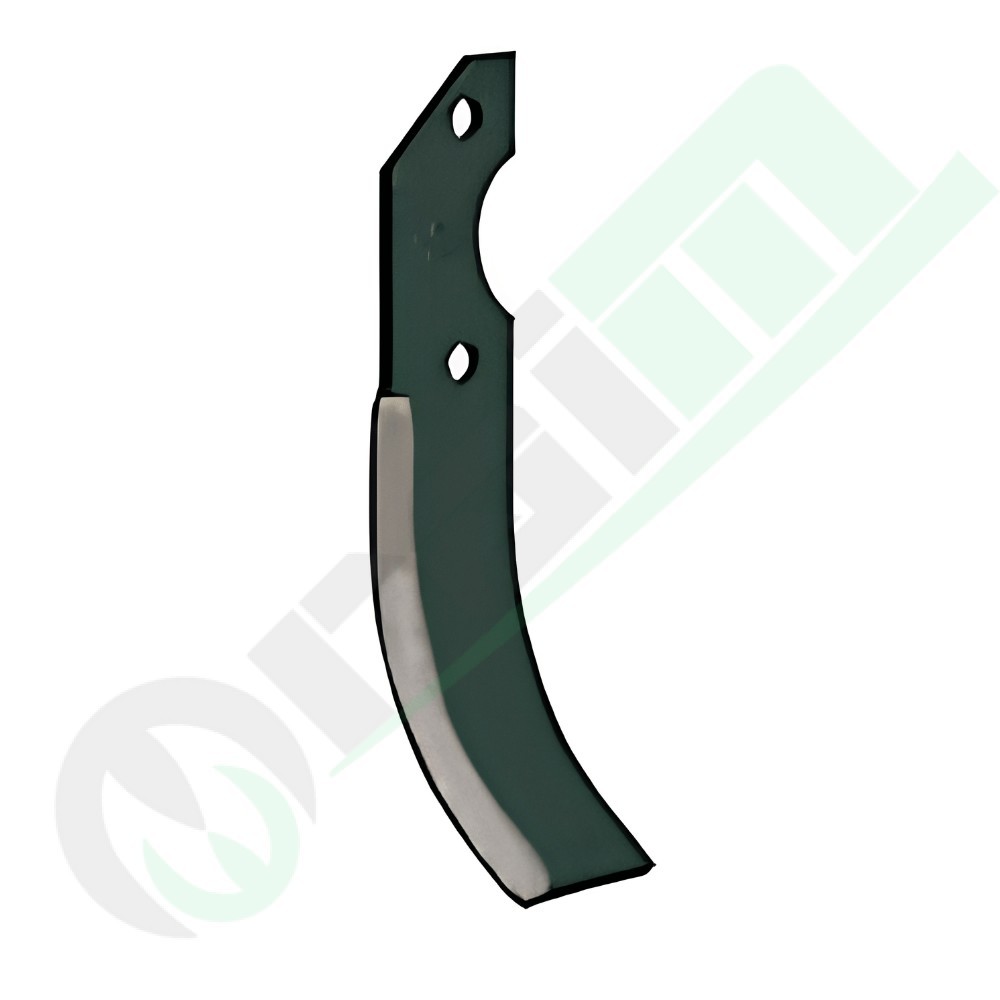

Right Curved Rotary Tiller Blade 45x5 mm for Barbieri RLG3 Gazzella Arco - 56931
Right-hand curved rotary tiller blade part number 56931 (flat bar 45x5 mm, hole center distance 68 mm, hole diameter 10.5 mm, dimensions 62x225 mm) for soil cultivation. High-wear resistant steel component engineered to fit Barbieri rotary tillers and walking tractors models RLG3, Gazzella, and Arco.
Read more ↓- Hardened Boron Alloy Steel
- Low-Resistance Curved Profile
- Precision 68 mm Hole Spacing
Sconto extra riservato ai clienti registrati
Accedi per sbloccare il codicePrezzo finale con coupon: €3.82
Description
Right-hand curved rotary tiller blade part number 56931 (flat bar 45x5 mm, hole center distance 68 mm, hole diameter 10.5 mm, dimensions 62x225 mm) for soil cultivation. High-wear resistant steel component engineered to fit Barbieri rotary tillers and walking tractors models RLG3, Gazzella, and Arco.
Key features

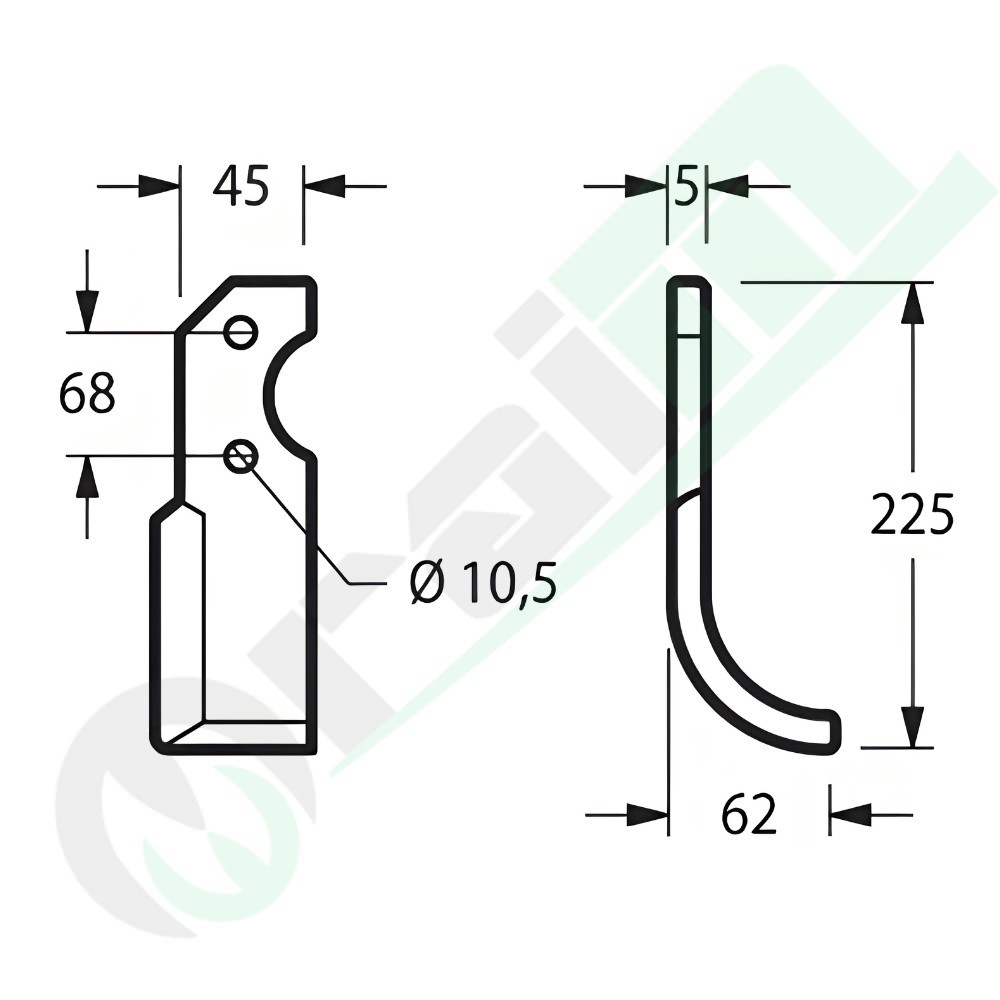

Specifications
| Product Code | 56931 |
|---|---|
| Component Type | Rotary tiller blade / Cultivator tine |
| Shape & Direction | Curved – Right Hand (RH) |
| Flat Stock Section (Width × Thickness) | 45 × 5 mm |
| Length X (Horizontal Working Reach) | 62 mm |
| Length Y (Vertical Height) | 225 mm |
| Mounting Hole Diameter | Ø 10.5 mm (suited for M10 hardware) |
| Hole Center-to-Center Distance | 68 mm |
