Left Curved Blade 35x5 Barbieri RL A3 Airone 56940 | Raim Store

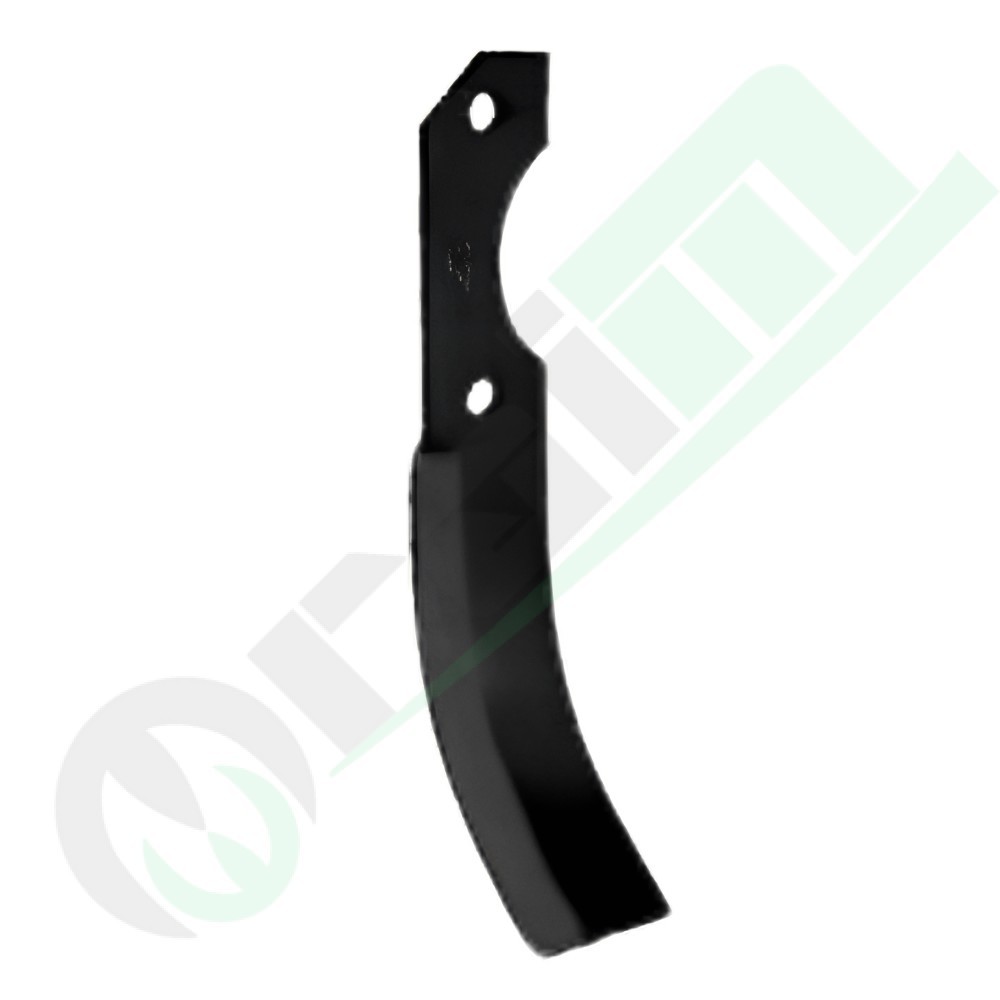

Left Curved Rotary Tiller Blade 35x5 mm for Barbieri RL A3 Airone Arco - 56940

star star star star star_border
Aftermarket
56940

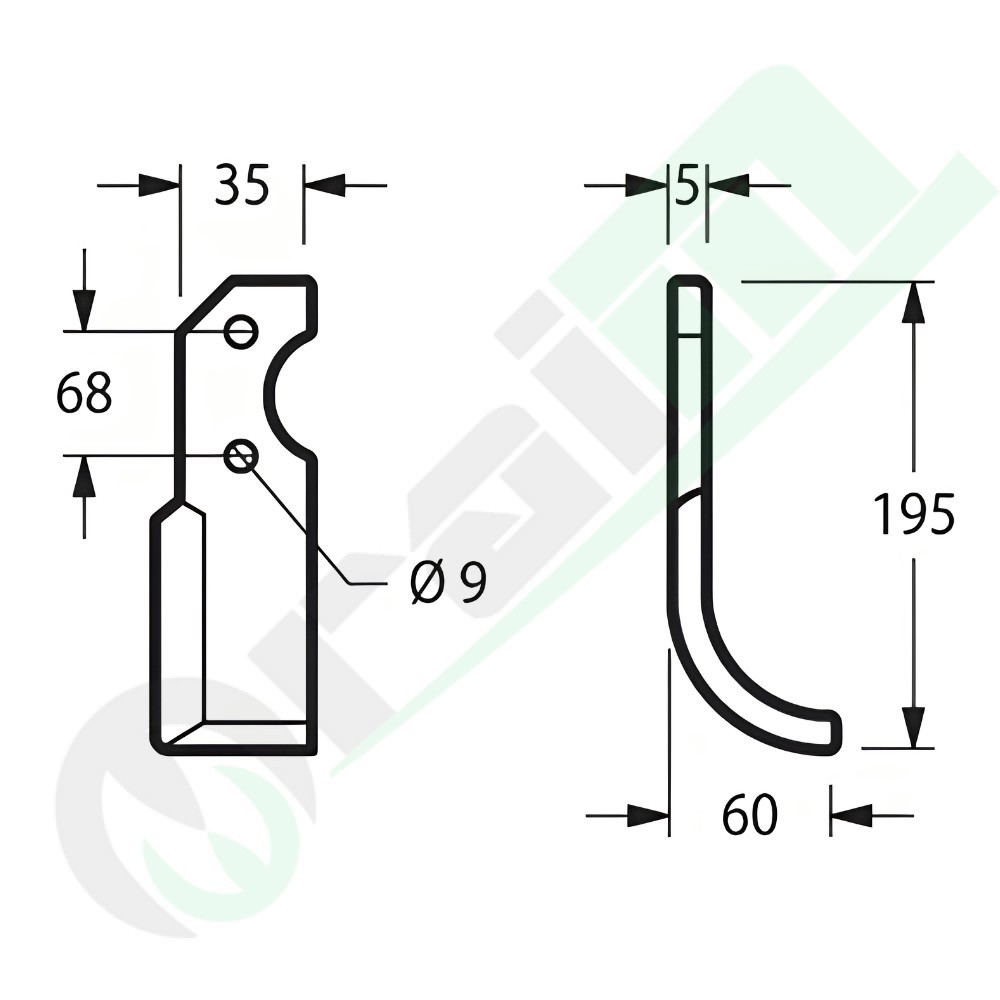

Left-hand curved rotary tiller blade part number 56940 (flat plate 35x5 mm, hole center distance 68 mm, hole diameter 9 mm, dimensions 60x195 mm) for soil preparation and cultivation. High-durability wear replacement part engineered to fit Barbieri rotary tillers and walking tractors models RL A3, Airone, and Arco.

Hurry! only 25 items left in stock.
€4.99
Tax included
COUPON
- € 0,10
Final price: € 4,89
Quantity

The minimum purchase order quantity for the product is 5.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Left Curved Rotary Cultivator Tine for Barbieri - Part Number: 56940

The Left Curved Rotary Cultivator Tine (part number 56940, flat steel section 35 × 5 mm, mounting hole diameter Ø 9 mm with 68 mm center-to-center distance, working dimensions X = 60 mm, Y = 195 mm) is an abrasion- and impact-resistant soil cultivation wear part. Designed with a left-hand curvature to balance rotor forces alongside the matching right-hand blade, it is adaptable to Barbieri rotary tillers and power cultivators, specifically for RL A3, Airone, and Arco models.
Key Features & Benefits
  • Forged & Heat-Treated Boron Steel: Manufactured from 35×5 mm high-grade alloy spring steel and hardened to optimize cutting edge retention and prevent fractures or bending during impact with buried stones.
  • Left Curved Helical Profile: The curved geometry (Y = 195 mm, X = 60 mm) promotes progressive ground entry and clean soil inversion while reducing engine load and fuel consumption.
  • Precision 9 mm Mounting Holes (68 mm Spacing): Dual 9 mm bolt holes are accurately machined to align with original Barbieri rotor flanges, ensuring a rigid, play-free seat.
  • Uniform Tilth Preparation: Delivers thorough seedbed pulverization, efficient weed incorporation, and uniform mixing of organic matter in vegetable gardens and greenhouse plots.
Technical Specifications
Product Code 56940
Component Type Rotary tiller blade / Cultivator tine
Shape & Direction Curved – Left Hand (LH)
Flat Stock Section (Width × Thickness) 35 × 5 mm
Length X (Horizontal Working Reach) 60 mm
Length Y (Vertical Height) 195 mm
Mounting Hole Diameter Ø 9 mm
Hole Center-to-Center Distance 68 mm
Matching Opposite Blade Part number 56939 (Right Hand)
Application Table & Compatible Implements
Equipment Manufacturer Equipment Category Compatible Models
Barbieri Rotary Tiller / Power Cultivator RL A3, Airone, Arco
Installation Technical Note: Assemble using high-tensile hardware with self-locking nuts or spring washers suited for 9 mm holes. Confirm hole spacing matches 68 mm center-to-center and re-tighten hardware after the first operating hour.
: 56940
Hurry! only 25 items left in stock.

Specific References

MPN
56939

Fast and safe shipping: each order is carefully packaged to ensure that the product arrives intact and in perfect condition.

We work with reliable couriers to offer an efficient, traceable and punctual service.

You will receive a link to follow the shipment at every stage, until delivery.

We use quality protective materials and, where possible, eco-friendly packaging.

Our priority is that your purchase arrives without surprises, ready to use.
