Left Curved Blade 40x5 Barbieri B 80 RL G1 56944 | Raim Store

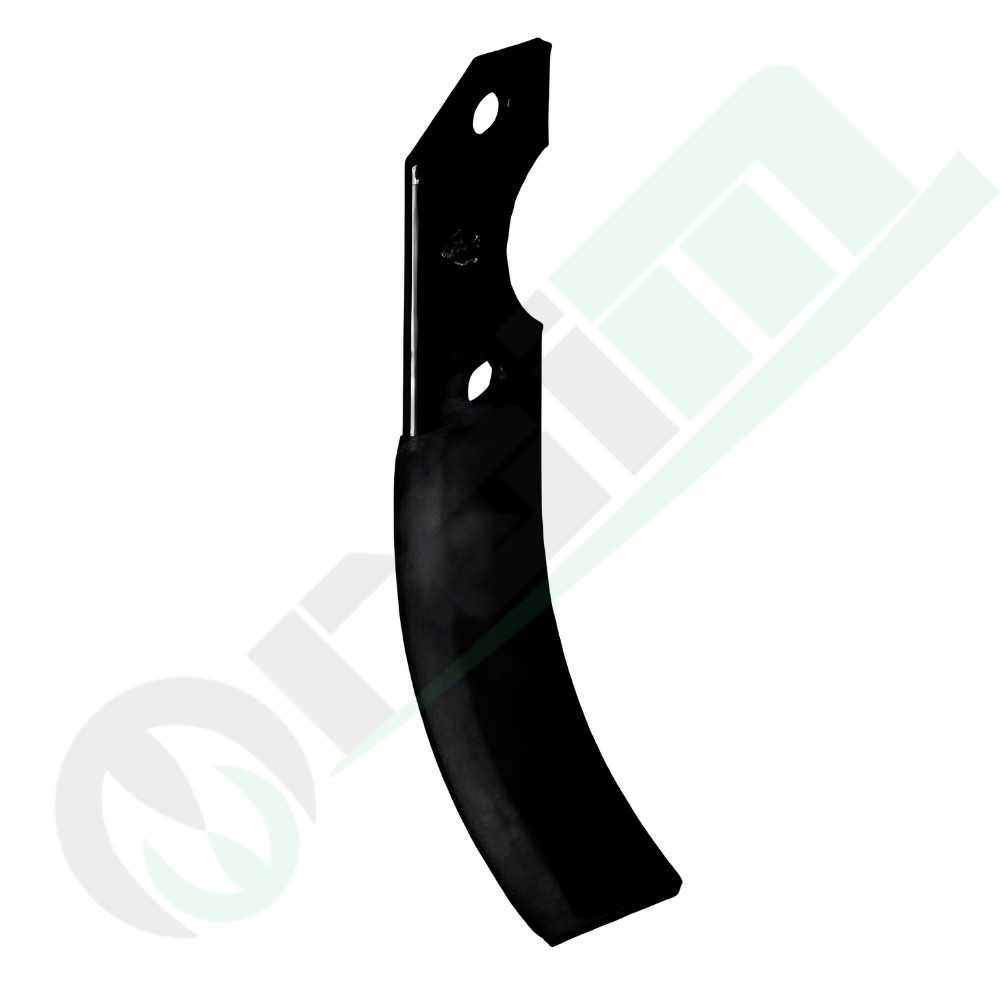

Left Curved Rotary Tiller Blade 40x5 mm for Barbieri B 80 Super RL G1 Arco - 56944

star star star star star_border
Aftermarket
56944

Left-hand curved rotary tiller blade part number 56944 (flat plate 40x5 mm, hole center distance 68 mm, hole diameter 10.5 mm, dimensions 63x205 mm) for soil tillage. Engineered from wear-resistant steel for heavy-duty field performance, specifically designed to fit Barbieri rotary tillers and walking tractors models B 80 Super, RL G1, and Arco.

Out of Stock
€3.99
Tax included
COUPON
- € 0,08
Final price: € 3,91
Quantity

The minimum purchase order quantity for the product is 5.

Processing in approximately 2-3 working days
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Left Curved Rotary Cultivator Tine for Barbieri - Part Number: 56944

The Left Curved Rotary Cultivator Tine (part number 56944, flat steel section 40 × 5 mm, mounting holes Ø 10.5 mm with 68 mm center-to-center distance, working dimensions X = 63 mm, Y = 205 mm) is an abrasion- and impact-resistant soil cultivation wear part. Engineered with a left-hand curvature to counterbalance rotor cutting forces alongside its matching right-hand partner, it is adaptable to Barbieri rotary tillers and power cultivators, specifically for B 80 Super, RL G1, and Arco models.
Key Features & Benefits
  • Forged & Heat-Treated Boron Steel: Fabricated from 40×5 mm high-grade alloy spring steel and through-hardened to optimize cutting edge durability, preventing deformation and fractures during impact with buried rocks.
  • Optimized Left Curved Profile: The helical left-hand geometry (Y = 205 mm, X = 63 mm) facilitates progressive ground entry and clean soil inversion while minimizing power demand and fuel consumption.
  • Precision 10.5 mm Mounting Holes (68 mm Spacing): Dual 10.5 mm bolt holes suited for M10 hardware are accurately machined to match factory Barbieri rotor holders, ensuring a rigid, play-free seat.
  • Uniform Tilth Preparation: Delivers thorough seedbed pulverization, efficient weed control, and uniform mixing of organic amendments in vegetable gardens and orchards.

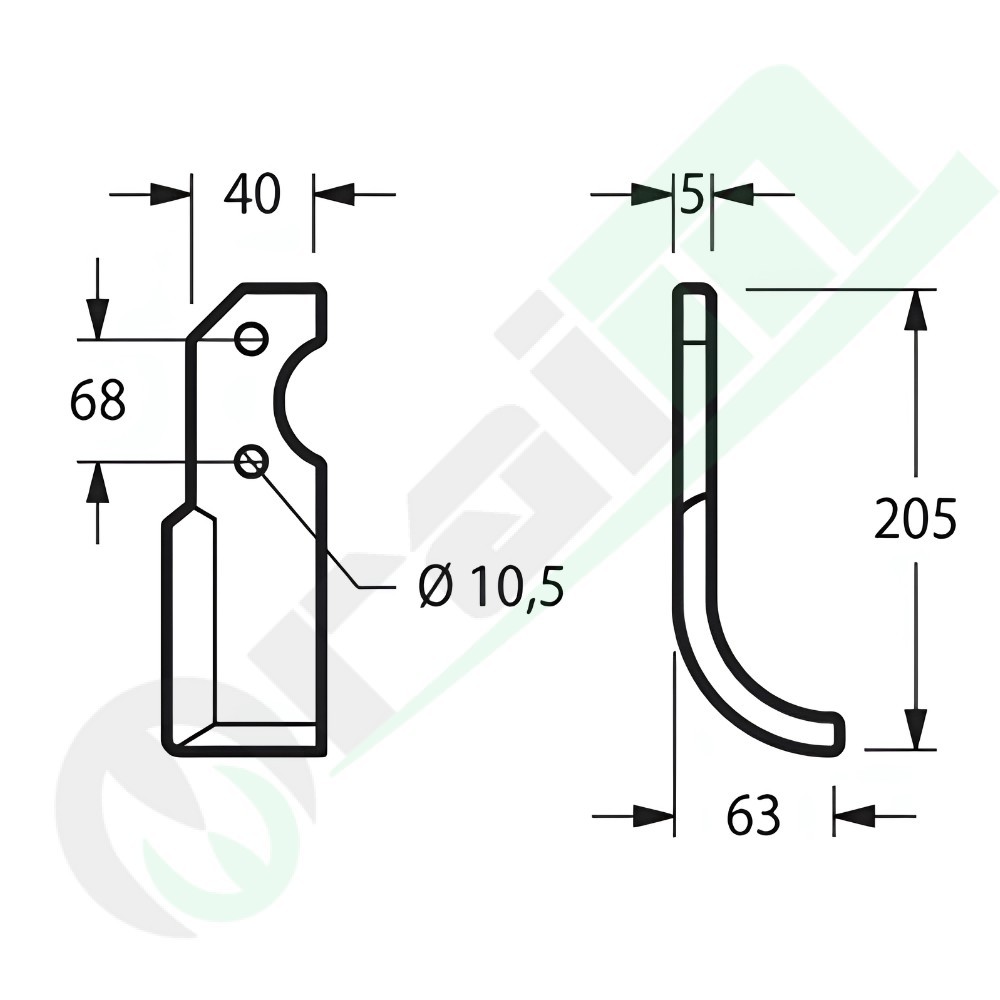

Technical Specifications
Product Code 56944
Component Type Rotary tiller blade / Cultivator tine
Shape & Direction Curved – Left Hand (LH)
Flat Stock Section (Width × Thickness) 40 × 5 mm
Length X (Horizontal Working Reach) 63 mm
Length Y (Vertical Height) 205 mm
Mounting Hole Diameter Ø 10.5 mm (suited for M10 hardware)
Hole Center-to-Center Distance 68 mm
Matching Opposite Blade Part number 56943 (Right Hand)
Application Table & Compatible Implements
Equipment Manufacturer Equipment Category Compatible Models
Barbieri Rotary Tiller / Power Cultivator B 80 Super, RL G1, Arco
Installation Technical Note: Assemble using grade 8.8 or higher fasteners with self-locking nuts. Verify that the rotor flange matches the 68 mm hole spacing, and check bolt tightness after the initial hour of field operation.
