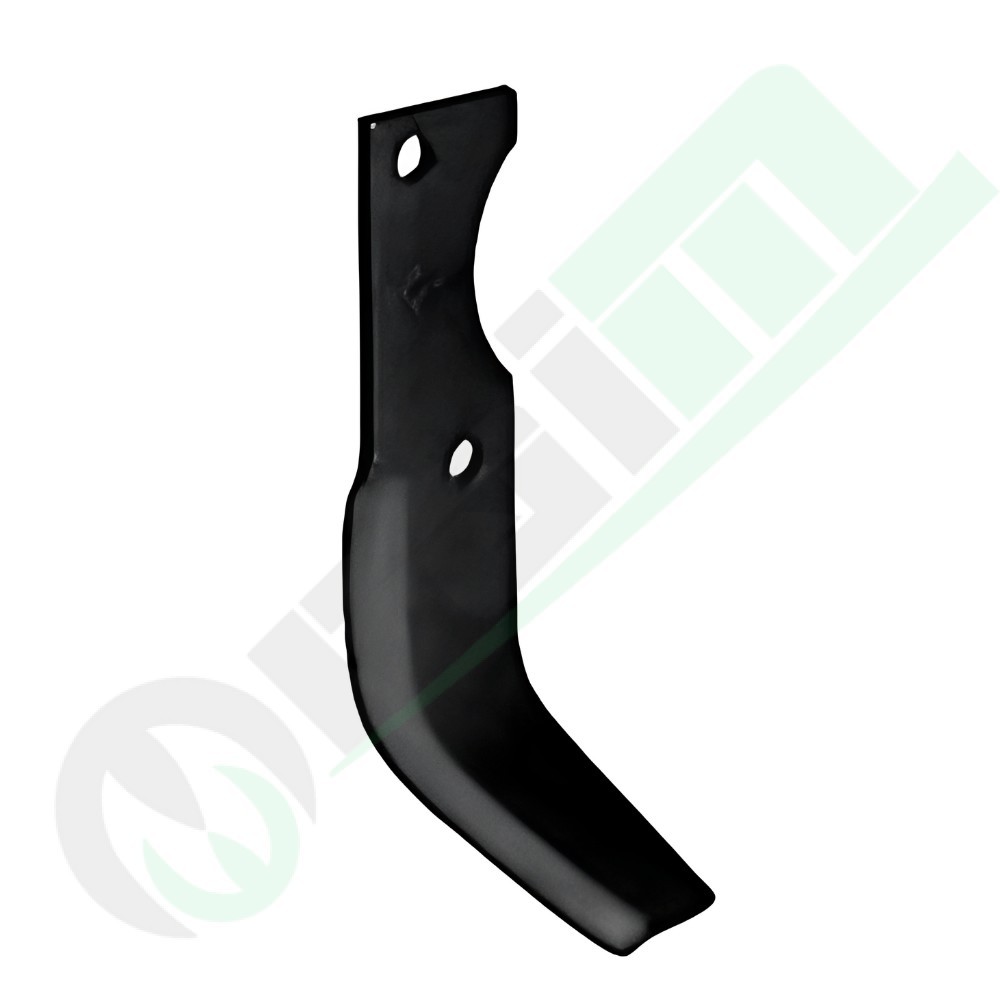

Left Curved Tiller Blade 45x5 mm for Barbieri MCG/10 Goldoni 21 Ref OEM 00008834 00008833 - 55609
Left Curved Tiller Blade 45x5 mm for Barbieri MCG/10 Goldoni 21 Ref OEM 00008834 00008833 - 55609
iPhotos are indicative: the product may differ in some details. Refer to the specifications.
AftermarketRef. OEM OEM

Left Curved Tiller Blade 45x5 mm for Barbieri MCG/10 Goldoni 21 Ref OEM 00008834 00008833 - 55609

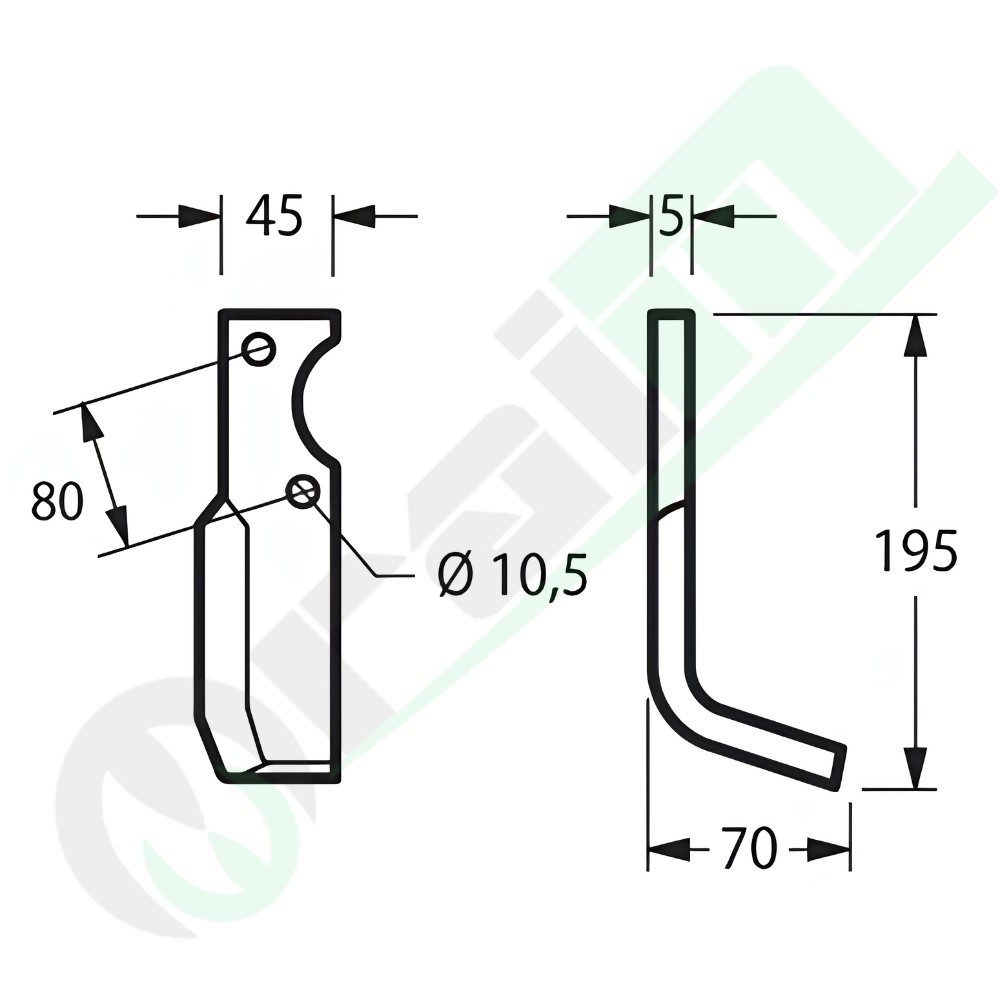

Left-hand curved rotary tiller blade part number 55609 (flat plate 45x5 mm, hole spacing 80 mm, hole diameter 10.5 mm, dimensions 70x195 mm) for soil preparation. Wear-resistant steel blade engineered for Barbieri MCG/10 Pioneer S.1200 and Goldoni series 21 tillers, replacing OEM 00008834 and 00008833.

  • Heat-Treated Forged Alloy Steel
  • Optimized Left Curved Profile
  • Precision 10.5 mm Mounting Holes (80 mm Spacing)
€2.90VAT incl.
Coupon -€0.06 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €2.84

Not sure it fits?Message us with your tractor model
WhatsApp
Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Left-hand curved rotary tiller blade part number 55609 (flat plate 45x5 mm, hole spacing 80 mm, hole diameter 10.5 mm, dimensions 70x195 mm) for soil preparation. Wear-resistant steel blade engineered for Barbieri MCG/10 Pioneer S.1200 and Goldoni series 21 tillers, replacing OEM 00008834 and 00008833.

Key features

Heat-Treated Forged Alloy SteelFabricated from 45×5 mm high-grade alloy spring steel and through-hardened to preserve cutting edge geometry, preventing deformation and brittle fracture during impact with stones.
Optimized Left Curved ProfileThe curved geometry (Y = 195 mm, X = 70 mm) promotes progressive ground entry and clean soil inversion while reducing engine load and fuel consumption.
Precision 10.5 mm Mounting Holes (80 mm Spacing)Dual 10.5 mm bolt holes suited for M10 hardware are accurately machined to match factory Barbieri and Goldoni rotor flanges, providing a rigid, play-free seat.
Uniform Tilth PreparationDelivers thorough seedbed pulverization, efficient weed incorporation, and uniform mixing of organic amendments across orchards, vineyards, and vegetable plots.

Specifications

Product Code55609
Component TypeRotary tiller blade / Cultivator tine
Shape & DirectionCurved – Left Hand (LH)
Flat Stock Section (Width × Thickness)45 × 5 mm
Length X (Horizontal Working Reach)70 mm
Length Y (Vertical Height)195 mm
Mounting Hole DiameterØ 10.5 mm (suited for M10 hardware)
Hole Center-to-Center Distance80 mm
Adaptable OEM Part Numbers00008834, 00008833
Matching Opposite BladePart number 55172 (Right Hand)
