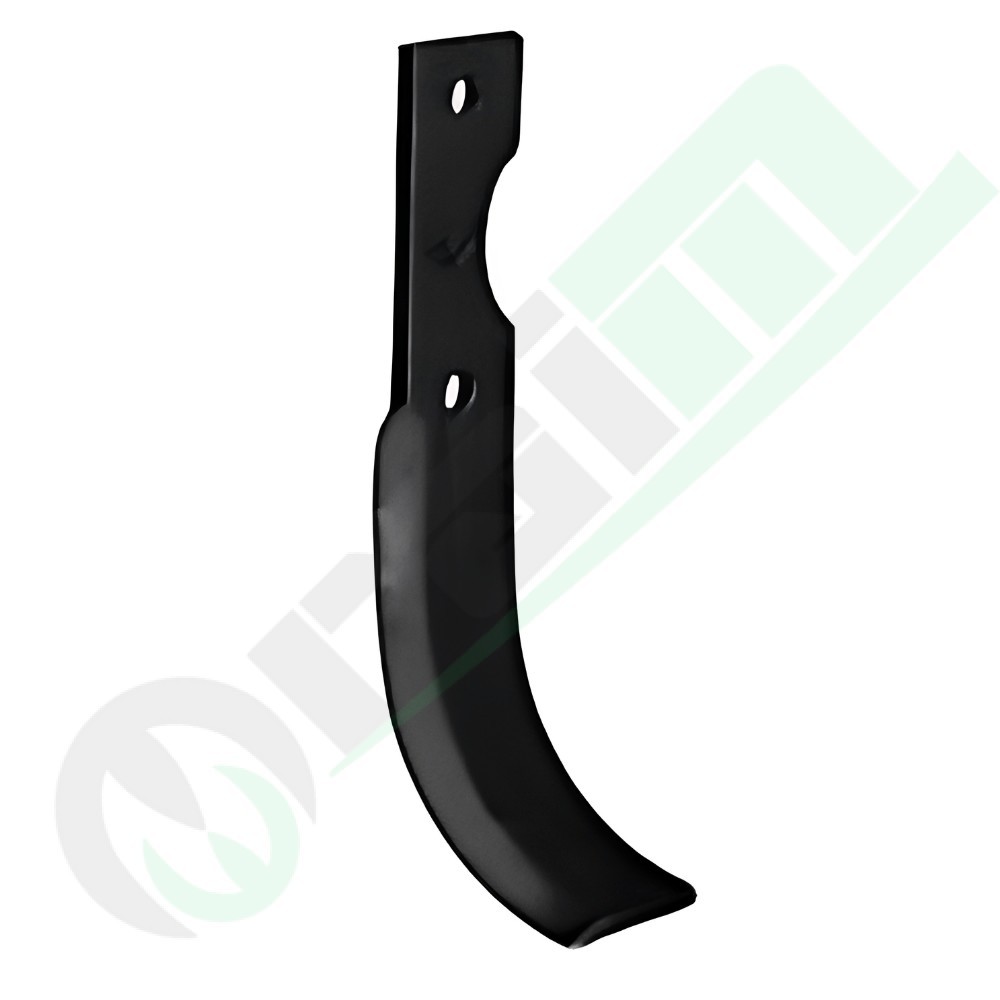

Right Curved Blade 40x5 Barbieri Benassi Z3 56945 | Raim Store

Right Curved Rotary Tiller Blade 40x5 mm for Barbieri Cortina Benassi Z3 BL 75 85 Arco - 56945

star star star star star_border
Aftermarket
56945

Right-hand curved rotary tiller blade part number 56945 (flat plate 40x5 mm, hole center distance 68 mm, hole diameter 9 mm, dimensions 60x195 mm) for soil tillage. Engineered from high-strength wear-resistant steel, specifically designed to fit Barbieri Cortina Arco cultivators and Benassi walking tractors series Z3, BL 75, and BL 85.

Hurry! only 25 items left in stock.
€3.90
Tax included
COUPON
- € 0,08
Final price: € 3,82
Quantity

The minimum purchase order quantity for the product is 5.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Right Curved Rotary Cultivator Tine for Barbieri / Benassi - Part Number: 56945

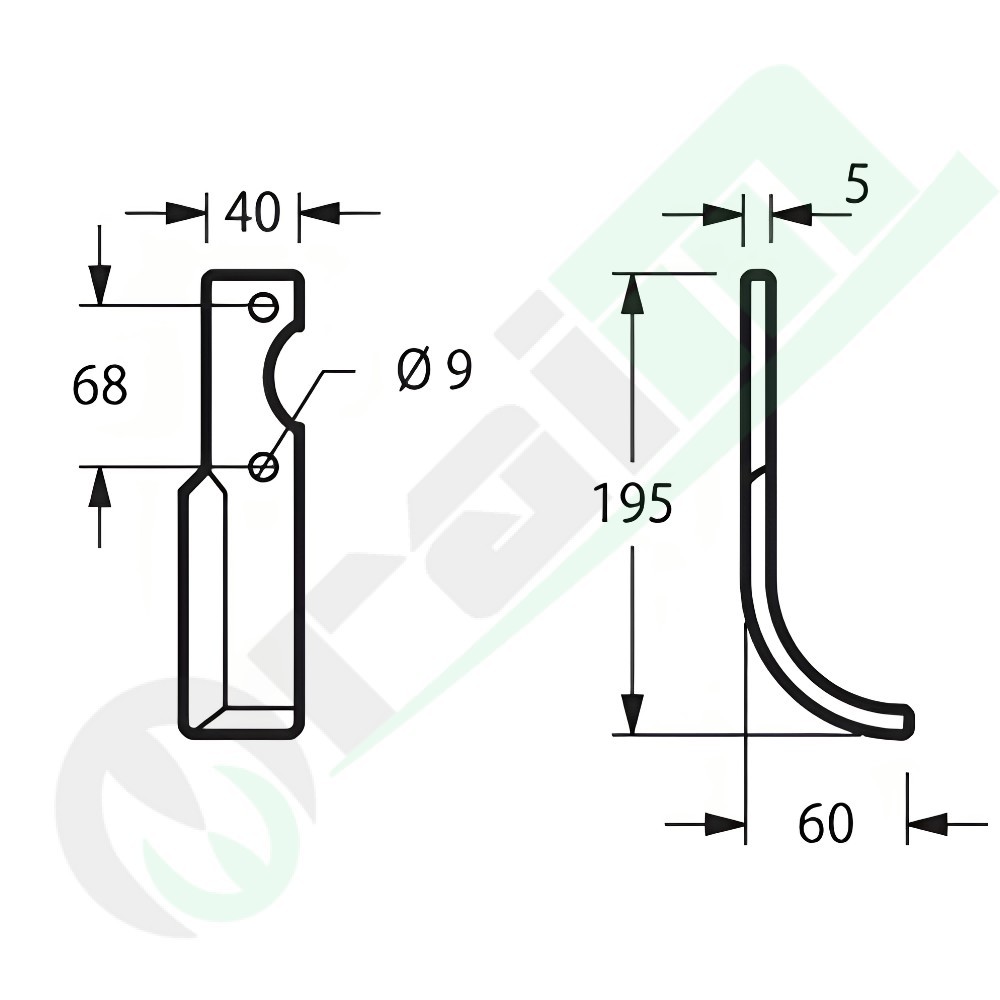

The Right Curved Rotary Cultivator Tine (part number 56945, flat steel section 40 × 5 mm, mounting hole diameter Ø 9 mm with 68 mm center-to-center distance, working dimensions X = 60 mm, Y = 195 mm) is an abrasion- and shock-resistant soil engagement wear part. Engineered for smooth ground penetration and uniform soil pulverization, it is adaptable to Barbieri tillers (model Cortina Arco) as well as Benassi power cultivators (models Z3, BL 75 Arco, BL 85 Arco).
Key Features & Benefits
  • Forged & Heat-Treated Spring Steel: Formed from 40×5 mm high-tensile alloy steel and through-hardened to preserve cutting edge geometry, preventing deformation and brittle fracture during impact with stones.
  • Right Curved Helical Profile: The curved geometry (Y = 195 mm, X = 60 mm) facilitates progressive ground slicing and thorough soil inversion while minimizing power demand and fuel consumption.
  • Precision 9 mm Mounting Holes (68 mm Spacing): Dual 9 mm bolt holes are accurately machined to match Barbieri and Benassi factory rotor flanges, providing a rigid, play-free seat.
  • Superior Soil Tilth: Delivers thorough seedbed pulverization, efficient weed incorporation, and uniform mixing of organic amendments in vegetable gardens, greenhouses, and smallholdings.
Technical Specifications
Product Code 56945
Component Type Rotary tiller blade / Cultivator tine
Shape & Direction Curved – Right Hand (RH)
Flat Stock Section (Width × Thickness) 40 × 5 mm
Length X (Horizontal Working Reach) 60 mm
Length Y (Vertical Height) 195 mm
Mounting Hole Diameter Ø 9 mm
Hole Center-to-Center Distance 68 mm
Application Table & Compatible Implements
Manufacturer Equipment Category Compatible Models
Barbieri Rotary Tiller / Walk-Behind Cultivator Cortina Arco
Benassi Rotary Tiller / Walk-Behind Cultivator Z3, BL 75 Arco, BL 85 Arco
Installation Technical Note: Assemble using high-tensile hardware with self-locking nuts or spring washers suited for 9 mm holes. Confirm that hole spacing matches 68 mm center-to-center and re-tighten hardware after the first operating hour.
: 56945
Hurry! only 25 items left in stock.

Specific References

MPN
56945

Fast and safe shipping: each order is carefully packaged to ensure that the product arrives intact and in perfect condition.

We work with reliable couriers to offer an efficient, traceable and punctual service.

You will receive a link to follow the shipment at every stage, until delivery.

We use quality protective materials and, where possible, eco-friendly packaging.

Our priority is that your purchase arrives without surprises, ready to use.
