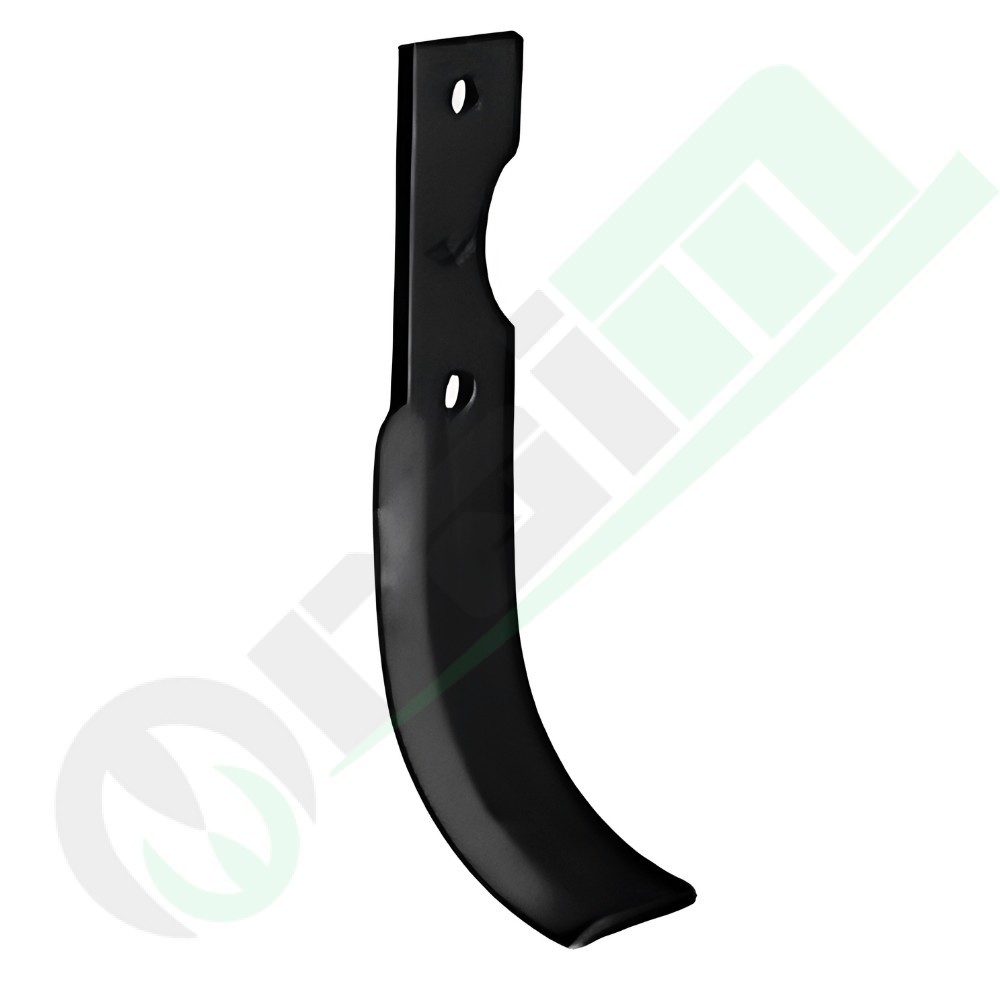

Left Curved Blade 40x5 Barbieri Benassi Z3 56946 | Raim Store

Left Curved Rotary Tiller Blade 40x5 mm for Barbieri Cortina Benassi Z3 BL 75 85 Arco - 56946

star star star star star_border
Aftermarket
56946

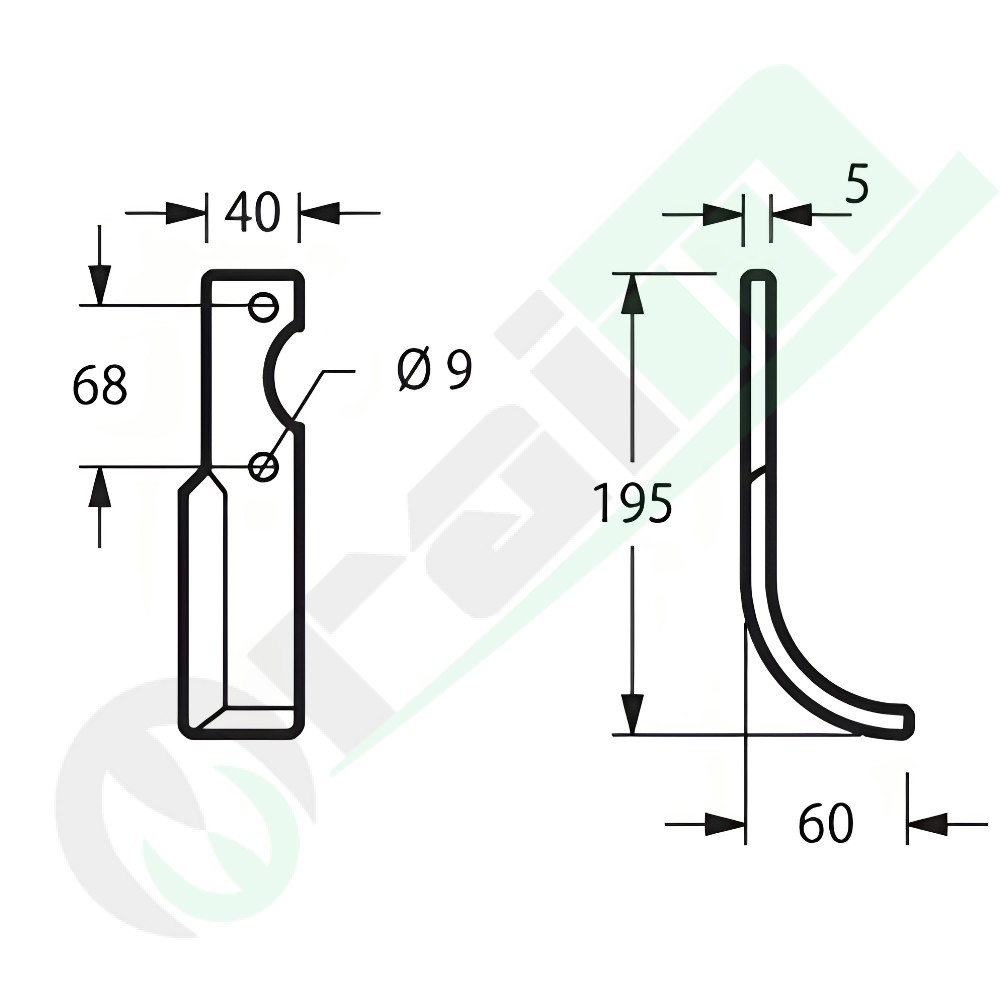

Left-hand curved rotary tiller blade part number 56946 (flat plate 40x5 mm, hole center distance 68 mm, hole diameter 9 mm, dimensions 60x195 mm) for soil tillage. Engineered from high-strength wear-resistant steel, specifically designed to fit Barbieri Cortina Arco cultivators and Benassi walking tractors series Z3, BL 75, and BL 85.

Hurry! only 25 items left in stock.
€3.90
Tax included
COUPON
- € 0,08
Final price: € 3,82
Quantity

The minimum purchase order quantity for the product is 5.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Left Curved Rotary Cultivator Tine for Barbieri / Benassi - Part Number: 56946

The Left Curved Rotary Cultivator Tine (part number 56946, flat steel section 40 × 5 mm, mounting hole diameter Ø 9 mm with 68 mm center-to-center distance, working dimensions X = 60 mm, Y = 195 mm) is an abrasion- and shock-resistant soil engagement wear part. Designed with a left-hand curvature to balance rotor forces alongside the matching right-hand blade, it is adaptable to Barbieri tillers (model Cortina Arco) as well as Benassi power cultivators (models Z3, BL 75 Arco, BL 85 Arco).
Key Features & Benefits
  • Forged & Heat-Treated Spring Steel: Formed from 40×5 mm high-tensile alloy steel and through-hardened to preserve cutting edge geometry, preventing deformation and brittle fracture during impact with stones.
  • Left Curved Helical Profile: The curved geometry (Y = 195 mm, X = 60 mm) facilitates progressive ground slicing and thorough soil inversion while minimizing power demand and fuel consumption.
  • Precision 9 mm Mounting Holes (68 mm Spacing): Dual 9 mm bolt holes are accurately machined to match Barbieri and Benassi factory rotor flanges, providing a rigid, play-free seat.
  • Superior Soil Tilth: Delivers thorough seedbed pulverization, efficient weed incorporation, and uniform mixing of organic amendments in vegetable gardens, greenhouses, and smallholdings.
Technical Specifications
Product Code 56946
Component Type Rotary tiller blade / Cultivator tine
Shape & Direction Curved – Left Hand (LH)
Flat Stock Section (Width × Thickness) 40 × 5 mm
Length X (Horizontal Working Reach) 60 mm
Length Y (Vertical Height) 195 mm
Mounting Hole Diameter Ø 9 mm
Hole Center-to-Center Distance 68 mm
Matching Opposite Blade Part number 56945 (Right Hand)
Application Table & Compatible Implements
Manufacturer Equipment Category Compatible Models
Barbieri Rotary Tiller / Walk-Behind Cultivator Cortina Arco
Benassi Rotary Tiller / Walk-Behind Cultivator Z3, BL 75 Arco, BL 85 Arco
Installation Technical Note: Assemble using high-tensile hardware with self-locking nuts or spring washers suited for 9 mm holes. Confirm that hole spacing matches 68 mm center-to-center and re-tighten hardware after the first operating hour.
