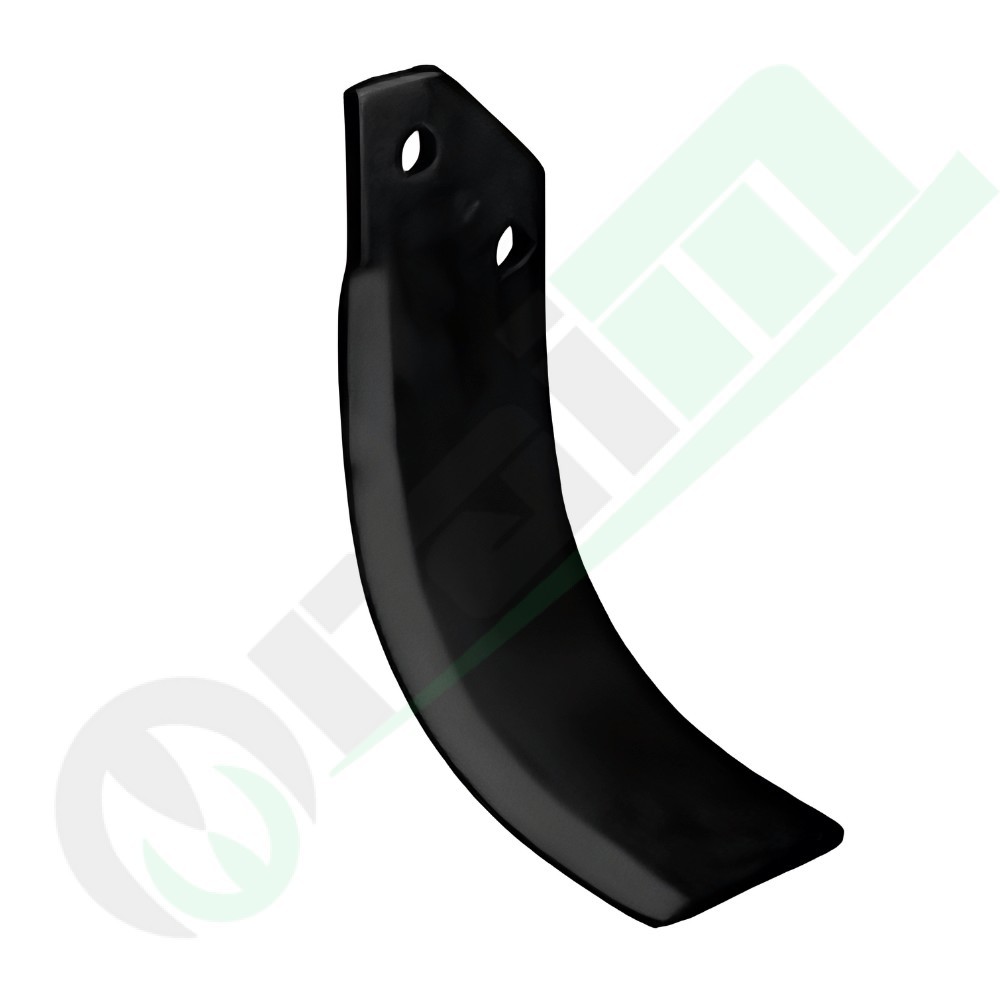

Right Curved Tiller Blade 60x6 mm for Barbieri Fort Goldoni 29 HP 16 18 Ref 00005324 - 56949
Right Curved Tiller Blade 60x6 mm for Barbieri Fort Goldoni 29 HP 16 18 Ref 00005324 - 56949
iPhotos are indicative: the product may differ in some details. Refer to the specifications.
AftermarketRef. OEM OEM

Right Curved Tiller Blade 60x6 mm for Barbieri Fort Goldoni 29 HP 16 18 Ref 00005324 - 56949

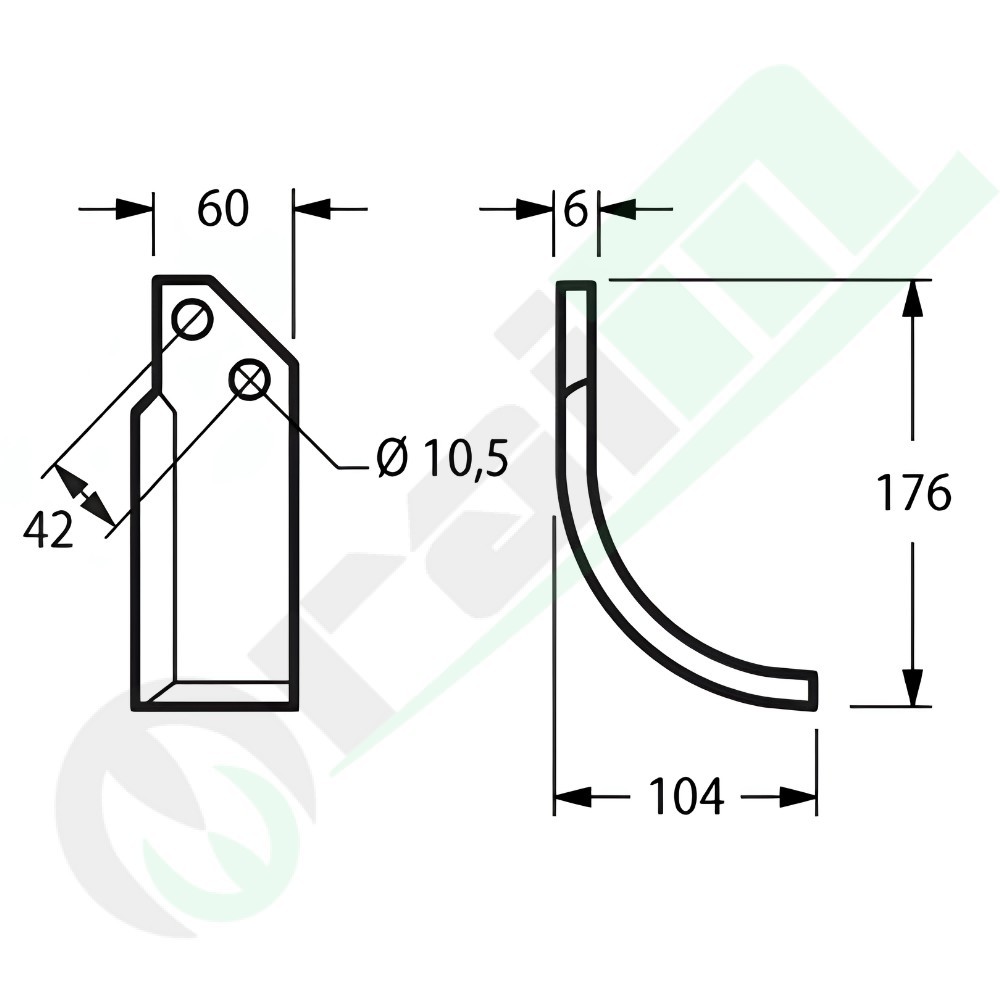

Right-hand curved rotary tiller blade part number 56949 (flat plate 60x6 mm, hole spacing 42 mm, hole diameter 10.5 mm, dimensions 104x176 mm) for heavy soil cultivation. Wear-resistant steel blade engineered for Barbieri MCG/18 Pantera, Fort Corsare F/700, and Goldoni 29 HP 16-18 rotary tillers, replacing OEM 00005324 and 00005323.

  • Forged & Heat-Treated Boron Steel
  • Wide-Reach Right Curved Geometry (X = 104 mm)
  • Precision 10.5 mm Mounting Holes (42 mm Spacing)
€5.90VAT incl.
Coupon -€0.12 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €5.78

Not sure it fits?Message us with your tractor model
WhatsApp
Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Right-hand curved rotary tiller blade part number 56949 (flat plate 60x6 mm, hole spacing 42 mm, hole diameter 10.5 mm, dimensions 104x176 mm) for heavy soil cultivation. Wear-resistant steel blade engineered for Barbieri MCG/18 Pantera, Fort Corsare F/700, and Goldoni 29 HP 16-18 rotary tillers, replacing OEM 00005324 and 00005323.

Key features

Forged & Heat-Treated Boron SteelForged from wide 60×6 mm high-tensile spring steel and through-hardened to preserve cutting edge geometry, preventing deformation and brittle fracture during impact with stones.
Wide-Reach Right Curved Geometry (X = 104 mm)The aggressive curved profile promotes progressive ground slicing and thorough soil inversion while reducing engine drag and fuel consumption.
Precision 10.5 mm Mounting Holes (42 mm Spacing)Dual 10.5 mm bolt holes suited for M10 hardware are accurately machined to match factory rotor flanges, providing a rigid, play-free seat.
Uniform Tilth PreparationDelivers thorough seedbed pulverization, efficient weed incorporation, and uniform mixing of organic amendments across orchards, vineyards, and open fields.

Specifications

Product Code56949
Component TypeRotary tiller blade / Cultivator tine
Shape & DirectionCurved – Right Hand (RH)
Flat Stock Section (Width × Thickness)60 × 6 mm
Length X (Horizontal Working Reach)104 mm
Length Y (Vertical Height)176 mm
Mounting Hole DiameterØ 10.5 mm (suited for M10 hardware)
Hole Center-to-Center Distance42 mm
Adaptable OEM Part Numbers00005324, 00005323
