Left Curved Blade 60x6 Barbieri Fort Goldoni 56950 | Raim Store

Left Curved Tiller Blade 60x6 mm for Barbieri Fort Goldoni 29 HP 16 18 Ref 00005324 - 56950

star star star star star_border
Aftermarket
56950

Left-hand curved rotary tiller blade part number 56950 (flat plate 60x6 mm, hole spacing 42 mm, hole diameter 10.5 mm, dimensions 104x176 mm) for heavy soil cultivation. Wear-resistant steel blade engineered for Barbieri MCG/18 Pantera, Fort Corsare F/700, and Goldoni 29 HP 16-18 rotary tillers, replacing OEM 00005324 and 00005323.

Hurry! only 25 items left in stock.
€5.90
Tax included
COUPON
- € 0,12
Final price: € 5,78
Quantity

The minimum purchase order quantity for the product is 5.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

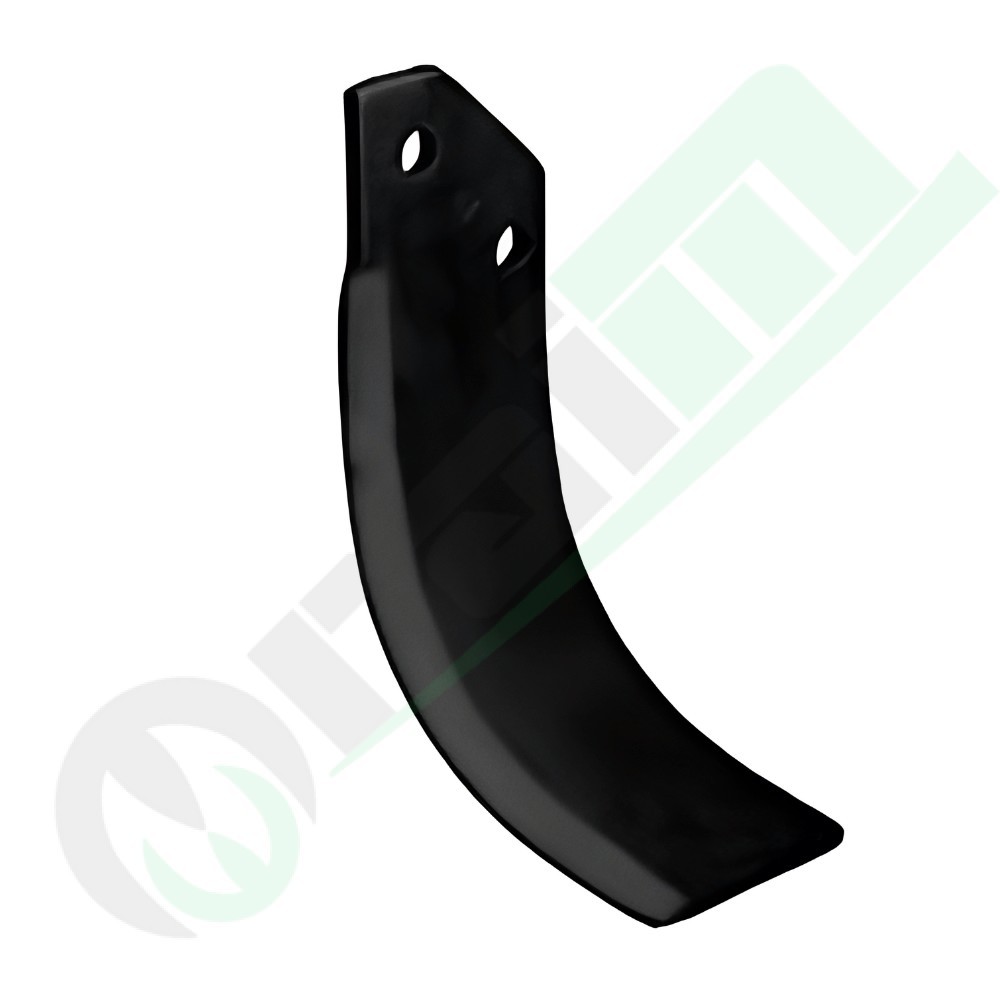

Left Curved Rotary Tiller Blade for Barbieri / Fort / Goldoni - Part Number: 56950

The Left Curved Rotary Tiller Blade (part number 56950, heavy-duty flat steel section 60 × 6 mm, mounting holes Ø 10.5 mm with 42 mm center-to-center distance, working dimensions X = 104 mm, Y = 176 mm, adaptable OEM references 00005324 and 00005323) is an abrasion- and shock-resistant soil cultivation wear part. Designed with a left-hand curvature to balance rotor forces alongside the matching right-hand blade, it is adaptable to rotary tillers and two-wheel tractors from Barbieri (model MCG/18 Pantera Arco), Fort (model Corsare F/700 Arco), and Goldoni (models 29, HP 16, HP 18 Arco).
Key Features & Benefits
  • Forged & Heat-Treated Boron Steel: Forged from wide 60×6 mm high-tensile spring steel and through-hardened to preserve cutting edge geometry, preventing deformation and brittle fracture during impact with stones.
  • Wide-Reach Left Curved Geometry (X = 104 mm): The aggressive left curved profile promotes progressive ground slicing and thorough soil inversion while reducing engine drag and fuel consumption.
  • Precision 10.5 mm Mounting Holes (42 mm Spacing): Dual 10.5 mm bolt holes suited for M10 hardware are accurately machined to match factory rotor flanges, providing a rigid, play-free seat.
  • Uniform Tilth Preparation: Delivers thorough seedbed pulverization, efficient weed incorporation, and uniform mixing of organic amendments across orchards, vineyards, and open fields.

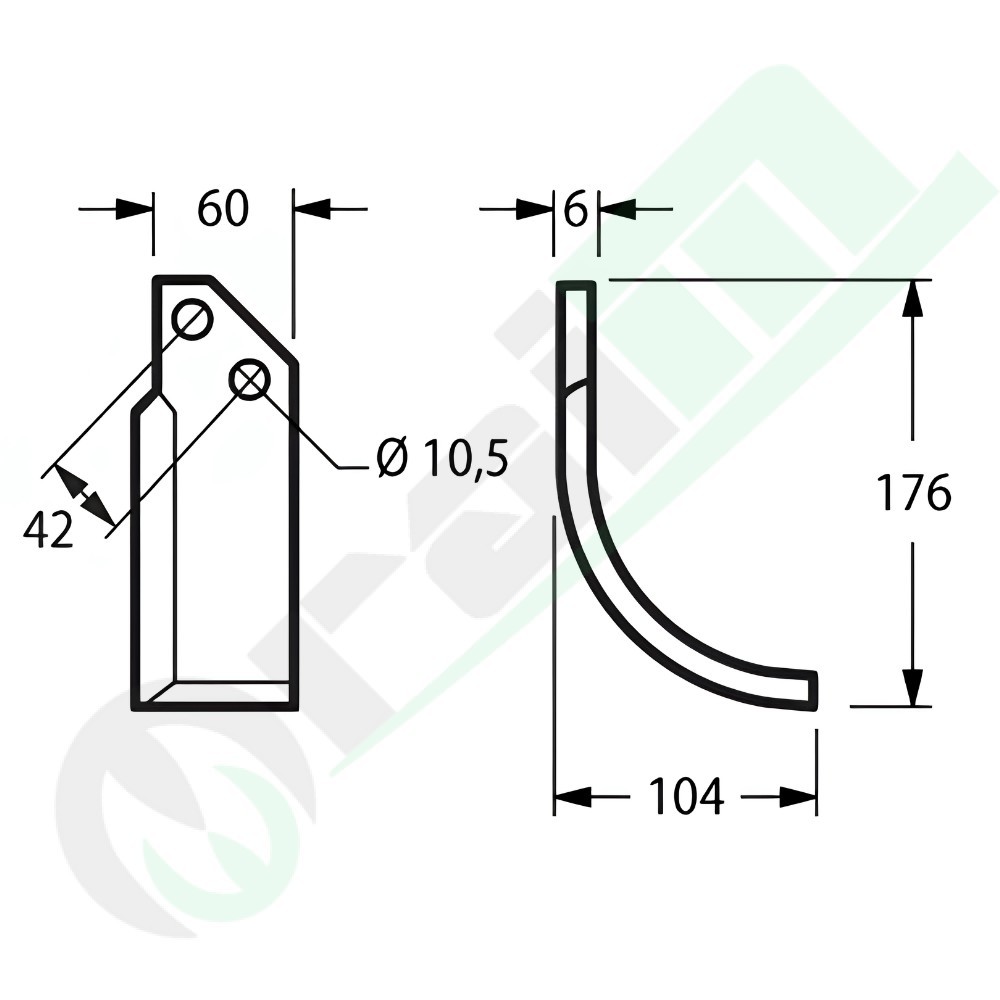

Technical Specifications
Product Code 56950
Component Type Rotary tiller blade / Cultivator tine
Shape & Direction Curved – Left Hand (LH)
Flat Stock Section (Width × Thickness) 60 × 6 mm
Length X (Horizontal Working Reach) 104 mm
Length Y (Vertical Height) 176 mm
Mounting Hole Diameter Ø 10.5 mm (suited for M10 hardware)
Hole Center-to-Center Distance 42 mm
Adaptable OEM Part Numbers 00005324, 00005323
Matching Opposite Blade Part number 56949 (Right Hand)
Application Table & Compatible Implements
Manufacturer Equipment Category Compatible Models
Barbieri Rotary Tiller / Power Cultivator MCG/18 Pantera Arco
Fort Rotary Tiller Corsare F/700 Arco
Goldoni Rotary Tiller / Two-Wheel Tractor 29 Arco, HP 16 Arco, HP 18 Arco
Installation Technical Note: Assemble using grade 8.8 or 10.9 high-tensile hardware with self-locking nuts or spring washers. Confirm that hole spacing matches 42 mm center-to-center and re-tighten hardware after the first operating hour.
: 56950
Hurry! only 25 items left in stock.

Specific References

MPN
56949
