Fiat 780 NH TL Case JXU Hydraulic Top Link 620mm 50656 | Raim Store

Hydraulic Top Link Cylinder for Fiat, New Holland, Case Check JXU, and Same Silver Part Number 50656

star star star star star_border
Aftermarket
50656

The heavy-duty hydraulic top link cylinder (code 50656) features a minimum length of 620 mm, 320 mm stroke, a powerful 70 mm bore, and a 35 mm rod (weight 12.54 kg). Equipped with a dual Ø 25.4 mm ball joint and a 3/8" check valve, this reinforced cylinder provides an excellent fit for medium-to-high power utility tractors. It is highly adaptable to Fiat (80 Series including 580 to 980, and L Series L60 to L95), New Holland (TL & TLE Brasil Series), Case IH JXU (70U, 90U, 100U), Same Silver 90, Hurlimann XT 110, Landini (Atlas 75, Ghibli 90), and classic Massey Ferguson (100 & 200 Series) tractors.

Hurry! only 2 items left in stock.
€239.00
Tax included
COUPON
- € 4,78
Final price: € 234,22
Quantity

Last 2 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

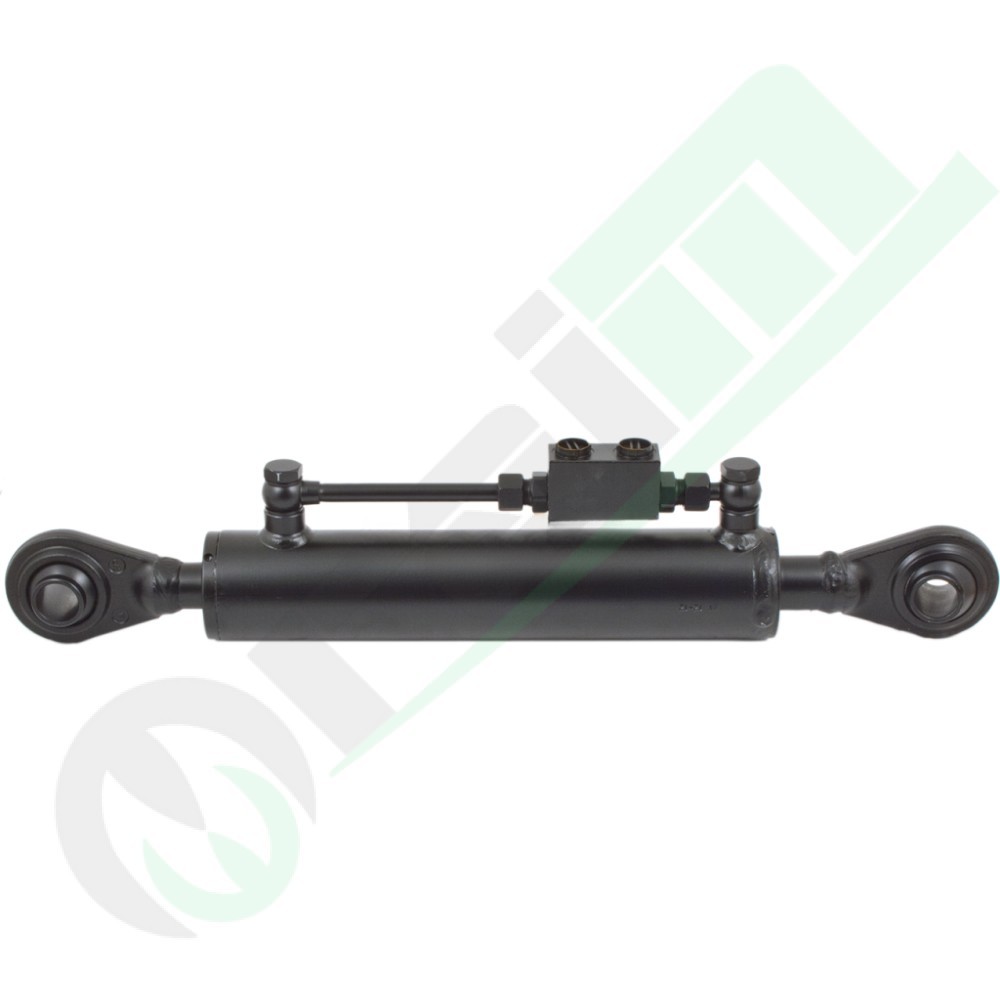

Hydraulic Top Link Cylinder 620x70x35 with Dual Ball Joints - Code 50656

The heavy-duty hydraulic top link cylinder (Product Code: 50656) is a professional-grade hydraulic actuator engineered for structural coupling, real-time geometry adjustment, and secure load retention of heavy three-point linkage implements. Featuring a reinforced, oversized barrel configuration (minimum retracted length of 620 mm and a net weight of 12.54 kg) tailored to match the technical specifications of utility and field tractors, this dual-acting mechanism allows operators to adjust implement pitch angles dynamically from the cabin.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, sealing fluid within the cylinder chambers to maintain the structural rod configuration even under sudden line pressure drops or hydraulic hose ruptures, shielding heavy suspended field implements from accidental dropping. The hardware layout features a symmetrical Category 2 configuration, with standard spherical knuckle joint swiveling ball eyes on both the cylinder base side (tractor linkage) and the rod end side (implement linkage), each machined with a 25.4 mm pin bore hole. The combination of an oversized 70 mm cylinder bore diameter, a high-tensile 35 mm micro-polished chrome rod, and a generous 320 mm stroke provides massive mechanical pushing force along with great long-stroke versatility under tough working open-field conditions.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Brand Compatibility Case IH / Fiat / New Holland / Same / Landini / MF (Adaptable)
Minimum Length (Retracted) 620 mm
Cylinder Stroke 320 mm
Cylinder Bore Diameter (D) 70 mm
Piston Rod Diameter (d) 35 mm
Piston Rod End Fitting (F) Spherical knuckle joint swiveling ball eye Ø 25.4 mm (Cat. 2)
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 25.4 mm (Cat. 2)
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight 12.54 kg
Product Code 50656
Tractor Applications & Compatibility
Manufacturer Compatible Series & Models
CASE IH JXU SERIES: JX 100U, JX 70U, JX 90U
FIAT 80 / 500 SERIES: 580, 680, 780, 880, 980
L SERIES: L60, L65, L75, L85, L95
HURLIMANN XT SERIES: XT (Stage 3A), XT 110 V-drive (Stage 3A)
LANDINI ATLAS / ATLANTIS (2000-2004): Atlas 75, Atlantis 75
GHIBLI (2000-2004): Ghibli 90
MASSEY FERGUSON 100 SERIES: 135, 165, 168 | 200 SERIES: 240, 245, 255
NEW HOLLAND TL SERIES: TL 60 Brasil, TL 65, TL 95 Brasil
TLE SERIES: TL 75E Brasil, TL 85E Brasil
SAME SILVER SERIES: Silver 90
: 50656
