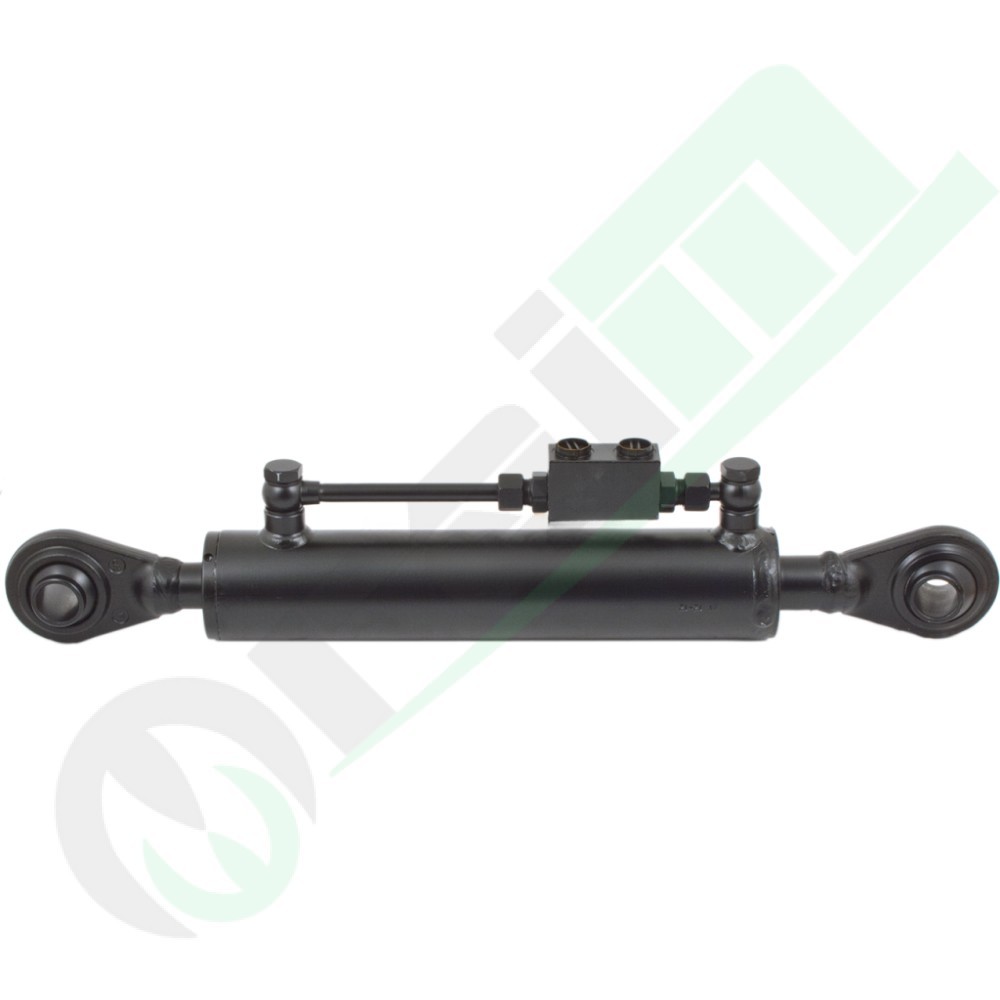

Hydraulic Top Link Cylinder 600x70x35 with Dual Ball Joints - Code 50617
The heavy-duty hydraulic top link cylinder (Product Code: 50617) is a professional-grade hydraulic actuator engineered for structural coupling, real-time geometry adjustment, and secure load retention of heavy three-point linkage implements. Featuring a reinforced, oversized barrel configuration (minimum retracted length of 600 mm and a net weight of 12.17 kg) tailored to match the technical specifications of standard utility, field, and crawler tractors from Same, Lamborghini, Landini, Hürlimann, and Claas/Renault, this dual-acting mechanism allows operators to adjust implement pitch angles dynamically from the cabin.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, sealing fluid within the cylinder chambers to maintain the structural rod configuration even under sudden line pressure drops or hydraulic hose ruptures, shielding heavy suspended field implements from accidental dropping. The hardware layout features a symmetrical Category 2 configuration, with standard spherical knuckle joint swiveling ball eyes on both the cylinder base side (tractor linkage) and the rod end side (implement linkage), each machined with a 25.4 mm pin bore hole. The combination of an oversized 70 mm cylinder bore diameter, a high-tensile 35 mm micro-polished chrome rod, and a generous 300 mm stroke provides massive mechanical pushing force along with great long-stroke versatility under tough working open-field or crawler conditions.
Technical Specifications
| Component Classification |
Double-acting hydraulic top link actuator cylinder |
| Brand Compatibility |
Same / Lamborghini / Landini / Hürlimann / Claas (Adaptable) |
| Minimum Length (Retracted) |
600 mm |
| Cylinder Stroke |
300 mm |
| Cylinder Bore Diameter (D) |
70 mm |
| Piston Rod Diameter (d) |
35 mm |
| Piston Rod End Fitting (F) |
Spherical knuckle joint swiveling ball eye Ø 25.4 mm (Cat. 2) |
| Cylinder Base End Fitting (P) |
Spherical knuckle joint swiveling ball eye Ø 25.4 mm (Cat. 2) |
| Hydraulic Port Connection |
3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve) |
| Net Component Weight |
12.17 kg |
| Product Code |
50617 |
Tractor Applications & Compatibility
| Manufacturer |
Compatible Series & Models |
| CLAAS / RENAULT |
ELIOS 240-210 STAGE 3B (A48): Elios 210, Elios 220, Elios 230, Elios 240 |
| HURLIMANN |
PRESTIGE SERIES: Prestige 75 tradition, Prestige 95 tradition
XB SERIES: XB 85, XB 95 |
| LAMBORGHINI |
PREMIUM SERIES: 850 Premium | FORMULA SERIES: Formula 135 |
| LANDINI (Crawlers) |
TREKKER TIER 2 (2003-2007): Trekker 105 F (Tier 2) |
| SAME |
ANTARES SERIES: Antares 100, Antares 110
EXPLORER SERIES: Explorer 70, Explorer 80, Explorer 90 |
