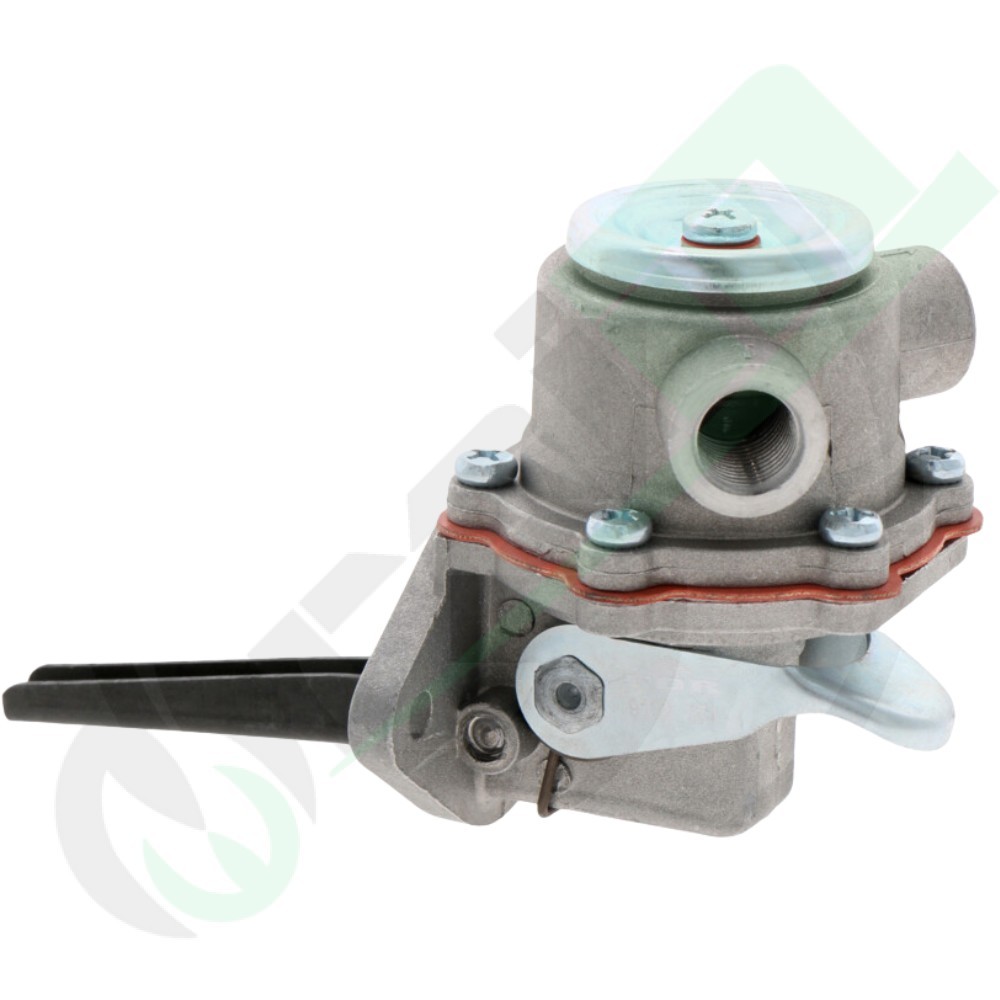

2-Hole Diaphragm Fuel Lift Pump Part Number 38019815 for Case IH Tractors

star star star star star_border
Aftermarket
38019815

The diaphragm fuel lift pump (part number 38019815) is a precision-engineered fuel system component featuring a 2-hole mounting flage with a hole distance of 53 mm and a lever length of 61 mm from the flange to the end. This high-quality replacement pump is designed for Case IH engines (including D-155, D-179, D-206, D-239, D-246, D-268, D-310, DT-239, and DT-358) and fits a wide array of tractor series such as A-Familie, B-Familie, C-Familie, and D-Familie (e.g., 745, 844, 955, 1056, and 1455 XL). It is fully interchangeable with OEM reference codes 73321345, 3132697R92, 3132697R91, and B503521.

Hurry! only 3 items left in stock.
€29.50
Tax included
COUPON
- € 0,59
Final price: € 28,91
Quantity

Last 3 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Diaphragm Fuel Feed Pump (2-Hole) - Part No. 38019815

The diaphragm fuel feed pump (Part Number: 38019815) is a high-precision technical replacement component engineered for Case IH engines and tractors. Built strictly to OEM tolerances, it guarantees a stable and correct fuel flow within the injection system circuit.
Design Details and Mechanical Dimensions
This mechanical version is equipped with a 2-hole mounting flange featuring a hole center-to-center distance of 53 mm. The operating lever reach, measured from the mounting flange surface to the tip of the lever, is exactly 61 mm. These precise geometric dimensions ensure a perfect fit onto the engine block housing, preventing any structural play.
Cross Reference (Original Case IH Part Numbers)
This part replaces or is fully interchangeable with the following OEM reference codes:
  • 73321345
  • 3132697R92
  • 3132697R91
  • B503521
Engine Applications and Series Compatibility
This lift pump is widely utilized across a large fleet of Case IH engines and tractor ranges (including legacy and British builds):
  • Case IH Engines: D-155, D-179, D-206, D-239, D-246, D-268, D-310, DT-239, DT-358.
  • British Range & A Series: 674, 2400, 2500.
  • A-Familie Series: 454, 574.
  • B-Familie Series: 743 XL, 745 S, 745 XL, 844 XL, 845 XL, 856, 856 XL.
  • C-Familie Series: 955, 955 XL, 956, 956 XL, 1055, 1055 XL, 1056, 1056 XL.
  • D-Familie Series: 1255, 1255 XL, 1455, 1455 XL.
Technical Specifications
Part Number 38019815
Flange Configuration 2 mounting holes
Hole Spacing (Center-to-Center) 53 mm
Flange to Lever Tip Distance 61 mm
Mechanical Type Mechanically actuated diaphragm lift pump
