Hydraulic Top Link Cylinder Cat. 2 for New Holland TN, Claas & Zetor Tractors Part Number 50755

star star star star star_border
Aftermarket
50755

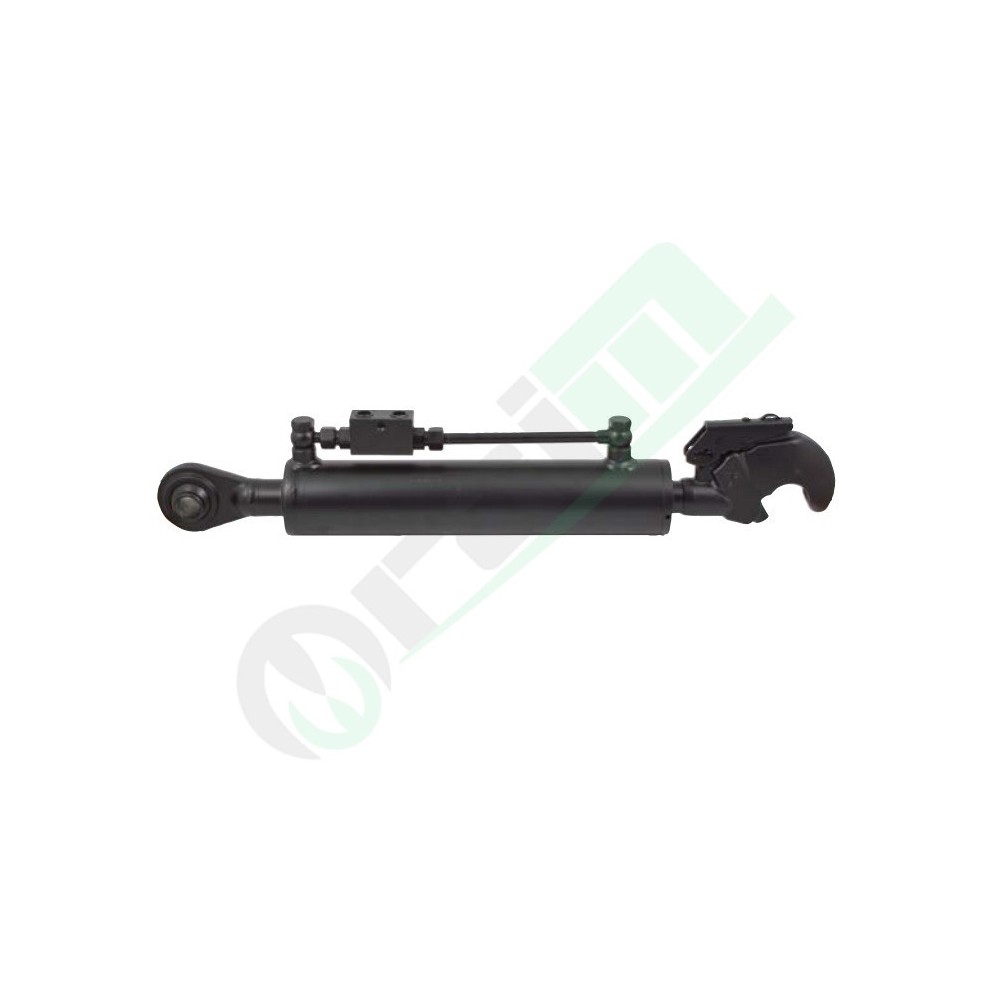

The heavy-duty hydraulic top link cylinder (code 50755) is engineered for agricultural tractor 3-point hitches. It features a minimum length of 580 mm, a stroke of 250 mm, a 70 mm bore (cylinder diameter), a 35 mm rod diameter, and a net weight of 12.67 kg. It comes equipped with a Cat. 2 National quick-release hook on the rod end, a Ø 25.4 mm ball joint on the cylinder base end, and a 3/8" dual pilot check valve. This versatile cylinder is specifically adaptable to New Holland TN series (TN D, TN F, TN N, TN V), Claas/Renault Elios series (210, 220, 230, 240 Stage 3B), and Zetor tractors (Proxima and Proxima Plus series).

Hurry! only 5 items left in stock.
€290.00
Tax included
COUPON
- € 5,80
Final price: € 284,20
Quantity

High availability
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 580x70x35 for Fiat / New Holland - Code 50755

The heavy-duty hydraulic top link cylinder (Product Code: 50755) is a professional-grade hydraulic actuator engineered for precision alignment, real-time geometry adjustment, and secure load retention of three-point linkage implements. Designed to perfectly integrate with the mounting clearances of compact, orchard, and vineyard utility tractors under the Fiat / New Holland TN Series and adaptable to other leading brands, this dual-acting cylinder (net weight 12.67 kg) allows operators to modify implement pitch angles dynamically from the cabin, maximizing field operation accuracy.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, maintaining rod stroke configurations even under sudden hydraulic hose ruptures or line pressure drops, shielding field implements from accidental dropping. The specific hardware layout features a heavy-duty spherical rod eye end with a 25.4 mm pin bore hole on the cylinder base side (tractor linkage), paired with an automatic quick-release catch hook classified under Category 2 National on the rod end side (implement linkage). The combination of a 70 mm cylinder bore diameter, a high-tensile 35 mm micro-polished chrome rod, and a 250 mm stroke provides great mechanical reliability along with high thrust and retraction load parameters, making this link perfectly suited for medium-tonnage agricultural implements performing heavy-duty tasks in narrow rows or specialized orchard environments.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Minimum Length (Retracted) 580 mm
Cylinder Stroke 250 mm
Cylinder Bore Diameter (D) 70 mm
Piston Rod Diameter (d) 35 mm
Piston Rod End Fitting (F) Automatic quick-release latch catch hook - Cat. 2 National
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 25.4 mm
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight 12.67 kg
Product Code 50755
Tractor Applications & Compatibility
Manufacturer  Tractor Series Compatible Models
CLAAS / RENAULT ELIOS Series (A48) Elios 210, Elios 220, Elios 230, Elios 240 (Stage 3B)
NEW HOLLAND TN D Series TN 65D, TN 75D
TN F Series TN 65F, TN 75F, TN 90F
TN N Series TN 65N, TN 75N
TN V Series TN 65V, TN 75V
ZETOR PROXIMA PLUS Proxima plus 8541, Proxima plus 10541
PROXIMA Proxima 6421, Proxima 8441
