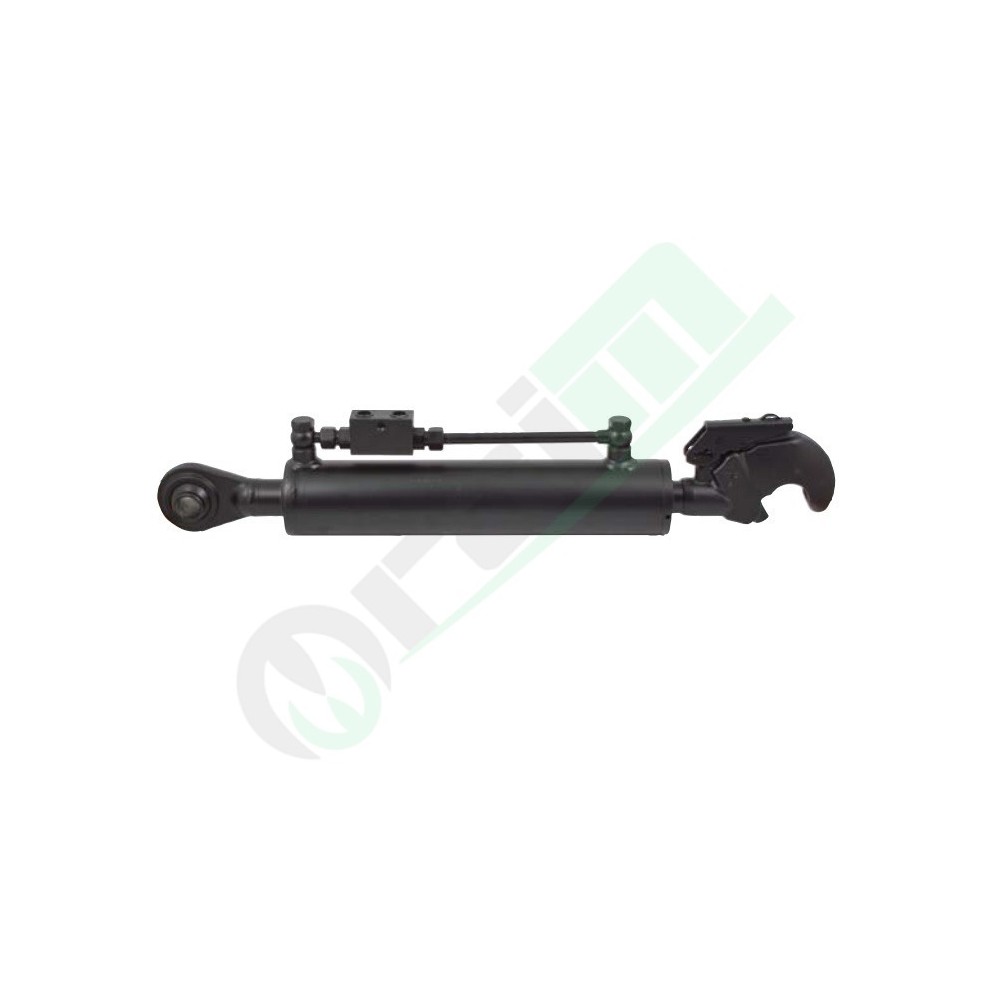

Landini Globus Hydraulic Top Link 550mm Cat. 2 50956 | Raim Store

Hydraulic Top Link Cylinder Cat. 2 for Landini Globus Tractors Part Number 50956

star star star star star_border
Aftermarket
50956

The heavy-duty hydraulic top link cylinder (code 50956) is engineered for agricultural tractor 3-point hitches, specifically adaptable to Landini tractors. It features a minimum length of 550 mm, a stroke of 230 mm, a 60 mm bore (cylinder diameter), a 30 mm rod diameter, and a net weight of 9.6 kg. The rod end comes equipped with a Cat. 2 National quick-release hook, while the cylinder base end features a Ø 19.3 mm ball joint. Complete with a 3/8" dual pilot check valve, it is custom-designed for Landini Globus series tractors manufactured between 1998 and 2004 (models Globus 55, Globus 65, Globus 75, Globus 80).

Hurry! only 1 items left in stock.
€265.00
Tax included
COUPON
- € 5,30
Final price: € 259,70
Quantity

Last 1 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 550x60x30 for Landini - Code 50956

The heavy-duty hydraulic top link cylinder (Product Code: 50956) is a professional-grade hydraulic actuator engineered for precision alignment, real-time geometry adjustment, and secure load retention of three-point linkage implements. Designed to be perfectly adaptable to Landini tractor specifications, this dual-acting cylinder has a net weight of 9.6 kg and allows operators to adjust implement pitch angles dynamically from the cabin, maximizing working field performance.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, maintaining rod stroke configurations even under sudden hydraulic hose ruptures or line pressure drops, shielding field implements from accidental dropping. The specific hardware layout features a heavy-duty spherical rod eye end with a 19.3 mm pin bore hole on the cylinder base side (tractor linkage), paired with an automatic quick-release catch hook classified under Category 2 National on the rod end side (implement linkage). The combination of a 60 mm cylinder bore diameter, a high-tensile 30 mm micro-polished chrome rod, and a 230 mm stroke provides great mechanical reliability along with excellent hydraulic response, making this link perfectly suited for medium-weight agricultural implements.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Brand Compatibility Landini (Adaptable)
Minimum Length (Retracted) 550 mm
Cylinder Stroke 230 mm
Cylinder Bore Diameter (D) 60 mm
Piston Rod Diameter (d) 30 mm
Piston Rod End Fitting (F) Automatic quick-release latcher catch hook - Cat. 2 National
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 19.3 mm
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight 9.6 kg
Product Code 50956
Tractor Applications & Compatibility
Tractor Series Compatible Models
GLOBUS Series (1998 - 2004) Globus 55, Globus 65, Globus 75, Globus 80
: 50956
Hurry! only 1 items left in stock.

Fast and safe shipping: each order is carefully packaged to ensure that the product arrives intact and in perfect condition.

We work with reliable couriers to offer an efficient, traceable and punctual service.

You will receive a link to follow the shipment at every stage, until delivery.

We use quality protective materials and, where possible, eco-friendly packaging.

Our priority is that your purchase arrives without surprises, ready to use.
