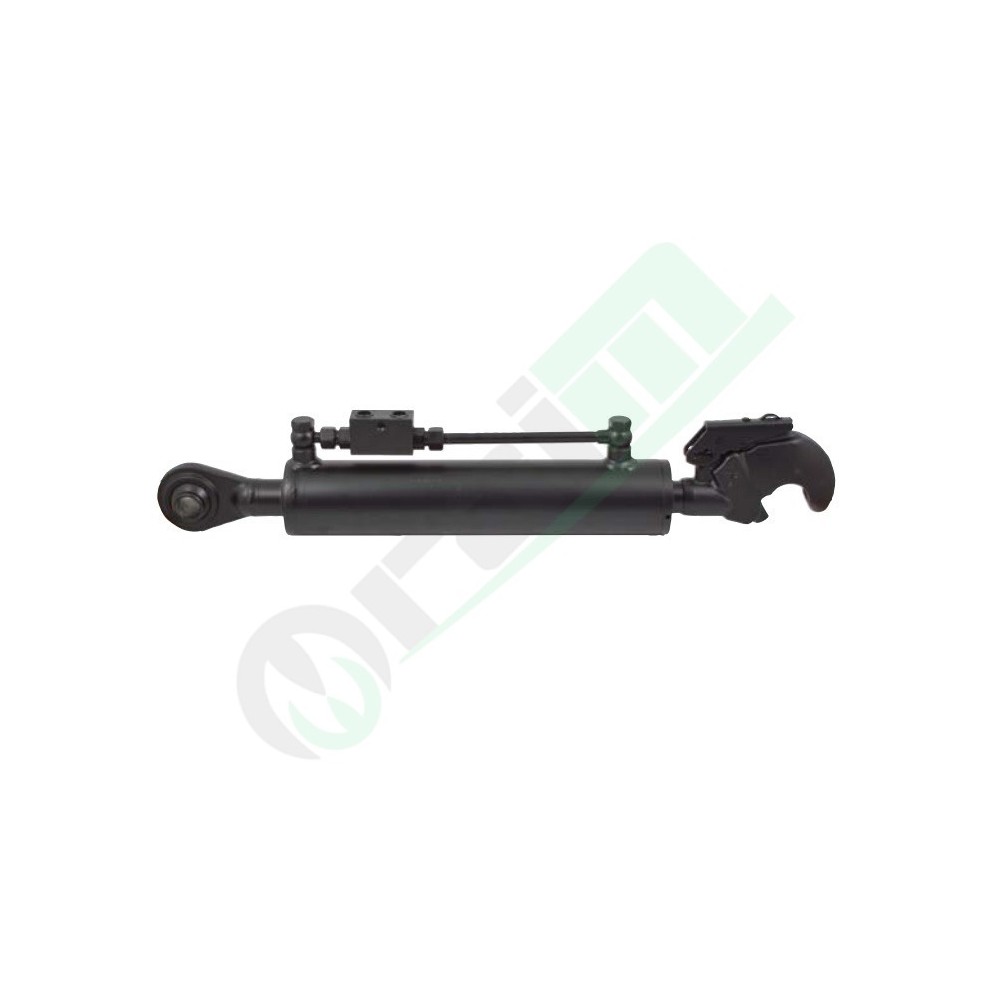

Goldoni Hydraulic Top Link 600mm Cat. 2 Walterscheid 50890 | Raim Store

Hydraulic Top Link Cylinder for Goldoni Tractors Cat. 2 Walterscheid Hook Part Number 50890

star star star star star_border
Aftermarket
50890

The specialized hydraulic top link cylinder (code 50890, adaptable to OEM part numbers 00036490 and 00062190) is custom-engineered for Goldoni tractors. It features a minimum length of 600 mm, a stroke of 238 mm, a 60 mm bore, and a 30 mm rod diameter. The rod end is equipped with a premium Cat. 2 Walterscheid quick-release hook, while the cylinder base end features a Ø 19.3 mm ball joint. Complete with a 3/8" dual pilot check valve, it perfectly fits Goldoni Compact series (614D, 654, 664, 774), Star Quadrifoglio (4000 Q), and Star series (50, 70, 75) tractors.

Hurry! only 3 items left in stock.
€319.00
Tax included
COUPON
- € 6,38
Final price: € 312,62
Quantity

Last 3 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder for Goldoni Tractors - Code 50890

The professional-grade hydraulic top link cylinder (Product Code: 50890), perfectly adaptable to original factory OEM references 00036490 and 00062190, is a high-precision hydraulic actuator engineered specifically for implement alignment and real-time geometry adjustment on compact and orchard tractors under the Goldoni brand. This double-acting cylinder allows operators to modify the implement pitch angle directly from the driver seat, maximizing field operation accuracy and easing row-end turns.
Design Details and Functionality
This hydraulic top link comes fully equipped with an integrated double-acting pilot-operated check valve threaded to 3/8". This device acts as a critical safety mechanism, locking the rod stroke position firmly in place even during sudden hydraulic system pressure drops or fluid hose ruptures. The specific mechanical layout features a swiveling spherical knuckle joint ball with a 19.3 mm bore on the cylinder base side (tractor attachment), combined with an original Walterscheid Category 2 automatic quick-release catch hook on the rod end side (implement attachment) for quick and safe operational connections. The combination of a 60 mm cylinder bore diameter and a high-tensile 30 mm polished rod ensures an excellent balance between force and response speed, making it perfect for specialized orchard, vineyard, and greenhouse machinery.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Goldoni OEM Cross-Reference 00036490, 00062190
Minimum Length (Retracted) 600 mm
Cylinder Stroke 238 mm
Cylinder Bore Diameter (D) 60 mm
Piston Rod Diameter (d) 30 mm
Piston Rod End Fitting (F) Original Walterscheid automatic quick-release catch hook - Cat. 2
Cylinder Base End Fitting (P) Spherical swiveling ball eye joint Ø 19.3 mm
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Product Code 50890
Tractor Applications & Compatibility
Tractor Series Compatible Models
COMPACT Series Compact 614D, Compact 654, Compact 664, Compact 774
STAR QUADRIFOGLIO Series Star 4000 Q
STAR Series Star 50, Star 70, Star 75
