Hydraulic Top Link Cylinder Cat. 2 for Fiat, New Holland, Landini & Same Tractors Part Number 50790

star star star star star_border
Aftermarket
50790

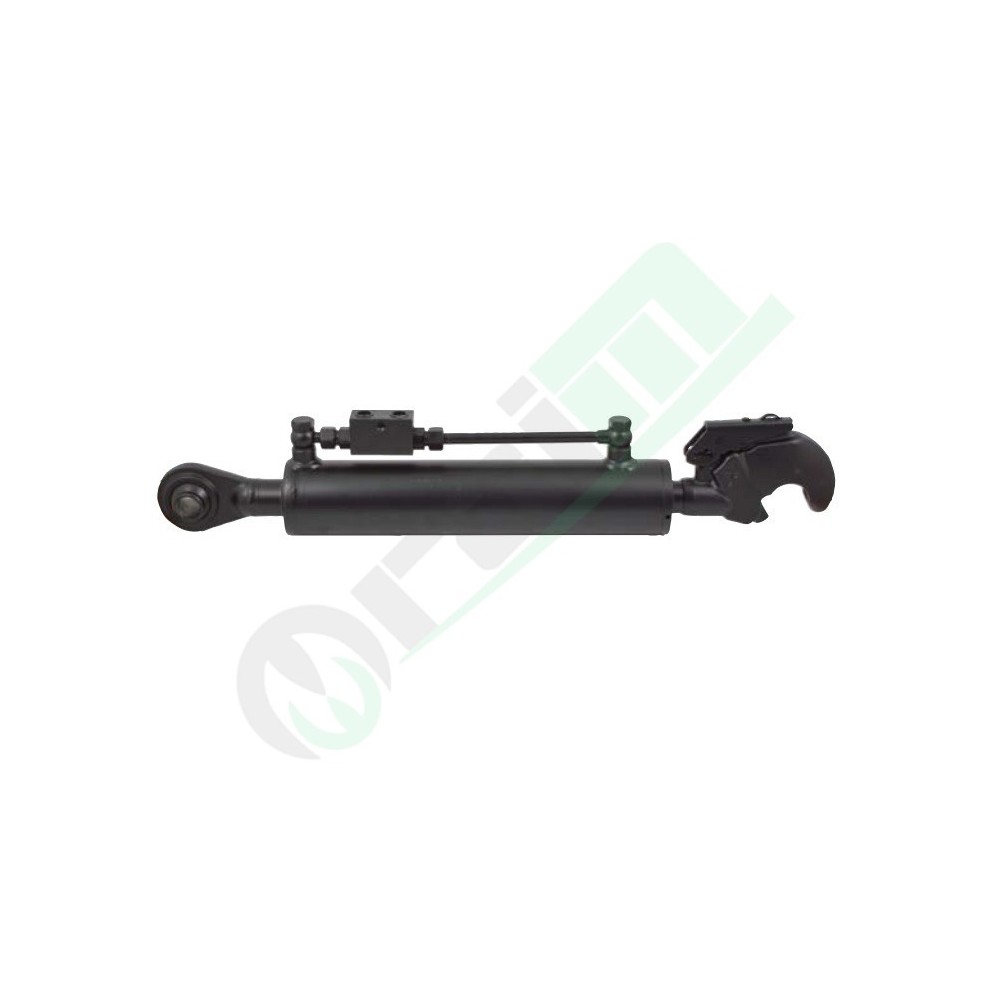

The heavy-duty hydraulic top link cylinder (code 50790) is engineered for agricultural tractor 3-point hitches. It features a minimum length of 620 mm, a stroke of 290 mm, a 70 mm bore (cylinder diameter), a 35 mm rod diameter, and a net weight of 13.43 kg. It comes equipped with a Cat. 2 National quick-release hook on the rod end, a Ø 25.4 mm ball joint on the cylinder base end, and a 3/8" dual pilot check valve. This highly versatile cylinder is adaptable to numerous tractor models, including Fiat (500 & 80 Series), New Holland (L, TL, TLF Series), Landini (Atlas, Ghibli, and Trekker crawler series), and Same Explorer.

Hurry! only 4 items left in stock.
€290.00
Tax included
COUPON
- € 5,80
Final price: € 284,20
Quantity

Last 4 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Hydraulic Top Link Cylinder 620x70x35 with Quick Release Hook - Code 50790

The heavy-duty hydraulic top link cylinder (Product Code: 50790) is a professional-grade hydraulic actuator engineered for precision alignment, real-time geometry adjustment, and secure load retention of three-point linkage implements. Featuring a reinforced dual-acting architecture with a minimum retracted length of 620 mm and a net weight of 13.43 kg, this mechanism allows tractor operators to adjust implement pitch angles dynamically from the cabin, maximizing working field performance and shifting efficiently into safe road transport configurations.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, maintaining rod stroke configurations even under sudden hydraulic hose ruptures or line pressure drops, shielding field implements from accidental dropping. The specific hardware layout features a heavy-duty spherical rod eye end with a 25.4 mm pin bore hole on the cylinder base side (tractor linkage), paired with an automatic quick-release catch hook classified under Category 2 National on the rod end side (implement linkage). The combination of a 70 mm cylinder bore diameter, a high-tensile 35 mm micro-polished chrome rod, and a 290 mm stroke provides great mechanical reliability along with high thrust and retraction load parameters, making this link perfectly suited for a wide range of agricultural implements performing heavy-duty tasks across various tractor applications.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Minimum Length (Retracted) 620 mm
Cylinder Stroke 290 mm
Cylinder Bore Diameter (D) 70 mm
Piston Rod Diameter (d) 35 mm
Piston Rod End Fitting (F) Automatic quick-release latch catch hook - Cat. 2 National
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 25.4 mm
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight 13.43 kg
Product Code 50790
Tractor Applications & Compatibility
Manufacturer  Tractor Series Compatible Models
FIAT 500 Series 570
80 Series 580, 680, 780, 880, 980
L Series L60, L65, L75, L85, L95
LANDINI ATLAS (ATLANTIS) Atlas (Atlantis) 75
GHIBLI Ghibli 90
Crawlers (TREKKER) Trekker 105 F (Tier 2), Trekker new 90 F
NEW HOLLAND TL Series TL 65
TLF Series TL 75F Brasil
SAME EXPLORER Explorer 70, Explorer 80, Explorer 90
