Case IH PJ Series Hydraulic Top Link 650mm 50920 | Raim Store

Hydraulic Top Link Cylinder for Case IH PJ Series Tractors Part Number 50920

star star star star star_border
Aftermarket
50920

The heavy-duty hydraulic top link cylinder (code 50920) features a minimum length of 650 mm, 395 mm stroke, 60 mm bore, and 30 mm rod (weight 10.1 kg). It is configured with dual-size connections: a Ø 19.3 mm rod ball joint, a Ø 25.4 mm cylinder ball joint, and a 3/8" check valve. This cylinder is engineered as a precise fit for Case IH PJ Series orchard and vineyard tractors (models PJ 65, PJN 75, and PJV 75).

Out of Stock
€245.00
Tax included
COUPON
- € 4,90
Final price: € 240,10
Quantity

Processing in approximately 2-3 working days
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

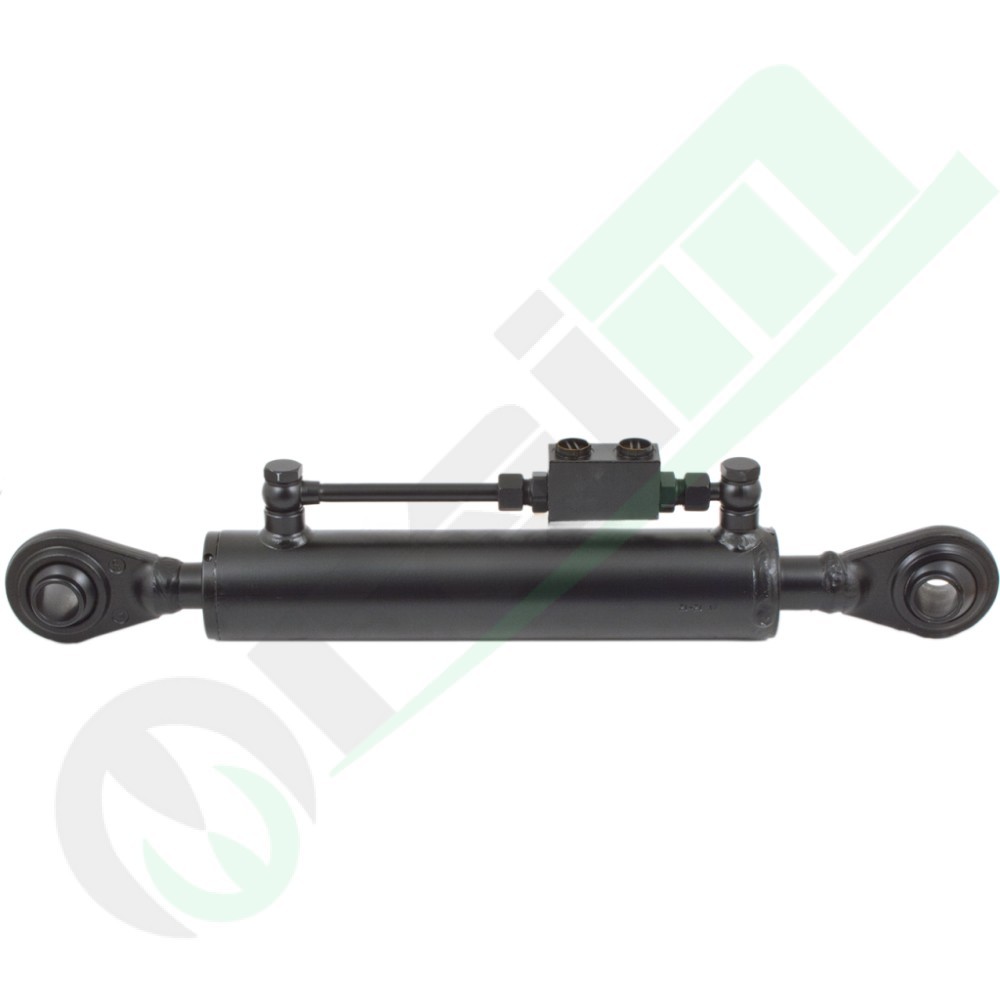

Hydraulic Top Link Cylinder 650x60x30 for Case IH - Code 50920

The heavy-duty hydraulic top link cylinder (Product Code: 50920) is a professional-grade hydraulic actuator engineered for precision alignment, real-time geometry adjustment, and secure load retention of three-point linkage implements. Calibrated to match the technical linkage layout of Case IH specialized utility tractors, this dual-acting cylinder features a net weight of 10.1 kg and a minimum retracted length of 650 mm, allowing operators to adjust implement pitch angles dynamically from the cabin.
Design Details and Functionality
This hydraulic top link comes fully equipped with a standard dual-pilot check safety valve threaded to 3/8". The check valve provides a robust mechanical locking force, sealing fluid within the cylinder chambers to maintain the structural rod configuration even under sudden line pressure drops or hydraulic hose ruptures, shielding suspended field implements from accidental dropping. The specific hardware layout features a staggered, asymmetrical dual-swivel configuration: a standard Category 2 spherical knuckle joint with a 25.4 mm pin bore on the cylinder base side (tractor linkage), paired with a smaller 19.3 mm pin bore swiveling ball eye on the rod end side (implement linkage). The combination of a 60 mm cylinder bore diameter, a high-tensile 30 mm micro-polished chrome rod, and a generous 395 mm stroke provides exceptional mechanical reliability along with great long-stroke versatility under tough working field conditions.
Technical Specifications
Component Classification Double-acting hydraulic top link actuator cylinder
Brand Compatibility Case IH (Adaptable)
Minimum Length (Retracted) 650 mm
Cylinder Stroke 395 mm
Cylinder Bore Diameter (D) 60 mm
Piston Rod Diameter (d) 30 mm
Piston Rod End Fitting (F) Spherical knuckle joint swiveling ball eye Ø 19.3 mm
Cylinder Base End Fitting (P) Spherical knuckle joint swiveling ball eye Ø 25.4 mm (Cat. 2)
Hydraulic Port Connection 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight 10.1 kg
Product Code 50920
Tractor Applications & Compatibility
Tractor Series Compatible Models
CASE IH PJ SERIES PJ 65, PJN 75, PJV 75
: 50920
