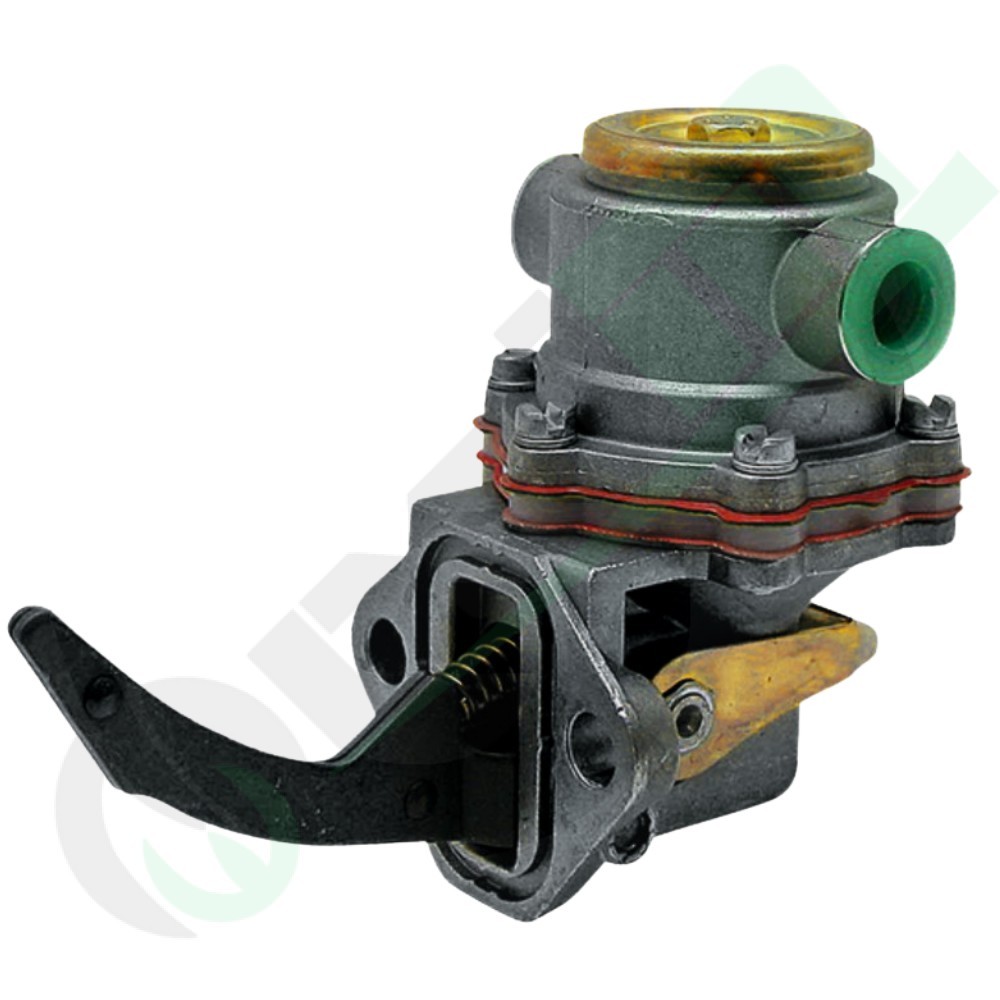

Diaphragm Fuel Pump 45 mm 38026251 | Raim Store

2-Hole Diaphragm Fuel Lift Pump Part Number 38026251 for Same, Lamborghini, Deutz-Fahr, and Case IH

star star star star star_border
Aftermarket
38026251

The diaphragm fuel lift pump (part number 38026251) is a high-performance mechanical fuel system component featuring a 2-hole mounting flange with a hole spacing of 45 mm and a lever length of 67 mm from the flange to the end. This replacement pump is engineered for Perkins (1000.3, 1000.4) and Same (1000.3, 1000.6) engines. It fits an extensive range of agricultural machinery, including SDF group tractors such as Same (Antares, Argon, Dorado, Explorer, Frutteto, Laser, Silver, Titan), Lamborghini (CF series), Deutz-Fahr (Agrofarm C series), and Case IH (21 and PJ series). It is fully interchangeable with OEM reference codes 7.02242.56.0, 2.4519.310.0, 2.4519.300.0, and 1966518C1.

Hurry! only 6 items left in stock.
€22.00
Tax included
COUPON
- € 0,44
Final price: € 21,56
Quantity

High availability
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Diaphragm Fuel Feed Pump (2-Hole) - Part No. 38026251

The diaphragm fuel feed pump (Part Number: 38026251) is a high-precision mechanical fuel delivery component engineered to meet the stringent technical requirements of Same and Perkins engines. This part ensures an optimal and steady fuel flow to the injection system, maximizing the engine's operational efficiency.
Design Specifications and Mechanical Reach
This mechanical configuration features a 2-hole mounting flange with a hole spacing measurement of 45 mm. The mechanical operating lever reach, measured from the base of the mounting flange to the very tip of the lever, is exactly 67 mm. Adhering strictly to these geometric dimensions ensures correct fitment and eliminates mechanical structural play.
Cross Reference (Original Equipment Codes)
This part replaces or is fully interchangeable with the following OEM reference codes from SDF Group and partners:
  • SDF (Same, Deutz, Lamborghini): 2.4519.310.0, 2.4519.300.0
  • Case IH / Pierburg: 7.02242.56.0, 1966518C1
Engine Applications and Model Compatibility
The extensive cross-compatibility of this lift pump spans across multiple tractor lines and engines:
  • Engine Specifications: Same 1000.3, Same 1000.6, Perkins 1000.3, Perkins 1000.4.
  • SAME: Antares (100, 110, 130, II), Argon (50, 55 F, 60, 65 F, 70, 75 F), Aster (60, 70), Dorado (55, 60, 65, 70, 75, 85), Explorer / Explorer II / Explorer III / C / Special (50 to 110 Tier 3 range), Frutteto / Frutteto II (60, 75, 85), Golden (60, 65, 75, 85), Laser (110, 125, 130, 150), Rock (55, 60, 70), Rubin (120 to 200 series, including Galileo), Silver (80, 90, 100, 110, 130, 160, 180), Titan / SuperTitan (145, 150, 160, 165, 190), Vigneron (62, 75).
  • DEUTZ-FAHR: Agrofarm C Series (75 C, 80 C, 85 C, 95 C).
  • LAMBORGHINI: CF Series (CF.78, CF.88, CF.98).
  • CASE IH: 21 Series (2120 to 2150 Pro builds), PJ Series (PJ, PJN, PJV 55, 65, 75 models).
Technical Specifications
Part Number 38026251
Flange Configuration 2 mounting holes
Hole Spacing (Center-to-Center) 45 mm
Flange to Lever Tip Distance 67 mm
Mechanical Type Mechanically actuated diaphragm lift pump
: 38026251
