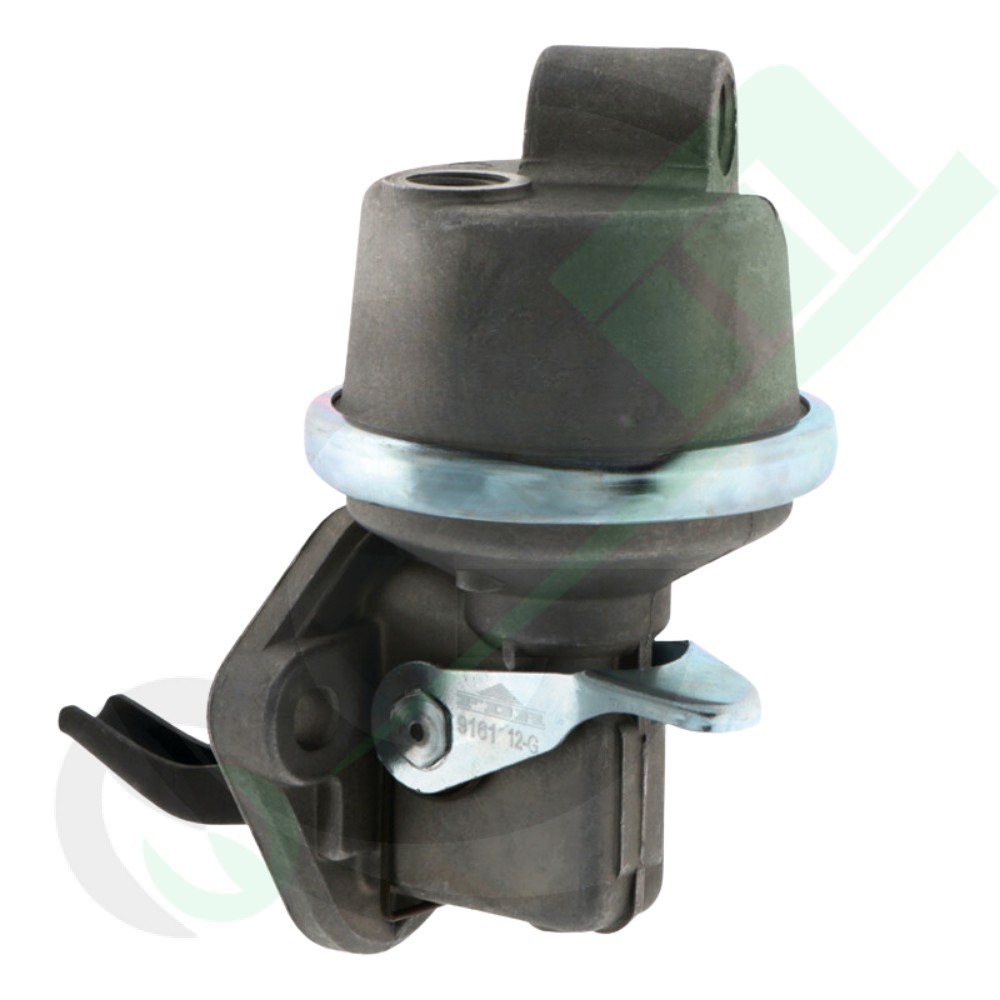

Mechanical Diaphragm Fuel Lift Pump for Case IH Tractors and Cummins Engines Part 3802660

star star star star star_border
Aftermarket
3802660

The mechanical diaphragm fuel lift pump (part number 3802660) is a 2-hole mount lift pump engineered for Cummins engines (4-390, 6-590, 6T-590, 6TA-590) and Case IH agricultural machinery. It features a bolt hole distance of 44 mm and a lever operating length of 55 mm from the mounting flange. Supplied complete with the sealing gasket, it fits Case IH 96 Series, 1000 Series, Maxxum (5120-5250), and XT models.

Hurry! only 3 items left in stock.
€27.50
Tax included
COUPON
- € 0,55
Final price: € 26,95
Quantity

Last 3 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Diaphragm Fuel Lift Pump for Cummins and Case IH Engines - Code 3802660

The heavy-duty mechanical diaphragm fuel lift pump (Product Code: 3802660) is a precision-engineered powertrain component designed to secure a continuous, stable fuel flow toward the core injection loop. Tailored specifically for high-performance industrial and agricultural heavy-duty engine builds, this lifter pump is distinguished by its robust structural composition and absolute operational reliability under extreme mechanical stress and high thermal gradients. The assembly is delivered complete with its corresponding sealing interface gasket to guarantee a perfectly flush, leak-free installation.
Design Details and Geometric Dimensions
This mechanical lift pump is manufactured from a high-strength alloy body that provides advanced defense against hydrocarbon corrosion and harsh weather degradation in fields and worksites. The installation interface features a standardized 2-hole mounting flange engineered to secure perfect seating alignment on the engine block. The center-to-center distance between the mounting holes is precisely 44 mm, while the longitudinal development of the mechanical lever arm—measured straight from the flange seating face to the terminal lever tip—extends to 55 mm. The internal diaphragm is constructed from next-generation high-flexibility elastomers that retain their material memory and priming characteristics over extended duty cycles, preventing premature structural splitting and ensuring optimal low-pressure fuel stabilization.
Technical Specifications
Component Classification Mechanical diaphragm fuel lift pump / low-pressure transfer pump
Flange Layout Standard 2-hole anchoring pattern
Hole Center-to-Center Distance 44 mm
Mechanical Lever Extension 55 mm (from mounting flange face to tip of lever)
Hardware Scope Included Delivered complete with engine-to-flange pre-shaped interface sealing gasket
Original Equipment (OE) Cross References CASE IH: I84142216, 84142216, J928143, J904374
Product Reference Code 3802660
Application Fleet & Engine Compatibility
Manufacturer / Fleet Series Target Application Suitability and Engine Models
Cummins Power Units Cummins 4-390, Cummins 6-590, Cummins 6T-590, Cummins 6TA-590
CASE IH - 96 Series 1896, 2096
CASE IH - 1000 Series 1840, 1845
CASE IH - Maxxum Series Maxxum 5120, Maxxum 5130, Maxxum 5140, Maxxum 5150, Maxxum 5220, Maxxum 5230, Maxxum 5240, Maxxum 5250
CASE IH - XT Series (Skid Steers) 40XT, 85XT, 90XT, 95XT
: 3802660
