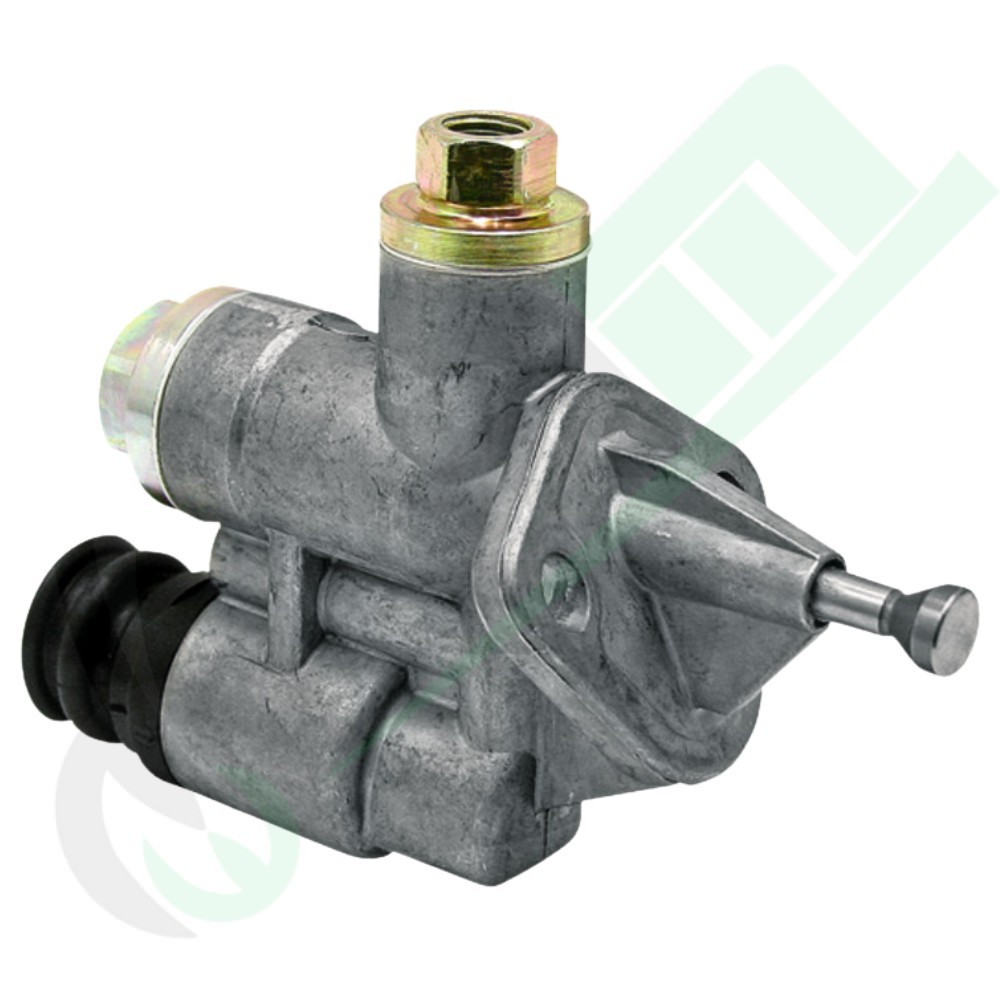

Mechanical Diaphragm Fuel Lift Pump for Case IH Tractors and Cummins Engines Part 38002493

star star star star star_border
Aftermarket
38002493

The mechanical diaphragm fuel lift pump (part number 38002493) is a 2-bolt mount lift pump engineered for Cummins engines (6T-590, 6TA-590) and Case IH agricultural machinery. It features a bolt hole distance of 45 mm, a 57 mm pushrod length from the mounting flange to the actuator tip, and 1/4" - 18 NPTF threaded ports. This high-quality replacement pump fits Case IH MX Maxxum (MX100-MX170), AF Axial-Flow, CF, SP, and SPX series.

Hurry! only 3 items left in stock.
€62.90
Tax included
COUPON
- € 1,26
Final price: € 61,64
Quantity

Last 3 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Diaphragm Fuel Lift Pump for Cummins and Case IH Engines - Code 38002493

The heavy-duty mechanical diaphragm fuel lift pump (Product Code: 38002493) is a precision-engineered structural ricambio designed to secure a continuous, stable fuel flow toward the primary high-pressure injection circuit. Developed specifically for mid-to-high displacement industrial internal combustion engines and heavy-duty agricultural machinery, this lift pump maintains constant pressure stability. By preventing priming drops, it secures unhindered fuel feed distribution and safeguards drivetrain reliability under challenging open-field workloads.
Design Details and Geometric Dimensions
This low-pressure mechanical transfer pump features a high-density alloy housing built to withstand substantial structural load parameters and resist hydrocarbon corrosion inside the engine bay. The installation layout incorporates a standardized 2-hole mounting flange configured to secure perfect, vibration-free alignment on the engine monobloc. The center-to-center interaxis distance between the anchoring holes is precisely 45 mm, while the longitudinal extension of the mechanical actuator lever—measured straight from the mounting flange face to the terminal tip of the plunger spintore—reaches 57 mm. The fluid interface is machined with robust 1/4" - 18 NPTF threaded ports to secure stable, leak-free line couplings. Its internal diaphragm matrix is composed of advanced high-elasticity elastomers that retain material memory, preventing premature structural splitting caused by severe thermal cycles.
Technical Specifications
Component Classification Mechanical diaphragm fuel lift pump / low-pressure transfer pump
Flange Layout Standard 2-hole anchoring pattern
Hole Center-to-Center Distance 45 mm
Mechanical Plunger Extension 57 mm (from mounting flange face to tip of actuator plunger)
Hydraulic Port Thread Spec 1/4" - 18 NPTF
Original Equipment (OE) Cross References CASE IH: I87473338, 87473338, 87473338AM, J936317
Product Reference Code 38002493
Application Fleet & Engine Compatibility
Manufacturer / Fleet Series Target Application Suitability and Fleet Equipment
Cummins Power Units Cummins 6T-590, Cummins 6TA-590
CASE IH - Axial-Flow Series Combine Harvesters: 1680, 1688, 2144, 2166, 2188, 2344, 2365, 2366, 2388
CASE IH - CF Series Combine Harvesters: CF 60, CF 70, CF 80
CASE IH - MX Maxxum Series Agricultural Tractors: MX 100 Maxxum, MX 110 Maxxum, MX 120 Maxxum, MX 135 Maxxum, MX 150 Maxxum, MX 170 Maxxum
CASE IH - SP Series Self-Propelled Sprayers: 2500SP, 3000SP
CASE IH - SPX Series Self-Propelled Sprayers: SPX3150, SPX3185 (Production window intervals 5/99-8/02)
: 38002493
