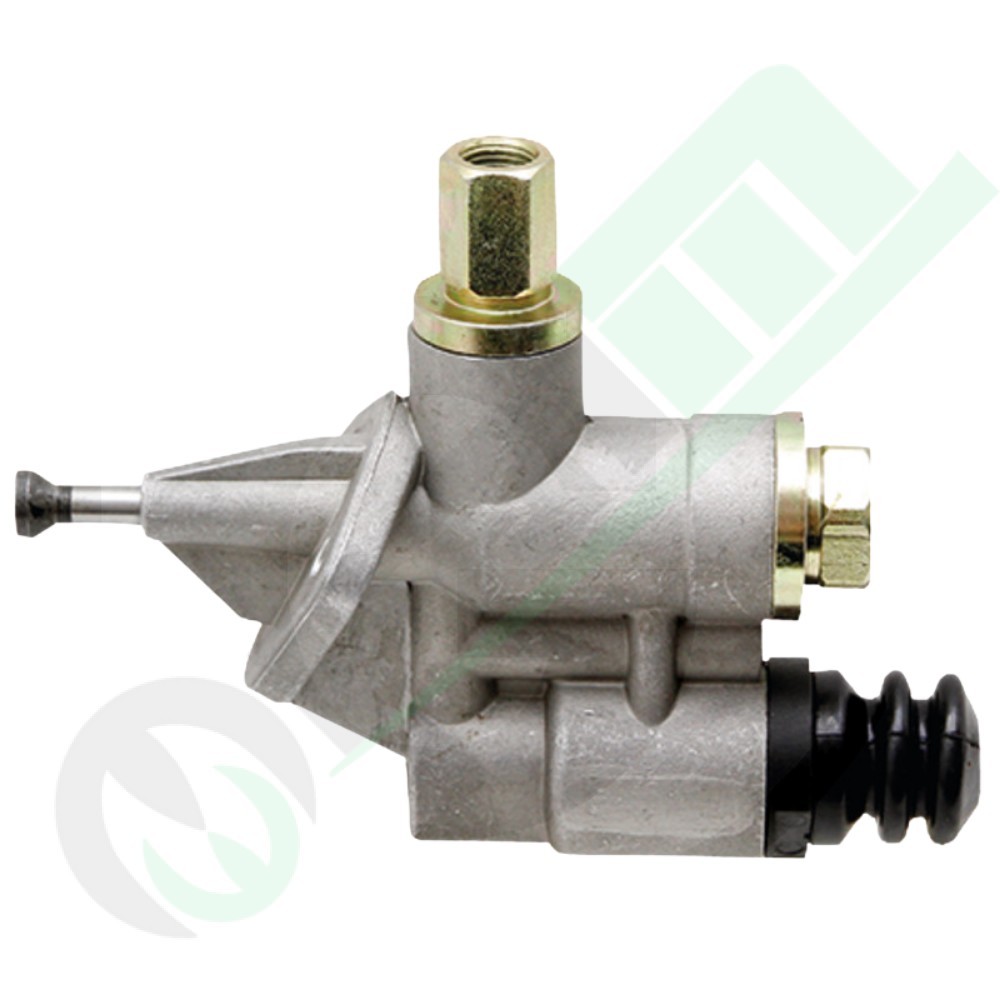

Case IH Cummins Mechanical Fuel Lift Pump 38002494 | Raim Store

Mechanical Diaphragm Fuel Lift Pump for Case IH Tractors and Cummins Engines Part 38002494

Reference : 38002494

The mechanical diaphragm fuel lift pump (part number 38002494) is a 2-bolt mount lift pump engineered for Cummins heavy-duty engines (6T-830, 6TA-830) and Case IH agricultural machinery. It features a bolt hole center distance of 45 mm, a 56 mm operating pushrod length from the mounting flange, and 1/4" - 18 NPTF threaded ports. This fuel pump fits Case IH Magnum (7110-7250), Steiger, AF Axial-Flow, and XT series.

Hurry! only 2 items left in stock.

€87.90

Tax included

Quantity

Last 2 items

Add to Compare

Add to Wishlist

Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Guarantee safe checkout

Diaphragm Fuel Lift Pump for Cummins and Case IH Engines - Code 38002494

The heavy-duty mechanical diaphragm fuel lift pump (Product Code: 38002494) is a precision-engineered powertrain component designed to secure a continuous, stable low-pressure fuel transfer toward the main high-pressure injection loop. Tailored specifically for high-capacity industrial and agricultural heavy-duty engine builds, this lifter pump maintains exceptional fluid flow constants. Built to withstand extensive dynamic stresses, it prevents fuel starvation and isolates delivery drops under the most demanding field operations and harvesting workloads.

Design Details and Geometric Dimensions

This mechanical lift pump features a reinforced alloy housing designed to deliver advanced shielding against hydrocarbon corrosion and high thermal gradients inside the engine bay. The installation profile incorporates a standardized 2-hole mounting flange configured to secure perfect, vibration-free alignment on the engine block. The center-to-center interaxis distance between the anchoring points is precisely 45 mm, while the longitudinal extension of the mechanical actuator rod—measured directly from the mounting flange face to the terminal rod tip—reaches 56 mm. The hydraulic interface is equipped with robust 1/4" - 18 NPTF threaded ports to secure perfectly leak-free fuel line couplings. The internal diaphragm matrix is constructed from advanced high-elasticity elastomers that retain material memory, preventing premature structural splitting and optimizing priming reliability.

Technical Specifications

Component Classification	Mechanical heavy-duty diaphragm fuel lift pump / transfer pump
Flange Layout	Standard 2-hole anchoring pattern
Hole Center-to-Center Distance	45 mm
Mechanical Rod Extension	56 mm (from mounting flange face to tip of actuator rod)
Hydraulic Port Thread Spec	1/4" - 18 NPTF
Original Equipment (OE) Cross References	Pierburg: 7.02242.44.0 \| CASE IH: I87473337, 87473337, J936318, J917998
Product Reference Code	38002494

Application Fleet & Engine Compatibility

Manufacturer / Fleet Series	Target Application Suitability and Engine Models
Cummins Power Units	Cummins 6T-830, Cummins 6TA-830
CASE IH - 1000 Series	1840
CASE IH - Axial-Flow Combines	1660, 1666, 1670, 1680, 2166
CASE IH - Magnum Series	7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250
CASE IH - Steiger Series (Articulated)	9110, 9130, 9210, 9230, 9240, 9310, 9330 (Including production intervals 12/86-6/89 and 7/89-8/90)
CASE IH - XT Series (Skid Steers)	85XT, 90XT, 95XT
